This product has been discontinued by the manufacturer. Please contact us to find a replacement.

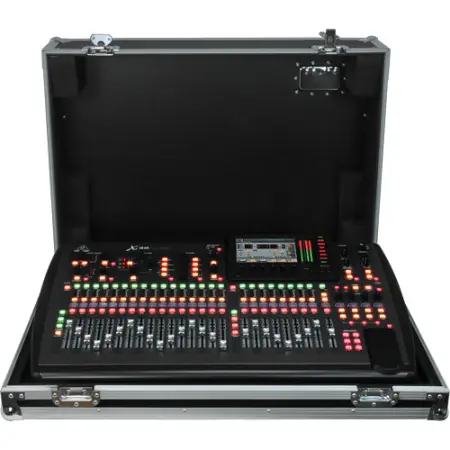

The Behringer X32-TP is designed for live sound reinforcement applications on the road. The package consists of Behringer's flagship X32 40-input, 25-bus digital mixing console pre-packaged in a touring-grade road case specifically designed for the device.
This 40-channel mixing console features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for fine tuning the live mix.
The Behringer X32-TP mixing console has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The Behringer X32-TP mixing console also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.
The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs. The Behringer X32-TP 40-channel mixing console also has 6 mute groups and 8 DCA groups on 8 dedicated faders for easy access.
The intuitive interface offers a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The Behringer X32-TP mixing console has 25 motorized 100mm faders for extensive user-definable control.
The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.
Other features of the Behringer X32-TP mixing console includes networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure for professional use. Order this 40-channel mixing console today.
Touring Grade Road Case
Protects the mixing console while traveling and includes built in handles, latches, and stackable corners for placing the case on top of the lid
Networking
A pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability to be ready for use with 48-channel digital snakes for ultra-low jitter and latency
Expansion Port
The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed
Display
The high-resolution 7" color TFT display has associated controls and individual RGB backlit graphic LCDs on every channel
Faders
There are 25 motorized 100mm faders for extensive user-definable control
Connections
A USB flash connector provides file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI
Delays
Adjustable line delays are available on all of the physical inputs and outputs
Remote Editor Software
The included remote editor software lets you coordinate networked remote control or show setups via USB or Ethernet. You can even conveniently handle the scene management duties of complex productions
Behringer X32-TP Specifications:
Input Channels 32 input channels, 8 aux channels, 8 fx return channels
Effects Engine
8 x true stereo
16 x mono
Scene File Memory
100 recall scenes, including preamp and fader settings
Bit Depth
40-bit floating point
Audio Converters
24-bit @ 44.1/48 kHz, 114 dB dynamic range
I/O Delay
0.8 mS, input to output console latency
1.1 mS, stagebox in -> console -> stagebox out network latency
Connectors
Mic Preamps
32 x XLR inputs, programmable mic preamps
Talkback Mic Input
1 x XLR
RCA
2 x input (1 x L/R)
2 x output (1 x L/R)
Line Outputs
16 x XLR
Monitor Outputs
2 x XLR
2 x 1/4" TRS balanced
AUX Inputs
6 x 1/4" TRS balanced
AUX Outputs
6 x 1/4" TRS balanced
Headphone Outputs
2 x 1/4" TRS stereo
AES/EBU Audio Output
1 x XLR digital
AES50 Ports
2 x SuperMAC
Expansion Port
1 x 32-channel I/O card, various standards available
P-16 Connector
1 x Ultranet (no power supplied)
MIDI In/Out
1 x MIDI In
1 x MIDI Out
USB Ports
1 x USB type A - audio and data export/import
1 x USB type B - for remote control
Ethernet Connector
1 x RJ45 - for remote control
Microphone Inputs
Designer
MIDAS
THD + Noise
< 0.006% A-weighted (20 dB gain, 0 dBu out)
Input Impedances
5k? unbalanced
10k? balanced
Maximum Input Level
+23 dBu without clipping
Phantom Power
+48V, switchable per channel
Equivalent Input Noise
-128 dBu (input shorted)
CMRR
> 70 dB @ 20 dB gain (typical)
> 80 dB @ 40 dB gain
Performance
Frequency Range
10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
Dynamic Range
Analog: 106 dB, typical
A/D: 109 dB, typical
D/A: 108 dB
Cross Talk
100 dB rejection @ 1 kHz, adjacent channels
Output Level
XLR:
+4 dBu, nominal
+21 dBu, maximum
Output Impedance
XLR:
75?
Input Impedance
1/4" TRS:
40k? balanced, 20k? unbalanced
Maximum Input Level
1/4" TRS:
+16 dBu without clipping
Nominal Output Level
1/4" TRS:
+4 dBu
Output Impedance
1/4" TRS:
300? balanced, 150? unbalanced
Headphone Output Level
+25 dBm (stereo)
Headphone Output Impedance
40?
Residual Noise
-87 dBu A-weighted
Display
Screens
Main screen: 7", 800 x 480, 262k color TFT
Channel LCD screen: 128 x 64, LCD with RGB color backlight
Metering
24-segment (-57 dB to clip)
Power
Power Supply
Switch-mode autorange 100 to 240V (50/60 Hz)
Power Consumption
120W
