JTS IN164R/IN264TB + CM-501 Lavalier Microphone System
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

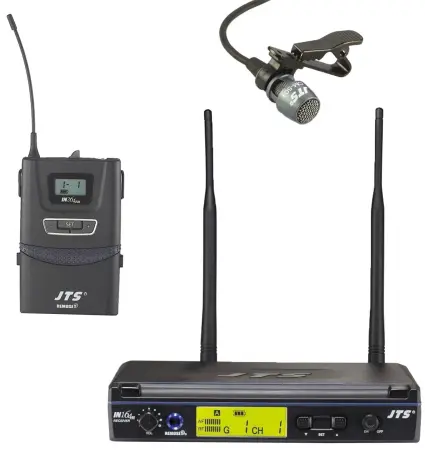

System includes:
(1) JTS IN164R
(1) JTS IN264TB
(1) JTS CM-501

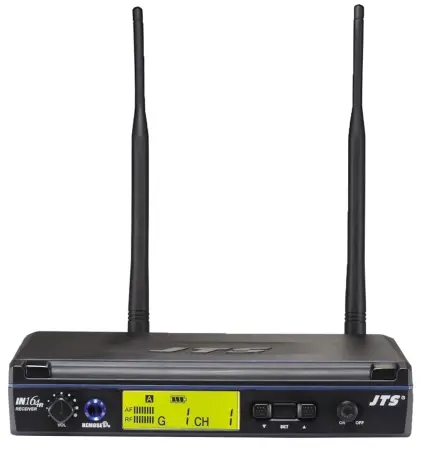

--IN164R--
The JTS IN SERIES UHF Diversity Wireless System features REMOSET the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.
* REMOSET : Uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.
* 200~480 meter operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.
* IN164R is single channel version of IN264R.
* IN164R with band width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.

Specifications:

Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 500mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 210mm(W) * 40mm(H) * 165.5mm(D)
collapse


--IN264TB--
UHF PLL Body-Pack Transmitter

* Phase-locked Loop (PLL) synthesized tuner.
* Powered by 2 x AA batteries with 12 hrs. average battery life.
* Equipped with 4 Pin Mini XLR connector.
* Heavy Duty plastic case.
* LCD display with channel and battery life indicator, ID number.
* The “lock-on” function prevents tampering and RF interruption.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Compatible with Guitar cable and wireless instrument microphones.

Specifications:

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
Controls ID Number
Power On/Off, AF Level,
Frequency Up/Down, PAD, Gain Control, ID Pairing
Lock-on Mode
Output connector 4P mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2

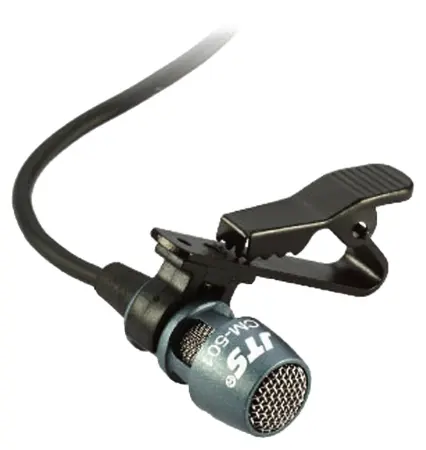

--CM-501--
Condenser Lavaliere Microphone

Uni-direction for high-quality voice pick-up.
* Wide dynamic range and frequency response for excellent sound reinforcement.
* Small size for minimum visibility.
* Together with clip for easy attaching to a tie, lapel, dress etc.

SPECIFICATIONS:

Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/μbar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)*  26.4mm(H)
Net Weight 21.5g

JTS Professional IN264r/in264tb system (JTS wireless lavalier mic system)
