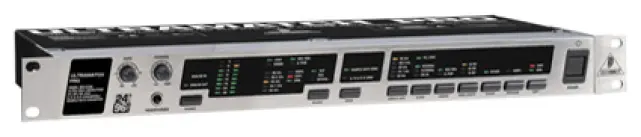

Behringer SRC2496

Behringer SRC2496 (Behringer SRC 2496)

ULTRAMATCH PRO SRC2496

Ultra High-Resolution 24-Bit/96 kHz A/D-D/A & Sample Rate Converter

High-end 24-bit/96 kHz A/D and D/A converters for ultimate signal purity
Converts any sample rate between 31 and 100 kHz into 32, 44.1, 48, 88.2 or 96 kHz sample rates
Flexible format conversion between AES/EBU and S/PDIF (coaxial or optical)
Ultra high-quality signal output with 16-, 20- or 24-bit resolution
Universal sample rate synchronization via wordclock or digital input
Allows parallel A/D and D/A conversion at identical sample rate
Precise metering for input/output signal as well as powerful headphone monitoring
Dithering automatically adapted for word length conversion
Allows direct manipulation of emphasis bits and other significant, digitally transmitted information in order to record virtually any audio signal
High-precision quartz clock generator removes jitter and corrects off-tune, incorrect sample rates
Extremely fast tracking supports varispeed applications
Self-adjusting anti-aliasing filter with exceptionally steep edge
Consumer devices (e.g. DAT recorders) can be synchronized with the studio clock
All three outputs (XLR, RCA, optical) simultaneously operational (splitter)
Inputs separately selectable (patchbay functionality)
All digital inputs/outputs balanced and galvanically isolated
All analog inputs/outputs servo-balanced
Conceived and designed by BEHRINGER Germany

The ULTRAMATCH PRO SRC2496 is the successor of the renowned SRC2000, and enables you to transfer digital audio signals between devices with different sample rates, formats or interfaces and remove dropouts or jitter from digital media. Simultaneously operable outputs offer splitter functionality. The 24-bit/96 kHz compatible SRC2496 now offers high-quality 24-bit/96 kHz A/D and D/A conversion. The ULTRAMATCH PRO SRC2496 is as such perfectly suitable for studio work. Format conversion between AES/EBU and S/PDIF (coaxial or optical) is provided for, with high-quality signal output with 16-, 20- or 24-bit resolution. Universal sample rate synchronization is done via wordclock or digital input. XLR, RCA and optical outputs are simultaneously operational with separately selectable inputs, turning this unit into a digital patch bay.
