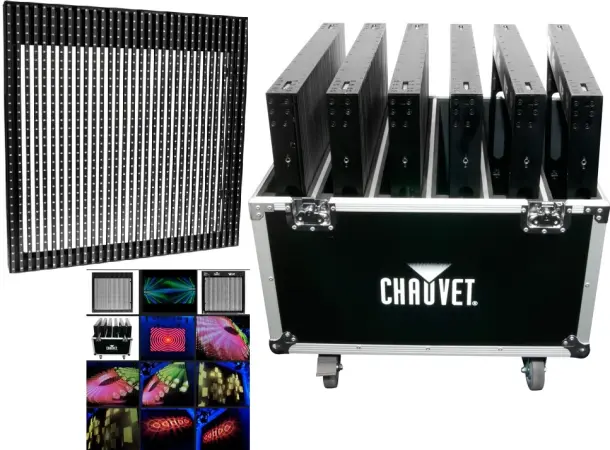

Chauvet DJ MVP18X6 MVP-18 6-Pack with Road Case
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
6x Chauvet MVP 18 LED Video Wall Panel
1x 6pc Road Case
All Data/Power Cables
The Chauvet MVP 18 is a highly versatile, LED modular video panel with a
pixel pitch of 18.75mm and a 38% transparency which adds dimension to the show
by allowing lighting and the elements to easily pass through.
Tri-color SMD LEDs, a wide-viewing angle and color consistency provide better
image quality.
Every panel in the MVP Series is easily interlocked to allow for creative,
mixed-resolution displays.
Lightweight and modular system for medium-resolution graphics
Easy installation and connectivity using Neutrik powerCON and eatherCON
connectors
Perfect product for long term installation
Interchangeable with the MVPâ„¢ 12 and MVPâ„¢ 37.5 panels to create large wall
designs
Tri-color SMD LEDs provide better image quality and wider viewing angle
Pixel pitch: 18.75 mm
Pixels / screen: 32 x 32 (1,024 total)
Light source: Tri-color SMD LED
Display refresh rate: 2,000 Hz (flicker-free)
Video refresh rate: 60 Hz
IP rating: IP54
Pixel density: 2,844 / m2
Viewing angle: 140°
Luminance: 3,100 NIT
Mounting design: Modular (horizontal and vertical)
Housing material: Aluminum alloy (lightweight)
Transparency: 38%
Color temperature: 6,500~9,500 K
Color wavelengths:
Red: 622~627 nm
Green: 520~525 nm
Blue: 465~470 nm
Power and current:
120 V, 60 Hz - 120 W; 1.06 A operating
208 V, 60 Hz - 139 W; 0.68 A operating
230 V, 50 Hz - 144 W; 0.67 A operating
Power linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
Input voltage: 100~240 VAC, 50/60 Hz
Weight: 15.5 lbs (7 kg)
Size: 23.6 x 23.6 x 2.4 in (600 x 600 x 60 mm)
