Chauvet DJ Wedge Tri
DISCONTINUED
1 Video
2 Photos
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

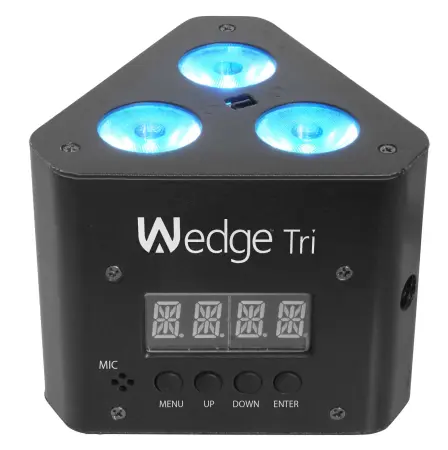

Chauvet Wedge Tri
The Chauvet Wedge Tri is a triangle-shaped, DMX-controllable LED wash light designed to fit inside triangular truss systems from most manufacturers. This DMX LED wash light fits perfectly inside TRUSST® Goal Post and Arch Kit truss systems and easily attaches to 35mm truss using M10 or M12 threaded rig points. Control static colors and automated programs with the included IRC remote, or use the built-in digital display to easily create any color without DMX. Keep your rig neat and tidy by power linking multiple units together, or for coordinated light shows, link with other tri-color LED fixtures in master/slave mode. This DMX LED wash light features built-in dimming curves that allow for ultra-smooth dimming, while flicker-free LEDs make the fixture perfect for on-camera events.
Chauvet Wedge Tri Features:
• Triangular-shaped DMX LED wash light designed to fit inside triangle truss systems from most manufacturersÂ
• Fits perfectly inside TRUSST® Goal Post and Arch Kit truss systems
• Attaches to 35 mm truss without the need for bracket using M10 or M12 threaded rig points
• Keeps your rig neat and tidy by power linking multiple units together
• Easily control static colors and automated programs with the included IRC remote
• Create any color without DMX by using the built-in digital display
• Smooth dimming with built-in dimming curves
• Flicker-free operation suitable for on-camera use
• Create coordinated light shows by linking other tri-color LED fixtures in master/slave
• Fits best in the CHS-40 VIP Gear Bag
Chauvet Wedge Tri Specifications:
• DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 3 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 17 Hz
• Beam Angle: 16°
• Field Angle: 30°
• Illuminance: 1,066 lux @ 2 m
• Power Linking: 42 units @ 120 V; 74 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 23 W, 0.2 A @ 120 V, 60 Hz Â
• Power and Current: 26 W, 0.1 A @ 230 V, 50 Hz
• Weight: 1.4 lb (0.6 kg)
• Size: 4.3 x 4.3 x 4.1 in (108 x 108 x 104 mm)
• Included Controllers: IRC
• Approvals: CE

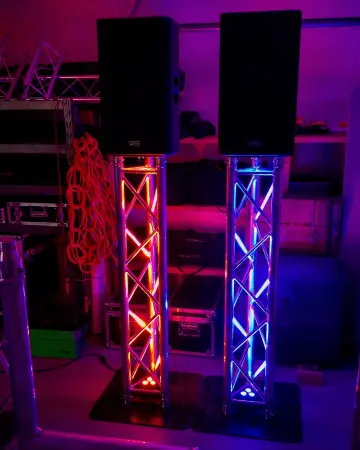

There is absolutely nothing bad about this light. It's perfect for F23 trussing if you want to use it as a truss warmer. Very bright, great versatility, and great DMX configuration. Chauvet really did this one right. You could even use these for uplights. Very good light, in a very small package (it fits in your hand).
Excellent quality and prefect fit for the triangular trussing.
I purchased these for my f23 truss and they workerd perfectly. I decided to go with full size triangle truss and was looking for a new light to warm the larger truss but since I these lights I decided to give them a try. They worked perfectly and warmed the larger truss with no problem at all. I will be buying more of these lights!
Best value from Chauvet for basic uplighting. When DJing house parties this is my go-to light. I bring them and others and am usually able to turn off all the overhead lights in the house... I always set atleast one on the kitchen counter and another in the foyer to start! I have had trouble finding a case to fit only the 4 (I use all Arriba brand cases) but the AC-427 seems to be the way to go to hold up to 8. All in all this light is designed for trusses, but its small footprint and high output make it perfect for setting at the base of walls, etc. You will love this light!
