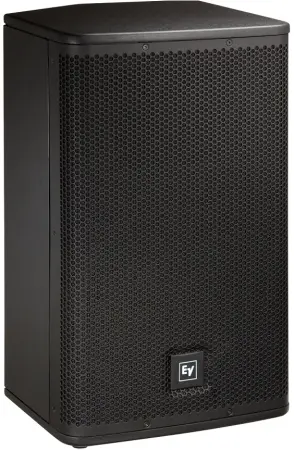

Electro-Voice ELX112 LiveX

EV ELX112 (Electro-Voice LiveX ELX-112)

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

Designed for House of Worship, Pro Music, and other applications.
12” woofer and 1.5” high-frequency titanium compression driver
55 Hz – 20 kHz frequency range 94 dB SPL sensitivity; 132 dB max SPL
250 W continuous and 1000 W peak power handling
Rugged wood cabinet — pole-mounts or stacks with Live X Subwoofers

EV ELX-112
Axial Sensitivity 94 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Frequency Response (-3 dB) 82 Hz - 18 k Hz
Frequency Response (-10 dB) 55 Hz - 20 k Hz
Recommended High-Pass Frequency 45 Hz
Max. SPL/1m (calc) 132 dB
Coverage
(Nominal -6 dB) H° 90 °
Coverage
(Nominal -6 dB) V° 50 °
LF Transducer (1) EVS-12K, 305mm (12”) Woofer
HF Transducer DH-1K, 39mm (1.5”) Titanium Diaphragm Compression Driver
Crossover Frequency 2.1 k Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 7 Ω
Connector Type Dual NL4
Grill 18GA Steel with Black Powdercoat
Height 607 mm (23.9")
Width 362 mm (14.25")
Depth 340 mm (13.39")
Weight Net 15.8 kg (34.83 lbs)
Shipping Weight 20 kg (44.09 lbs)

About EV's LiveX Series:

Engineering
Speakers built to meet exacting Electro-Voice power-handling specs
Electro-Voice-engineered high-frequency titanium compression drivers

Design
Rugged solid wood construction
Stylish design says "serious gear" on any stage
Designed to pole-mount or stack with Live X subwoofers
Easy to connect and control with versatile input and output options
Lightweight materials, balanced design, and ergonomic handles for convenient transport, setup, and load-out

Performance
Best-in-class SPL output across all component configurations
Best-in-class frequency response across powered and passive models
Best-in-class power-handling and sensitivity specs across passive models
