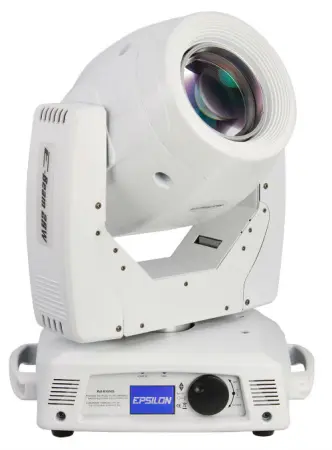

Epsilon E-Beam 2RW

This lightweight and powerful 132 watt beam moving head is perfect for smaller venues looking to blasts colorful yet intense narrow beams to create spectacular mid-air aerial effects. The E-Beam houses separate Gobo and Color Wheel Including 13 Colors plus White and 14 Gobos plus Open; this fixture will create a multitude of colorful long-throw aerial beam effects. The electronic Dimmer, Strobe, and adjustable speed for strobe effect add endless possibilities combined with its 8-facet rotating prism and motorized focus.

Features:

Lightweight 132-watt Beam Moving Head
Color Wheel: 13 Colors + White
GOBO Wheel: 14 Gobos + Open + Variable Rotation
Beam Angle: 0° ~ 4° Degree
Mechanical Dimming
Electronic Strobe (1-14 per sec.)
Motorized Focus
3-Layer HD Optics Glass Lens
8-Facet Prism
Sharp, Narrow Long-Throw Beam
Powerful Mid-Air Effects
Color Temperature (range): 3200k -8000k
Approved Lamp: 2R 132w
Average Lifetime: 2000 hours
Protection Rating: IP20
AC Power Input: powerCON®
DMX Data In/Out: 3-pin

Specifications:

Color Wheel: 13 colors plus white, continuous and stepped scrolling, rotation with variable direction and speed
Gobo Wheel: 14 gobos plus open, continuous and stepped scrolling, rotation with variable direction and speed
Shutter: Strobe effect, pulse effects, instant open and blackout
Prism: 8-facet, indexing and rotation with variable direction and speed
Focus: Motorized
Beam Angle: 4° Degree
Dimmer: 0 - 100% Electronic Dimming
Pan: 540°
Tilt: 270°

CONTROL AND PROGRAMMING
Control System: DMX 512, Auto Show
DMX Channels: 15
Settings: Control Panel with Dimming LCD display
DMX Compliance: USITT DMX 512
16-Bit Control: Dimming, Pan and Tilt
Pan and Tilt Speed: Adjustable via onboard control panel and DMX
Position Correction System: Available for pan and tilt
Data Connectors: DMX 3-pin

INSTALLATION
Minimum distance to illuminated surfaces: 22ft
Mounting points: Two quarter-turn quick release brackets for clamps
Includes: 2- Heavy Duty Clamps, 1- Safety Cable, 1-Power Cord, 1-DMX Cable
Location: Indoor use only, must be fastened to surface or structure
Cable Length: 1.2m

GENERAL SPECIFICATIONS
Power Connection: 90V-240V, 50/60 Hz
Power Input Voltage:90V-240V, 50Hz/60Hz
Typical total power consumption: 234 W
Power & Current: 230w Max, 2.5 A Max.
Light Source: 132w YODN lamp
Power Output: 230W

DIMENSIONS
Unit Weight: 24.69 lbs / 11.2kgs
Unit Size: 16.4" X 12.20" X 20.07" / 41cm*31cm*51cm

Epsilon Pro Ebeam 2rw (Epsilon Ebeam 2r white)
