High-Performance 10-Inch Passive Installation Speaker
The RCF Compact M 10 is a versatile two-way full-range speaker system engineered for permanent installation. With a high output SPL of 128 dB, 300W RMS power handling, and a smooth 60 Hz – 20 kHz frequency range, this speaker is ideal for background and foreground audio in commercial venues, restaurants, retail spaces, and houses of worship.
RCF Compact M 10 Competitive Differences
- Compact 10" design with powerful 128 dB max SPL output
- Rotatable 90° x 70° constant directivity horn for versatile placement
- High-quality plywood cabinet with steel grille for professional installations
- EUROBLOCK input/output with optional SpeakON panel conversion
- Elegant black (RAL 9005) or white (RAL 9003) finish to match any decor
- Multiple rigging points for flexible mounting options
RCF Compact M 10 Description
The RCF Compact M 10 speaker is designed to provide pristine audio performance in compact spaces. With a 10" high-power woofer and a 1" compression driver on a rotatable constant directivity horn, it delivers clear, intelligible sound in both horizontal and vertical installations. The high sensitivity and low distortion are hallmarks of RCF’s professional-grade design, making it suitable for environments where both aesthetics and audio quality matter.
This speaker’s multipurpose design supports various applications, from ambient background music to high-powered foreground audio. Its elegant form factor and minimal footprint make it ideal for venues requiring a discreet yet powerful audio solution. Built from robust plywood and protected by a steel grille with cloth backing, the M 10 withstands rigorous professional use while maintaining an attractive appearance.
Compact M 10 Features
- 300W RMS continuous power handling (1200W peak)
- 128 dB max SPL output
- 60 Hz – 20,000 Hz frequency response
- 90° x 70° rotatable constant directivity horn

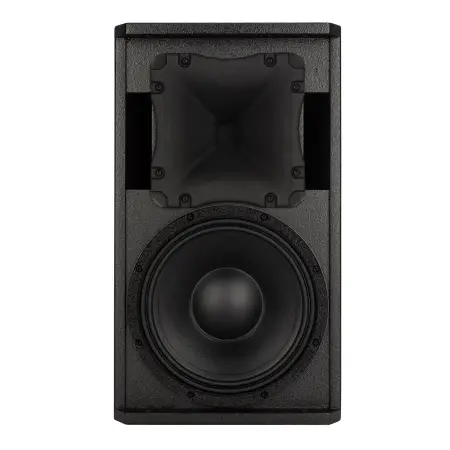

- 1 x 10" woofer with 2.5" voice coil
- 1 x 1" compression driver with 1.4" voice coil
- High-quality plywood construction with steel grille

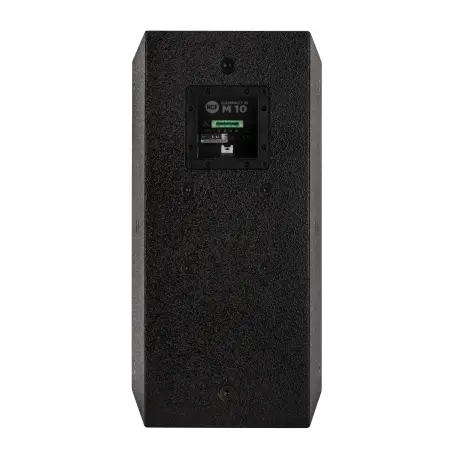

- Rear, top, and bottom mounting points for versatile installation

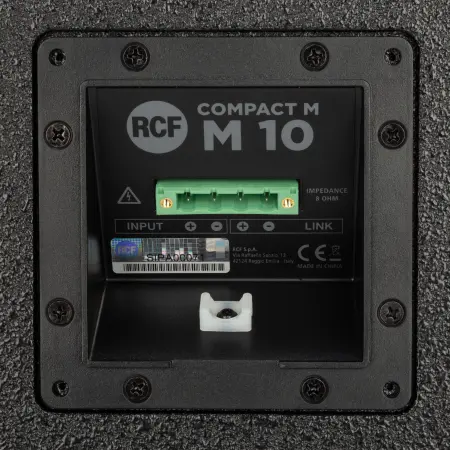

- EUROBLOCK connector for input and parallel output
Compact M 10 Specifications
- Frequency Response (-10 dB): 60 Hz – 20,000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal Coverage Angle: 90°
- Vertical Coverage Angle: 70°
- Directivity Index Q: 9
- Sensitivity: 98 dB
- Nominal Impedance: 8 ohms
- Power Handling: 300W RMS / 1200W Peak
- Crossover Frequency: 1800 Hz
- Input/Output: 4-pole EUROBLOCK
- Cabinet Material: Plywood
- Grille: Steel with acoustic fabric
- Mounting Hardware: 8 x M8, 8 x M10 points
- Dimensions (H x W x D): 20.08 x 11.61 x 12.8 inches (510 x 295 x 325 mm)
- Weight: 37.48 lbs (17 kg)
- Shipping Dimensions: 21.46 x 14.29 x 13.11 inches (545 x 363 x 333 mm)
- Shipping Weight: 44.09 lbs (20 kg)
RCF CM 10
(RCF CM-10 Compact M Install Speaker)
