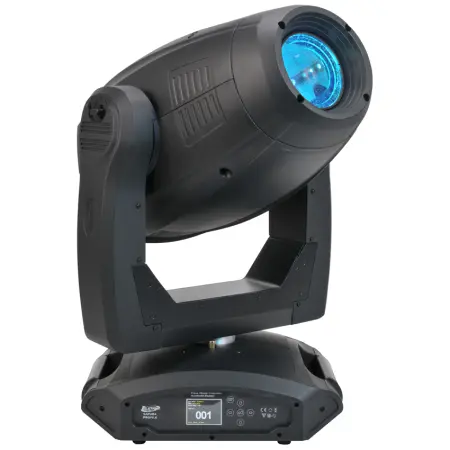

Elation Satura Profile
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
The Satura Profile™ features a new 440W LED Cool White LED engine, delivering a total of 20,000 lumens, 11° to 38° zoom, full CMY color mixing and CTO, 7 dichroic colors, 6 rotating glass and 7 static-stamped metal interchangeable gobos, 4-blade framing shutter system, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 5pin XLR, and RJ45 ethernet in/out connections, powerCON in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
440W Cool White 20,000 Lumen LED Spot Luminaire
11° to 38° Motorized Zoom
Full CMY Color Mixing and CTO
7 Dichroic Colors
6 Rotating and 7 Static-Stamped Interchanegable Gobos
4-Blade Framing Shutter System
3-Facet Rotating Prism and Frost Filter
High Speed Electronic Shutter and Strobe
Motorized Iris and Focus and Variable Dimming Curves
DMX, RDM, KlingNET™ and Art-NET Support
Low Heat, Quiet Operation, Hibernation Mode
Flicker Free Operation For Broadcast TV and FILM
SOURCE
440W Cool White 20,000 Lumen LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
48,160 LUX 4,474 FC @8.2’ (2.5m) (12° Full ON)
6,100 LUX 567 FC @8.2’ (2.5m) (38° Full ON)
EFFECTS
11° - 38° Motorized Zoom
4-Blade Framing Shutter System
3-Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris and Focus
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
7 Dichroic Colors
Full CMY Color Mixing
Linear CTO Color Correction
GOBOS
(6) Interchangeable Rotating / Indexing Glass Gobos
(7) Interchangeable Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (33 / 35 / 54)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin and 5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In
SIZE / WEIGHT
Length: 17.7” (450mm)
Width: 20.7” (525mm)
Vertical Height: 29.3” (745mm)
Weight: 75.0 lbs. (34.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
650W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | IP20
