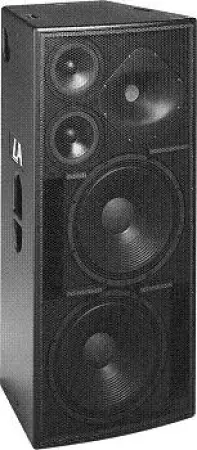

The EAW LA325 is a 3-way full-range system in a vented trapezoidal enclosure. It includes 2 - 15" woofers, 2 - 7" midrange cones, and a 2" exit/3" voice coil compression driver on an elliptical (90 degrees x 70 degrees) Wave Guide Plate. Powering mode is switchable: passive or bi-amplified (passive MF/HF crossover).
The LA325 full-range main system provides very high output over a wide horizontal angle and is intended for stand alone (non-array) use to provide high-definition nearfield response in small to medium-sized venue live music applications. Includes handles and 3-position flytracks with integral mounting/suspension points. Optional casters. Six Year Warranty.
EAW LA325 3-Way Full-Range Loudpeaker Specifications:
- System Configuration: 3-way, full range
- LF Subsystem & Loading: 2x 15-in, vented
- MF Subsystem & Loading: 2x 7-in cones in sealed sub-enclosure
- HF Subsystem & Loading: 1x 2-in exit compression driver on Elliptic Wave Guide Plate
- Operating Mode: Passive or Bi-amplified (passive MF/HF crossover)
- Controls (switches, knobs): Powering mode switch
- Enclosure Material: Exterior grade Baltic birch plywood
- Finish: Wear resistant textured black paint
- Connector: 2x Neutrik NL4 Speakon
- Suspension Hardware: 2x 3-position flytracks, 8x 3/8"-16 mounting points
- Grill: Powder coated perforated steel
Dimensions (±0.13 in / ±3 mm): - Height :47.00 / 1194
- Front Width: 20.87 / 530
- Rear Width: 14.36 / 365
- Depth: 19.50 / 495
- Trapezoid Angle (degrees): 10
Weights (pounds / kilograms) - Net Weight: 170.0 / 77.3
- Shipping Weight: 175.0 / 79.5
Axial Sensitivity (dB SPL, 1 watt @ 1 m) - Full Range Passive: 100
- Passive (MF/HF) (when bi-amped): 100
- LF 100
- Nominal Input Impedance (ohms)
- Full Range Passive: 4
- Passive (MF/HF): 4
- LF: 4
- Power Handling (watts, continuous)
- Full Range Passive: 600
- Passive (MF/HF): 600
- LF: 1000
- Calculated SPL Limit (referenced to 1 m)
- Full Range Passive Peak:133.8
- Passive (MF/HF) Peak: 133.8
- LF Peak:136.0
- Full Range Long Term: 127.8
- Passive (MF/HF) Long term: 127.8
- LF Long Term: 130.0
- Nominal Dispersion (degrees @ - 6 dB)
- Horizontal: 90 degrees
- Vertical: 70 degrees
EAW LA325 3-Way Full-Range Loudpeaker Features:
- 3-way full range main channel system
- (2) 15" LF woofers, vented/(2) 7" MF cones, sealed
- 2" exit HF driver on 90 x 70 degree elliptical, conical Wave Guide Plate
- Integrated flytrack and suspension points
- Switchable powering: full range passive or bi-amp (passive MF/HF)
- For portable use or permanent installation
- EAW processor required to achieve specified bi-amplified performance
