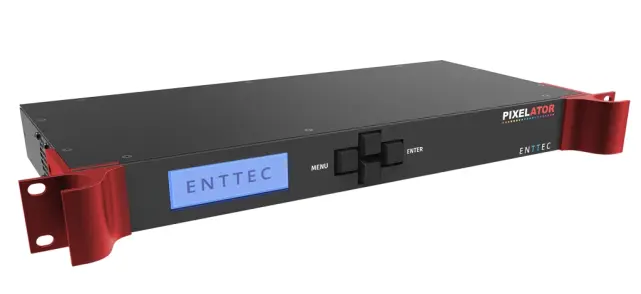

Enttec Pixelator

ENTTEC’s PIXELATOR is a 24-port Ethernet to pixel
controller. Using ENTTEC’s PLINK protocol, each port
provides data to ENTTEC’s PLINK INJECTORS which
can output up to 2 Universes each. The Pixelator can
send data up to 24,576 channels (8,192 RGB pixels)
with perfect synchronization across all eight of its
outputs.
The PIXELATOR can receive sACN, Art-Net & ESP and
output a wide range of SPI pixel output protocols.
All configuration is undertaken using an intuitive
web interface. Controlling LED pixels, dots and
digital strips has never been easier.
ENTTEC’s PLINK protocol can transmit up to 1024
channels (2 Universes) over a 300m distance using
Cat5e/Cat6 cable to each ENTTEC PLINK INJECTOR.
This allows for control of up to 340 RGB or 256 RGBW
pixel per output. This satellite system provides great
flexibility, PIXELATOR since all data conversion is
processed on the PIXELATOR, the PLINK INJECTOR is
kept as compact as possible.
Depending on the application, choose between the
indoor or outdoor IP PLINK INJECTOR, ensuring that
the voltage is compatible with the pixels and power
supply which is installed locally to the PLINK
INJECTOR.


FEATURES:

24* RJ-45 ports (each providing 2 Universes of
PLINK data output)
48 Universe Ethernet to PLINK data over
Cat5e/Cat6 cable
1U Rack form factor
Easy to setup & update through any web
browser
Supports sACN, Art-Net, ESP and Kling-Net
RJ45 Ethercon connector (10/100 Mbps)
Static or Dynamic (DHCP) IP configuration (DHCP
by default)
Compatible with ENTTEC PLINK INJECTORs
Pixel Grouping is configurable for each PLINK
port. (1 to 340) for RGB and (1 to 256) for RGBW
Each PLINK output can be assigned up to 2
Ethernet Universes.
Pixel Ordering is configurable for each PLINK
port. Drives 2 DMX universes of Pixel Tape/Dots.
Each port outputs at 40 frames per second
ArtSync support to ensure all outputs are in
synchronization with each other.
Clock module to sync multiple universes output
and an in-built DMX Generator
Dual core CPU, with a clock speed 2GHz –
provides efficient and reliable output
1GB DDR3 RAM – allows best utilization of the
system.

SPECIFICATION:

Connectors
24* PLINK Output (RJ-45)
1* LAN port (RJ45)
1* RS232 Port (un-used)
2* USB Ports (un-used)
IP rating IP20
LCD Functionality Status, Profiles, Settings
Input Protocol
Art-Net sACN
KiNet ESP
PIXELATOR Data Output PLINK Data
PLink Data Output Type SPI. See website for all
supported protocols
Input Voltage 85-264V AC
Input Frequency 47-63Hz
Power Consumption 20W
Configuration & Update Web Interface
Cooling Method Passive
Max. Output Refresh
Rate 40FPS
Environmental Operating
Temperature
0°C to 50°C
32°F to 122°F
Environmental Operating
Humidity
5- 95%
(non-condensing)
Body Material Powder coated &
anodized aluminium
Unit Weight 1.60kg / 3.53lbs (2019
and later)
Shipping Dimensions 516 * 288 * 125 mm
Shipping Weight 2.10kg / 4.63lbs
Warranty 3 year return to base
manufacturer warranty

ENTTEC PIXELATOR (Enttec 48 Universe Ethernet to PLINK)
