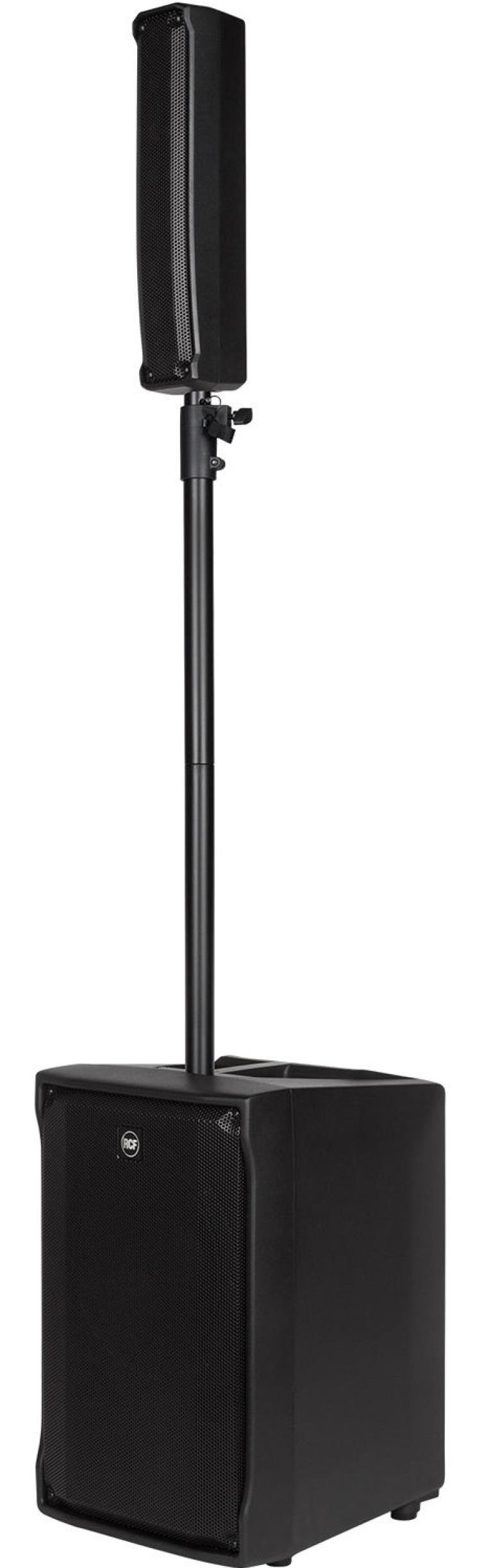

High-Powered Portable PA System with Clear, Dynamic Sound
The RCF EVOX J8 is a versatile, high-performance portable PA system designed for dynamic sound clarity and powerful output. Combining a compact line array with a high-output 12” woofer, this system delivers 1400 watts of power, ideal for both live music and vocal presentations. Its advanced DSP processing with FiRPHASE ensures consistent audio quality across the frequency spectrum, making it perfect for events that require rich sound projection in a compact form factor.
RCF EVOX J8 Competitive Differences
Powerful 1400W Class D amplification (700W RMS) for high sound quality
FiRPHASE DSP processing for accurate phase response and clear audio
Compact line source satellite with eight 2” full-range drivers for wide dispersion
12" woofer with high-power 2.5” voice coil in a bass reflex enclosure
Portable composite enclosure designed for easy transport and setup
RCF EVOX J8 Description
The RCF EVOX J8 integrates advanced technology and a compact design to bring powerful sound to portable settings. Its line array module, equipped with eight 2” full-range drivers, delivers 120° horizontal coverage and 30° vertical dispersion, ensuring wide and consistent sound coverage. Coupled with a robust 12” woofer and 1400W amplification, the EVOX J8 produces a stunning 128 dB max SPL, making it ideal for larger venues and outdoor events. With FiRPHASE DSP, this system ensures minimal phase distortion, offering superior clarity and precise vocal reproduction.
This unit’s rugged PP composite enclosure provides durability, and its compact size with a single top handle makes it easy to transport and set up. Whether you’re a DJ, musician, or event professional, the EVOX J8 is designed to meet the demands of portable audio applications with RCF’s renowned sound quality.
RCF EVOX J8 Features
128 dB Max SPL for powerful sound output
1400W peak power (700W RMS) with Class D amplification
FiRPHASE DSP processing for consistent audio fidelity
Eight 2” full-range drivers with 1” voice coils
12” woofer with 2.5” high-power voice coil in a bass reflex cabinet
120° horizontal and 30° vertical coverage
Compact composite enclosure with single top handle for portability
Available in black and white finishes
RCF EVOX J8 Specifications
Frequency Response: 40 Hz – 20,000 Hz
Maximum SPL: 128 dB @ 1m
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 30°
Transducers: 8 x 2” full-range (1” voice coil), 1 x 12” woofer (2.5” voice coil)
Input Signal: Balanced/Unbalanced
Input Connectors: XLR, Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Crossover Frequency: 220 Hz
Protections: Thermal, RMS with Soft Limiter
Controls: Volume, Boost, Mic/Line
Cooling: Convection
Power Requirements: VDE
Cabinet Material: PP Composite
Dimensions (HxWxD): 89.96 x 15.75 x 18.11 inches (2285 x 400 x 460 mm)
Weight: 44.53 lbs (20.2 kg)
Shipping Dimensions (HxWxD): 26.61 x 17.76 x 22.87 inches (676 x 451 x 581 mm)
