StudioMaster DIRECT 121
1x 1" HF Compression Driver
6x 3" MF Speakers
1x 12" LF Subwoofer
4 Channel Analog Mixer Colomn PA System
1200 Watt System

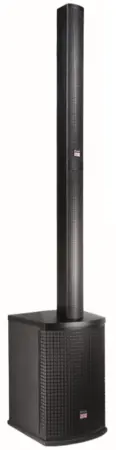

Elegant, self powered, column array system with no visible wires or poles. The HF column speakers are passive, with all amplification in the sub cabinets. The subs have multi-channel amplifiers, with DSP speaker processing technology built in, so you will be able to tune your speaker to the perfect sound, whatever venue you're performing in.
SPEAKER:
Mid Range: 6x 3" full frequency speakers
High Freq: 1x 1" compression drive horn speaker
Coverage: (H*V) 120' x 30'
Rated Power: 180W (RMS) MF / 120W (RMS) HF / 300W (RMS) Total / 600W Peak
Rated Impedance: 6 ohms
Net Weight: 3.9kg / 8.6lbs
SUBWOOFER:
Speaker 1x 12" Woofer
Rated Power: 300W RMS / 600 Watts Peak
Rated Impedance 4 ohms
Box Size 366 x 675 x 541mm
Net Weight 23kg / 50.6lbs
AMPLIFIER:
Rated Power 2x 300W (RMS) / 2x 600W (peak) / 1200 Watts Total
Frequency Range 20 Hz - 20kHz
DSP Connection 24 bit (1-in - 2-out)

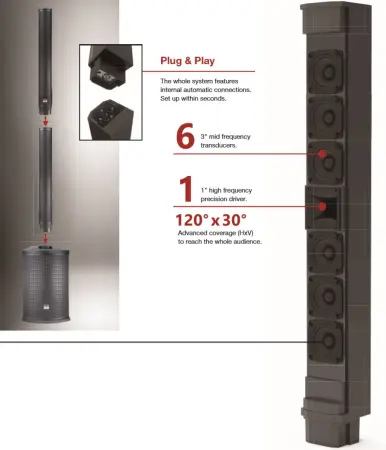

Column Speaker
Self-powered 3-way system for high definition sound (122 dB max.) 6 x 3" plus 1 x 1" precision transducers
120° x 30° ultra wide sound coverage (HxV)
10" and 12" subwoofers for deep and powerful lows
Class-D amplifier modules for low distortion and excellent sound, powerful SMPS (100 V - 240 V)

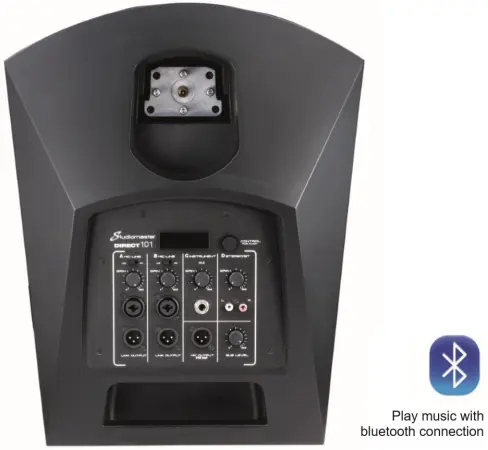

Extensive 4-channel mixer
2 x MIC/LINE input (adjustable), 1 x RCA stereo input, 1 x HI-Z instrument input, 2 x XLR line ouput, 1 x SUB LEVEL controller for quick access
Powerful 24-bit DSP with display, ONE CONTROL encoder, storable presets, digital gain control, high-pass filter, delay, dual-channel limiter and equalization
Digital delay for delay zones up to 100 m (in steps of 0.25 m)
Shipping Weight
Sub Box: 26kg / 57lbs
Speaker Box: 9kg / 20lbs
Studio Masters Direct-121
(Studio Master Direct121)
