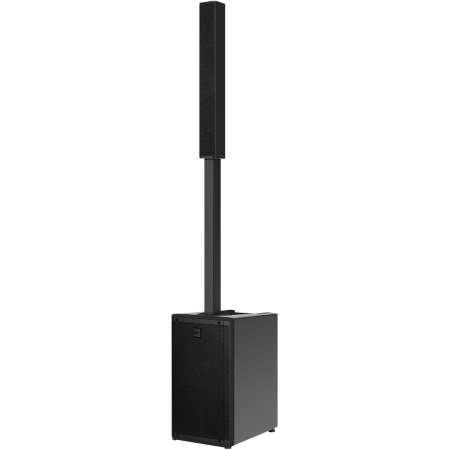

RCF EVOX J9

Portable Column PA System

RCF EVOX J9 is a high-performance, three-way active column speaker system designed for superior audio clarity, wide dispersion, and deep bass response in a lightweight, road-ready package. Whether you're a DJ, band, or live performer, it delivers powerful output with fast, intuitive setup.

RCF EVOX J9 Competitive Differences

• 2100W peak Class-D amplifier with built-in DSP and presets
• 6 × 3” neodymium drivers and 12” woofer for full-range, articulate sound

RCF EVOX J9 Description

The RCF EVOX J9 offers a professional-grade audio experience in an ultra-portable form factor. Its True Resistive Waveguide design ensures 120° x 40° coverage for consistent, even sound throughout any venue. A neodymium compression driver and six 3” full-range transducers deliver crisp highs and defined mids, while a 12” woofer in a bass-reflex enclosure brings tight, punchy low end to life.

The onboard 2100W Class-D amplifier includes a DSP with selectable EQ presets — Linear, Live, Club, and Voice — to match your performance needs. Integrated protection features and fanless convection cooling ensure reliability over time. The included aluminum pole mounts the column securely to the subwoofer and supports fast, tool-free assembly.

Engineered for mobile use, the EVOX J9 is housed in a rugged yet lightweight polypropylene composite cabinet. It features a top handle for easy lifting and comes with a padded carry bag for the top speaker. The elegant black or white finish and modular height options make it perfect for weddings, corporate events, clubs, and touring applications.

With proprietary RCF technologies like Bass Motion Control and FiRPHASE, the EVOX J9 delivers outstanding clarity, dynamic range, and phase coherence — making it a top-tier solution for portable sound reinforcement.

Model Features

• Active 3-way column system with built-in DSP
• 2100W peak Class-D amplifier (700W HF / 1400W LF)
• 1 × 1.75” compression driver with True Resistive Waveguide (120° x 40°)
• 6 × 3” full-range neodymium transducers for clear midrange
• 1 × 12” woofer in bass-reflex enclosure for powerful low end
• Multiple EQ presets: LINEAR, LIVE, CLUB, VOICE
• Durable composite enclosure with aluminum pole mount
• Top speaker padded carrying bag included

Model Specifications

• Max SPL: 130 dB
• Power Output: 2100W Peak (700W HF, 1400W LF)
• Frequency Response: 40 Hz – 20,000 Hz
• Crossover Frequencies: 200 Hz / 1800 Hz
• Horizontal Coverage: 120°
• Vertical Coverage: 40°
• Compression Driver: 1 × 0.75” exit, 1.75” VC
• Mid Drivers: 6 × 3” neo, 1” VC
• Woofer: 1 × 12” with 2.5” VC
• Input Connectors: Combo XLR/Jack
• Output Connectors: XLR
• Input Sensitivity: -2 dBu / +4 dBu
• Controls: Volume, Presets
• Protections: Thermal, RMS, Soft Limiter
• Cooling: Convection
• Construction: PP Composite cabinet, steel grille
• Mounting: Quick-fit pole socket
• Dimensions (H × W × D): 81.89 × 13.78 × 18.21 in (2080.1 × 350 × 462.6 mm)
• Weight: 62.39 lb (28.3 kg)
• UPC: 8024530024123

What's In The Box

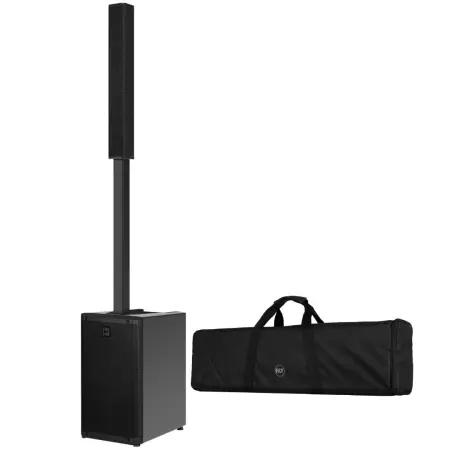

• RCF EVOX J9 column speaker system

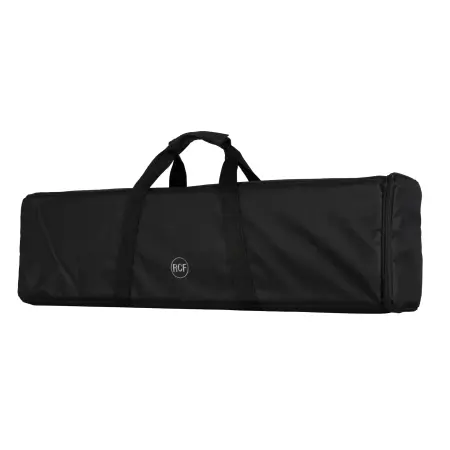

• Padded carry bag for top speaker
• Mounting pole
• Power cable
• Documentation

RCF EVOX-J9 (RCF EVOXJ9)
