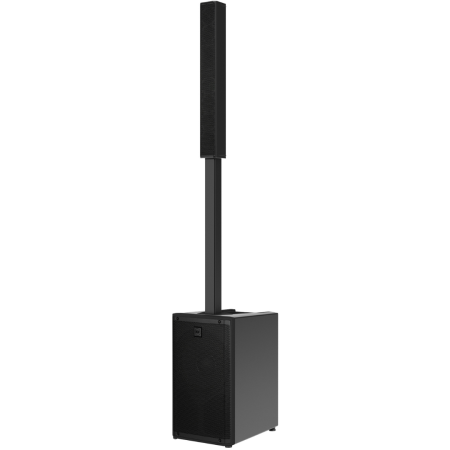

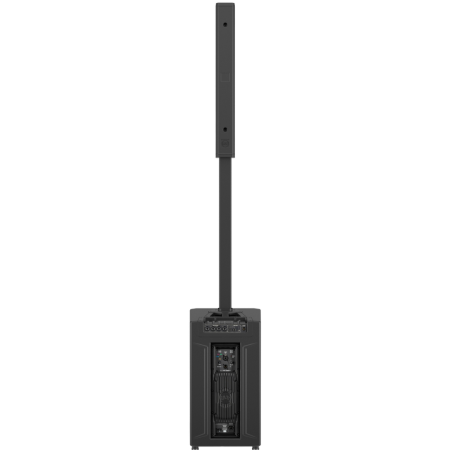

Portable Column PA System
RCF EVOX JMIX9 is a compact, all-in-one portable sound solution combining high-output audio with full-featured digital mixing. Designed for performers, DJs, and presenters, it delivers professional-grade sound, wireless control, and intuitive operation — all in a sleek, portable package.
RCF EVOX JMIX9 Competitive Differences
- Integrated 8-channel stereo digital mixer with color touchscreen and Bluetooth audio
- RCF Class-D amplifier with 2100W peak power and 130 dB max SPL output
RCF EVOX JMIX9 Description
The
RCF EVOX JMIX9 expands on the proven EVOX J9 platform by integrating a studio-quality 8-channel digital mixer with onboard DSP, EQ, compression, and effects. Ideal for mobile entertainers and small-format performers, this system provides a clean, powerful sound with unmatched flexibility.
The onboard mixer features four mic/line combo inputs with compression, phantom power, and stereo linking. Inputs 5–8 include stereo TRS and 3.5 mm aux with Bluetooth® streaming. Touchscreen controls and endless encoders offer fast, intuitive access to all settings, while the JMixRemote app provides wireless control via smartphone or tablet.
For audio performance, the JMIX9 features a 1.75" compression driver with a True Resistive Waveguide for consistent 120° x 40° dispersion, paired with six 3” neodymium drivers and a 12” woofer in a bass-reflex design. The 2100W Class-D amplifier delivers up to 130 dB SPL, ensuring clear highs, defined mids, and deep bass across any venue.
The lightweight composite enclosure is easy to transport, includes a mounting pole, and comes with a padded bag for the top speaker array. Whether you’re a solo artist, small band, or AV professional, the EVOX JMIX9 gives you studio-grade sound and full control in a compact format.
Model Features
- 3-way portable column system with 8-channel stereo digital mixer
- Color touchscreen and encoder control with full Bluetooth audio streaming
- 1 × 1.75” compression driver with 120° × 40° True Resistive Waveguide
- 6 × 3” full-range neodymium drivers for articulate mids and highs
- 1 × 12” woofer in bass-reflex cabinet for deep, defined low-end
- 4 mic/line inputs with compressors and phantom power
- Stereo line inputs, aux out, FX send, headphone out
- Internal 32-bit DSP, 24-bit converters, and 3-band input EQ
- Selectable presets: LINEAR, LIVE, CLUB, VOICE
- Padded carry bag for top speaker included
Model Specifications
- Max SPL: 130 dB
- Power Output: 2100W Peak (700W HF, 1400W LF)
- Frequency Response: 40 Hz – 20,000 Hz (System)
- Crossover Frequencies: 200 Hz / 1800 Hz
- Horizontal Coverage: 120°
- Vertical Coverage: 40°
- Compression Driver: 1 × 1.75” VC (0.75” exit)
- Mid Drivers: 6 × 3” neo, 1” VC
- Woofer: 1 × 12” with 2.5” VC
- Inputs: 4 × Mic/Line, 2 × Stereo Line
- Outputs: Main Out, Aux Out, FX Send, Headphones
- EQ: 3-band EQ on inputs, 8-band master EQ
- Mixer Control: Touchscreen + Encoders or Remote App
- Connectivity: Bluetooth, XLR/Jack Combo Inputs, XLR Outputs
- Phantom Power: +48V
- Construction: PP Composite cabinet, steel grille
- Dimensions (H × W × D): 81.89 × 13.78 × 18.11 in (2080 × 350 × 460 mm)
- Weight: 63.49 lb (28.8 kg)
- UPC: 8024530024130

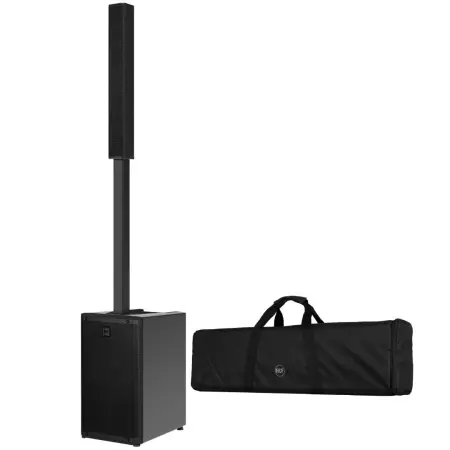

What's In The Box
- RCF EVOX JMIX9 column speaker system
- Padded carry bag for top speaker
- Mounting pole
- Power cable
- Documentation
RCF EVOX JMIX9
(RCF EVOX-J-MIX-9)
