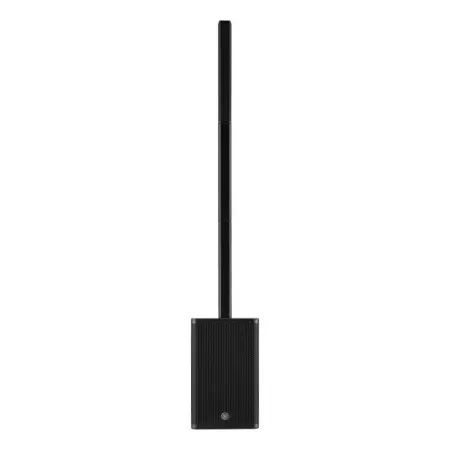

Yamaha STAGEPAS 1K mkII

12in - 125dB

$1,449.99

More Practical. More Professional. More Powerful.
The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing our unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple setup and control allow you to focus on your performance
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance.

Best-in-Class Compact Power
A 1100W amplifier drives the array speaker with 10 small-diameter 1.5-inch units, as well as a class-leading 12-inch subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

Compact yet powerful package
Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.

J-curve slim line array
Yamaha STAGEPAS 1K mkII - Angle View
The high-frequency speaker array is comprised of 10 x 1.5-inch small diameter speakers. By adopting a J-curve array configuration, the high-frequency unit achieves coverage of 170° horizontal and 30° vertical. With such a long, 10-driver array design the STAEGEPAS 1K mkII can deliver clear, high quality sound consistently over longer distances from the front to the rear of the audience.

Class-leading 12-inch “compact” subwoofer

The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the STAGEPAS 1K mkII boasts the smallest cabinet on the market for a subwoofer of this size and power.

By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.

FEATURES:

1100W power output
Biggest in the class 12-inch subwoofer for low frequency
1.5-inch x10 slim line array speaker for high frequency
Digital mixer (3 mono mic/line + 1 stereo line)
Multi band comp “MODE” for master output
1-knob EQ per channel
High resolution SPX digital reverb (4 types, parameter control)
Priority Ducker for stereo channel
4 band PEQ per channel via remote control APP “STAGEPAS Controller”
2x Hi-Z (high impedance) inputs
Link out and monitor out
Dedicated cover included
Optional reverb foot switch (FC5)
Optional dolly (DL-SP1K) for more portability

SPECIFICATIONS:

TypeMixing capabilityMixing channelsInput channel functionsOutput channel functionsI/OInputsOutputsBluetoothControl and othersOn-board processorsDSPGeneral specificationsSpeaker typeFrequency range (-10dB)Coverage areaCrossoverMaximum output level (1m; on axis)ComponentsLFHFAmplifier classPower ratingDynamicPower consumptionPower requirementsHandleDimensions (W x H x D)WeightAccessoriesOptions
STAGEPAS 1K mkII
STAGEPAS 1K mkII
Outline
Type Powered subwoofer with a line array speaker
Mixing capability Mixing channels 5 (Mono x3 + Stereo x1)
Input channel functions Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions MODE (SPEECH/MUSIC/CLUB)
I/O Inputs Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs Link out x1, Monitior out x1
Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others Reverb foot switch, STAGEPAS Controller (iOS/Android app)
On-board processors DSP SPX digital reverb (4 program, parameter control)
General specifications
Speaker type Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (-10dB) 37 Hz - 20 kHz
Coverage area H170゚ x V30゚
Crossover 240 Hz
Maximum output level (1m; on axis) 125 dB SPL
Components LF Powered subwoofer: 12” (30 cm) Cone
HF Line array speaker: 1.5” (3.8 cm) Cone x 10
Amplifier class Class-D
Power rating Dynamic 1100 W
Power consumption 25 W (Idle), 91 W (1/8 power)
Power requirements Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
Handle Top of powered subwoofer x1
Dimensions (W x H x D) System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
Weight System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
Accessories Power cord x 1, Cover x 1
Options Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch for reverb ON/OFF)
