Studiomaster Direct 121M | 12in Column PA - 122dB ...
$1,259.00

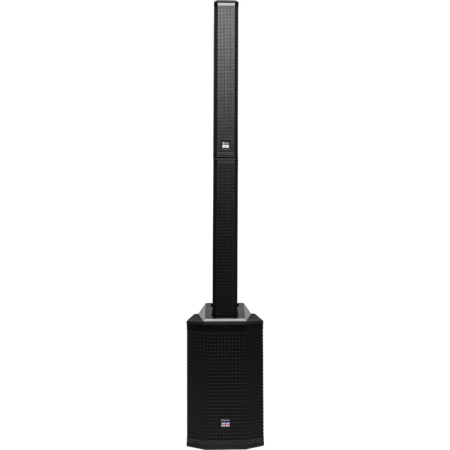

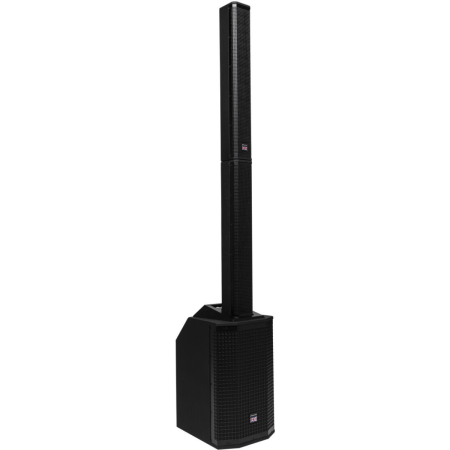

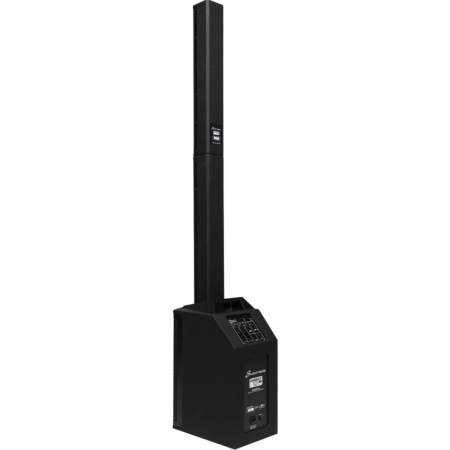

The Studiomaster Direct 121M is a self-powered 3-way column array PA system that combines a six-driver midrange column, dedicated compression driver, and 12-inch bass reflex subwoofer in one portable system. Its integrated mixer, Bluetooth connectivity, digital signal processing, and wide sound coverage make it useful for live performances, DJ events, presentations, houses of worship, schools, and mobile sound reinforcement.
The Studiomaster Direct 121M uses a 3-way speaker configuration to deliver full-range sound from a compact column system. Six 3-inch midrange drivers reproduce vocals and instruments, while the dedicated 1-inch compression driver handles high-frequency detail. A powered 12-inch bass reflex subwoofer supplies the system's low-frequency output.

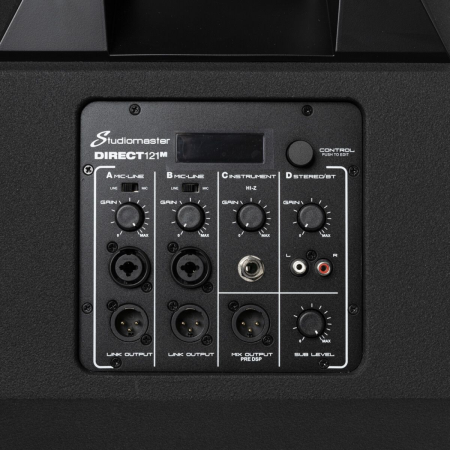

The integrated 4-channel mixer supports two microphone or line-level sources through XLR/TRS combination inputs, a high-impedance instrument source, and a stereo RCA source. Bluetooth audio streaming provides convenient wireless playback, while the available XLR outputs support signal linking and connection to additional sound equipment.
A built-in 24-bit DSP processor provides Music, DJ, and Speech presets along with adjustable equalization, gain, high-pass filtering, limiter protection, and output delay. The digital delay can be adjusted for distances up to 100 meters in 0.25-meter increments, allowing the system to be aligned with additional speakers in larger or distributed setups.

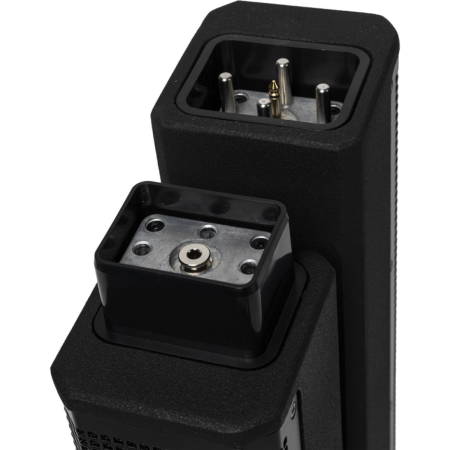

Efficient Class-D amplification and a universal 100–240V switch-mode power supply support reliable portable operation. The column sections connect without external speaker cables, allowing the system to be assembled quickly for mobile DJs, live performers, corporate events, houses of worship, rental applications, schools, and small venue sound reinforcement.
| Beam Angle | 120° horizontal by 30° vertical degrees |
| Connectivity Protocols | Bluetooth wireless audio streaming with True Wireless Stereo pairing, XLR/TRS combination inputs, RCA stereo input |
| Frequency Response | 35Hz–20kHz Hz |
| Max SPL | 122dB dB |
| Power Consumption | 100–240V AC Switch-Mode Power Supply V |
| Power Rating | 600W RMS / 2400W Peak W |
| Wattage | 2 x 300W RMS W |
| Brand | Studio Master |
| Name | Studiomaster Direct 121M | 12in Column PA - 122dB | 4-Channel Mixer with Bluetooth DSP |
| Primary Category | Active Column Array PA System |
| Dimensions | 14.1 x 82.9 x 17.2 in (357 x 2105 x 437 mm) inches |
| Included Accessories | Power cable, User manual, Warranty documentation |
| Mounting Options | Tool-free column assembly with internal connections |
| Weight | 71.7 lb (32.5 kg) kg |
| Driver Configuration | Six 3-inch midrange drivers, one 1-inch compression driver, and one 12-inch bass reflex subwoofer |
| Onboard DSP | 24-bit DSP with Music, DJ, and Speech presets, EQ, high-pass filtering, limiter, and digital delay |
