Wireless DMX Controller & Smartphone App Dongle
The Ape Labs W-App is a compact and powerful Bluetooth DMX transceiver designed to control Ape Labs lighting wirelessly from your smartphone or tablet. With a massive 1,000ft wireless DMX range, this versatile device functions as a DMX transmitter or receiver, offering intuitive app-based control, group management, and sound-active syncing for DJs, lighting pros, and event producers.
Ape Labs W-App Competitive Differences
- Acts as both a wireless DMX transmitter and receiver
- Built-in rechargeable battery provides up to 50 hours of runtime per charge
- Massive 1,000ft (300m) wireless range for DMX control
- Full app-based control via Bluetooth from iOS or Android devices
- DMX input/output via 3-pin Neutrik connectors
- Transmit up to 4 DMX universes simultaneously (requires 4 W-App units)
- Enables wireless fixture addressing, firmware updates, and setup
- Serves as a master microphone for Sound Active Mode
Ape Labs W-App Description

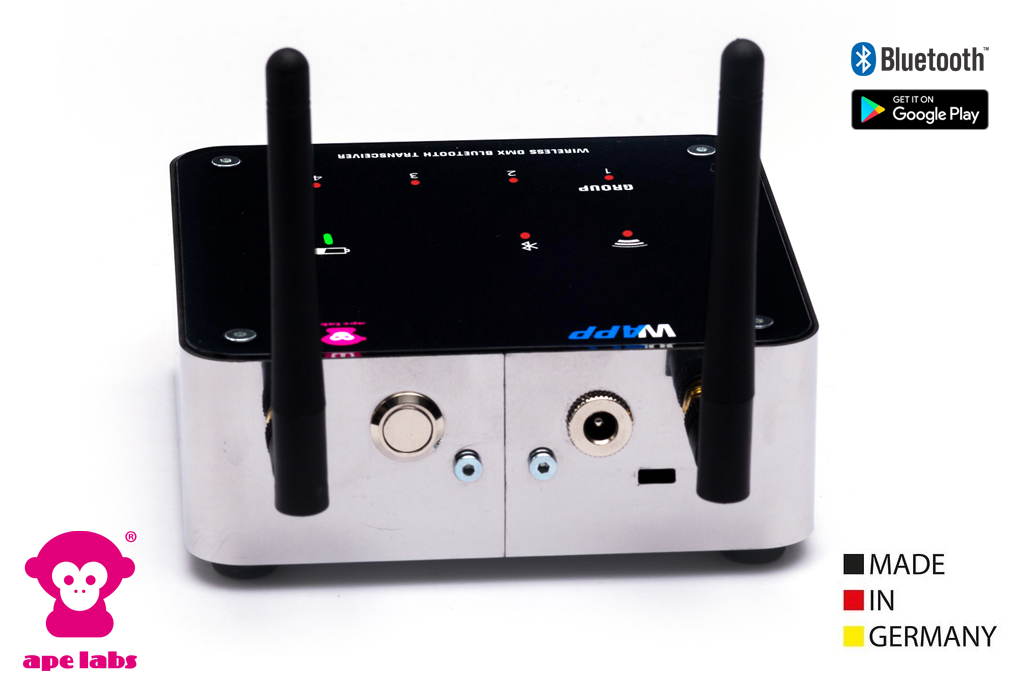

The Ape Labs W-App is your all-in-one DMX solution, engineered for seamless wireless lighting control using the free Ape Labs mobile app. Designed for DJs, mobile entertainers, and stage lighting professionals, this Bluetooth-based dongle connects with your iOS or Android device and communicates with Ape Labs fixtures over a 2.4GHz wireless signal.

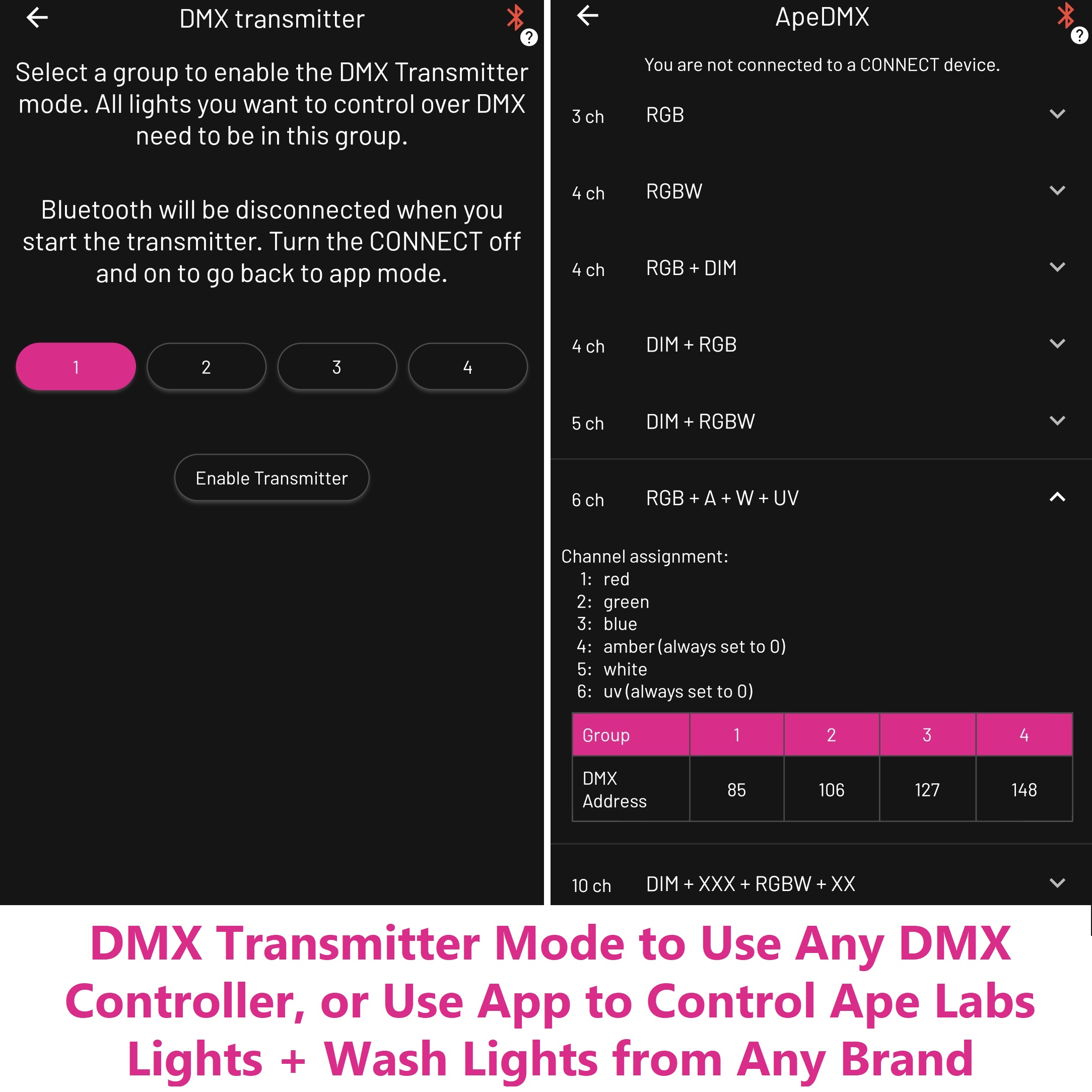

Whether you're using it as a DMX transmitter for your controller, a wireless receiver for non-Ape Labs lights, or simply as an app interface, the W-App delivers maximum flexibility. Its built-in battery ensures 50 hours of wireless performance, making it ideal for long events. You can wirelessly address lights, update firmware, adjust brightness, create custom color palettes, and more—all from the app.
The device supports group control with the ability to manage one, two, three, or all four lighting groups simultaneously. For sound-reactive shows, you can use the W-App as a centralized microphone or allow each fixture to operate using its own mic. With support for transmitting up to four DMX universes using four W-App transceivers, scalability and creative freedom are at your fingertips.
W-App Features
- Bluetooth connection to iOS or Android phone/tablet
- 2.4GHz wireless communication with fixtures
- Built-in rechargeable battery (50 hours per charge)
- Wireless DMX transmitter and receiver capabilities
- Free app updates with feedback-driven improvements

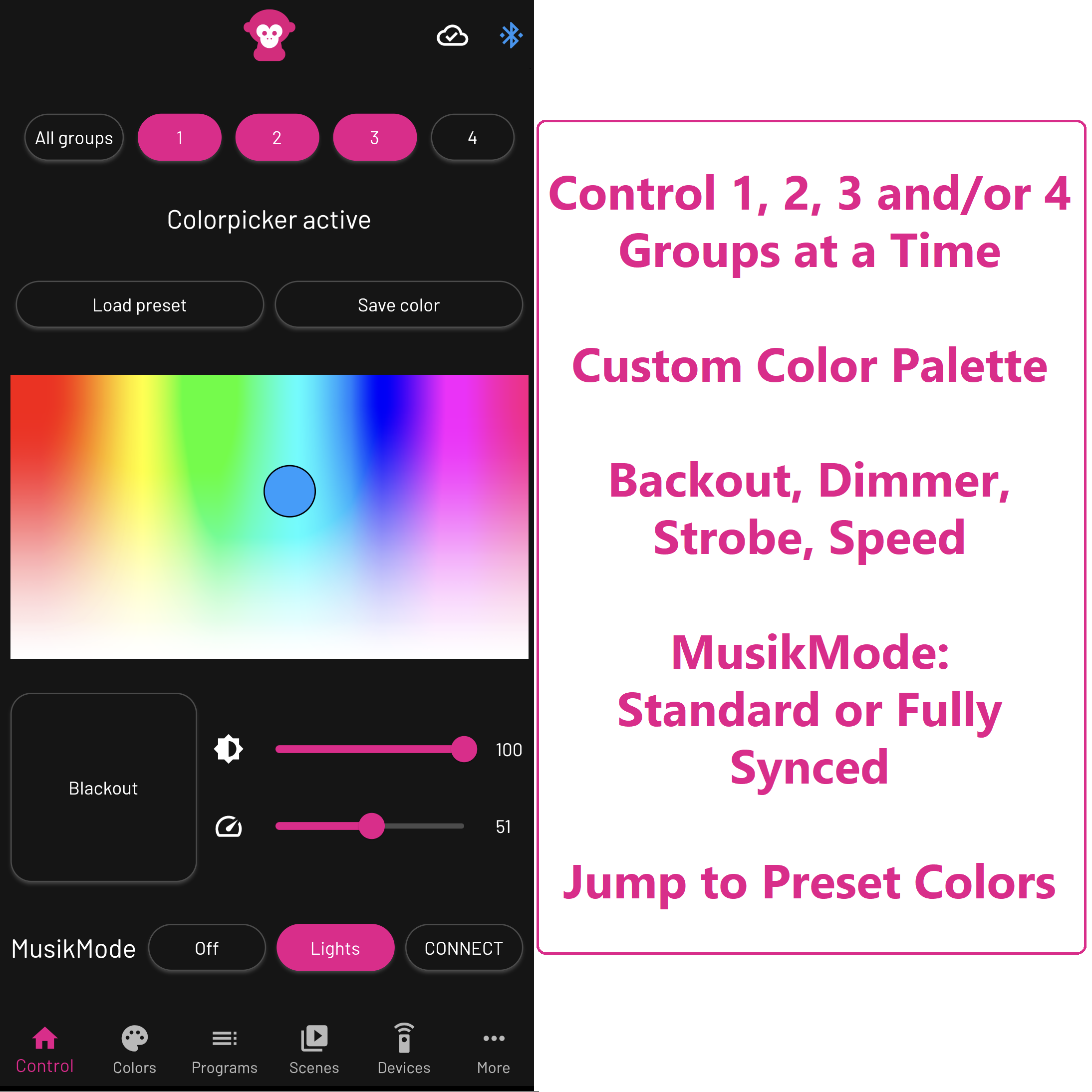

- 4 group management with selective control

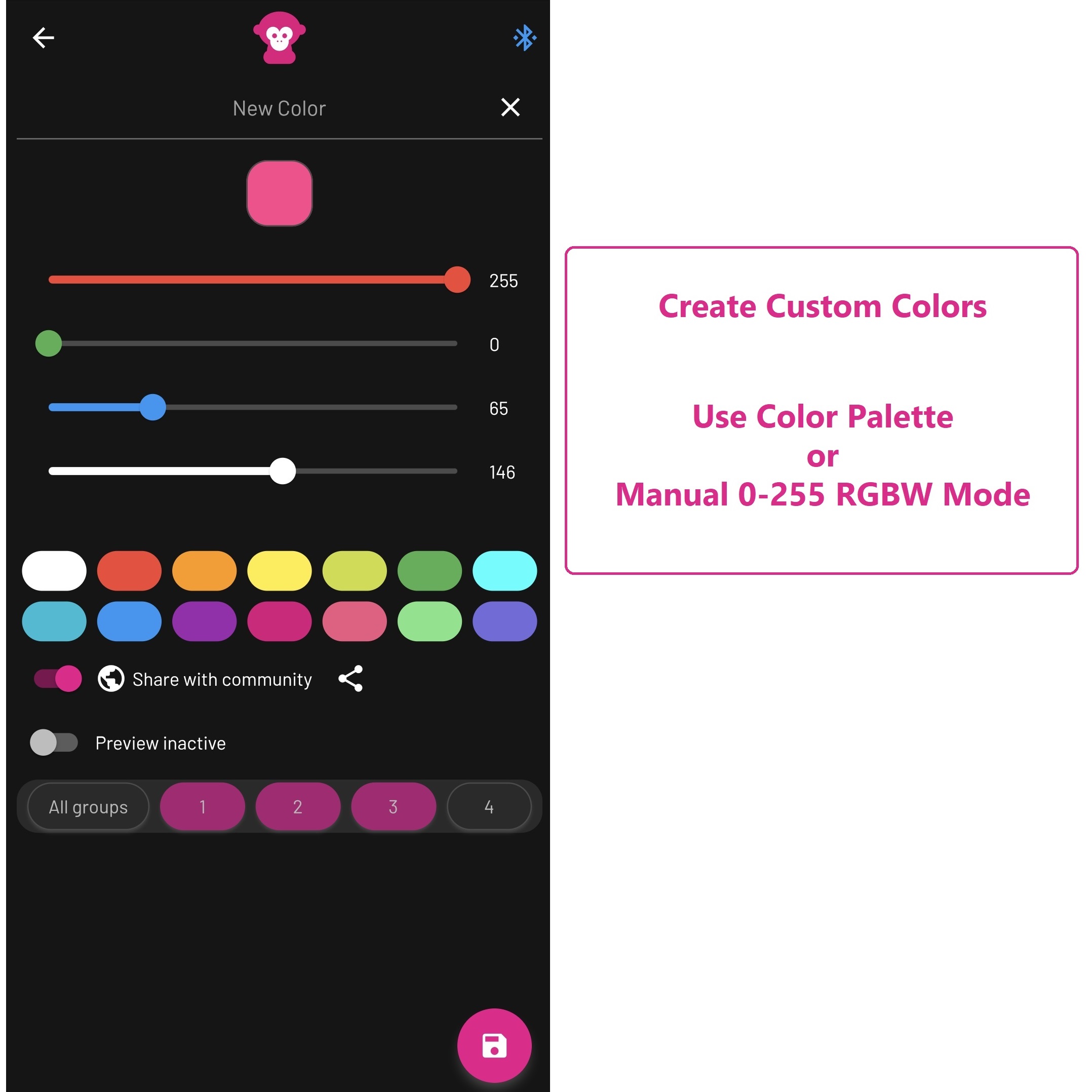

- Color wheel and color picker tools

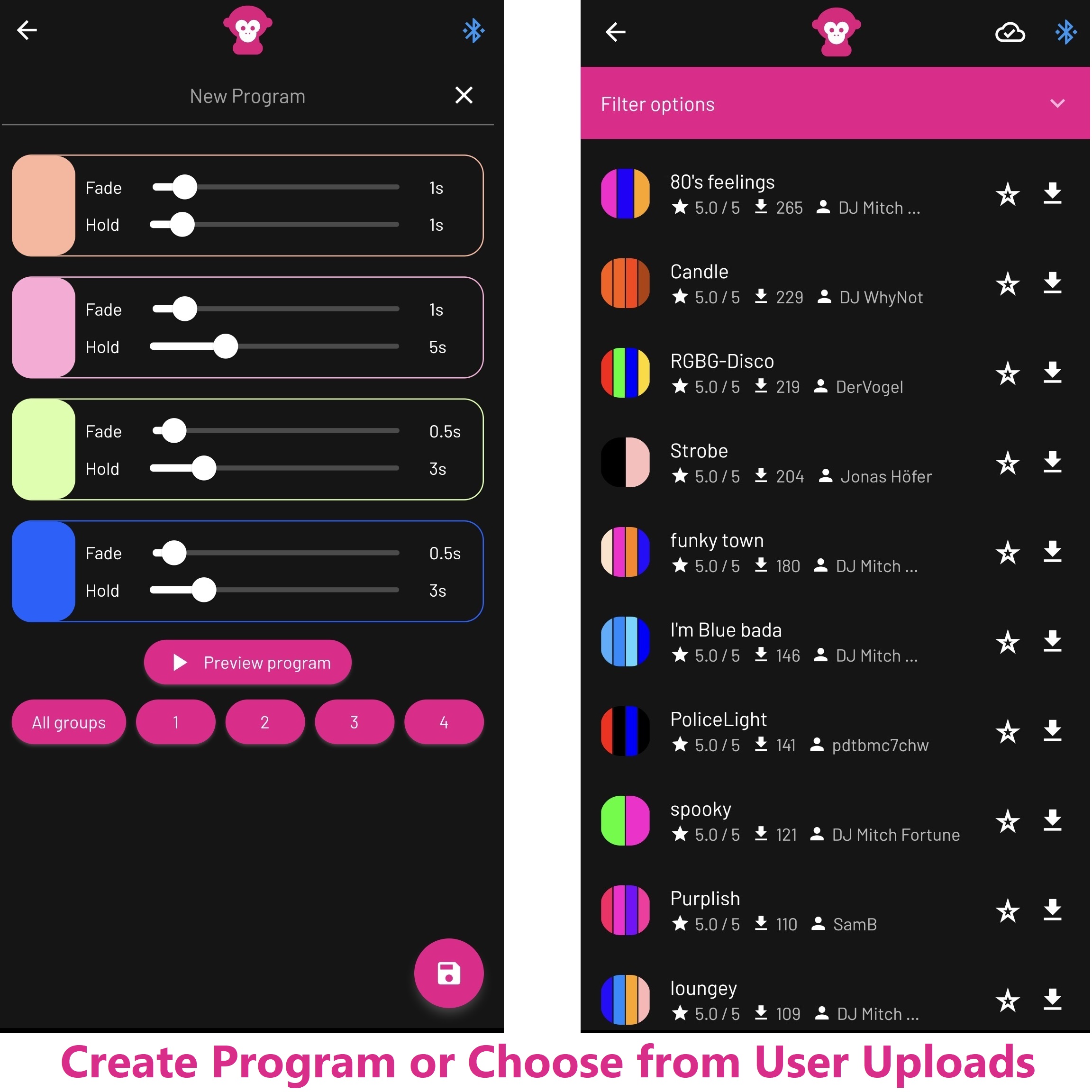

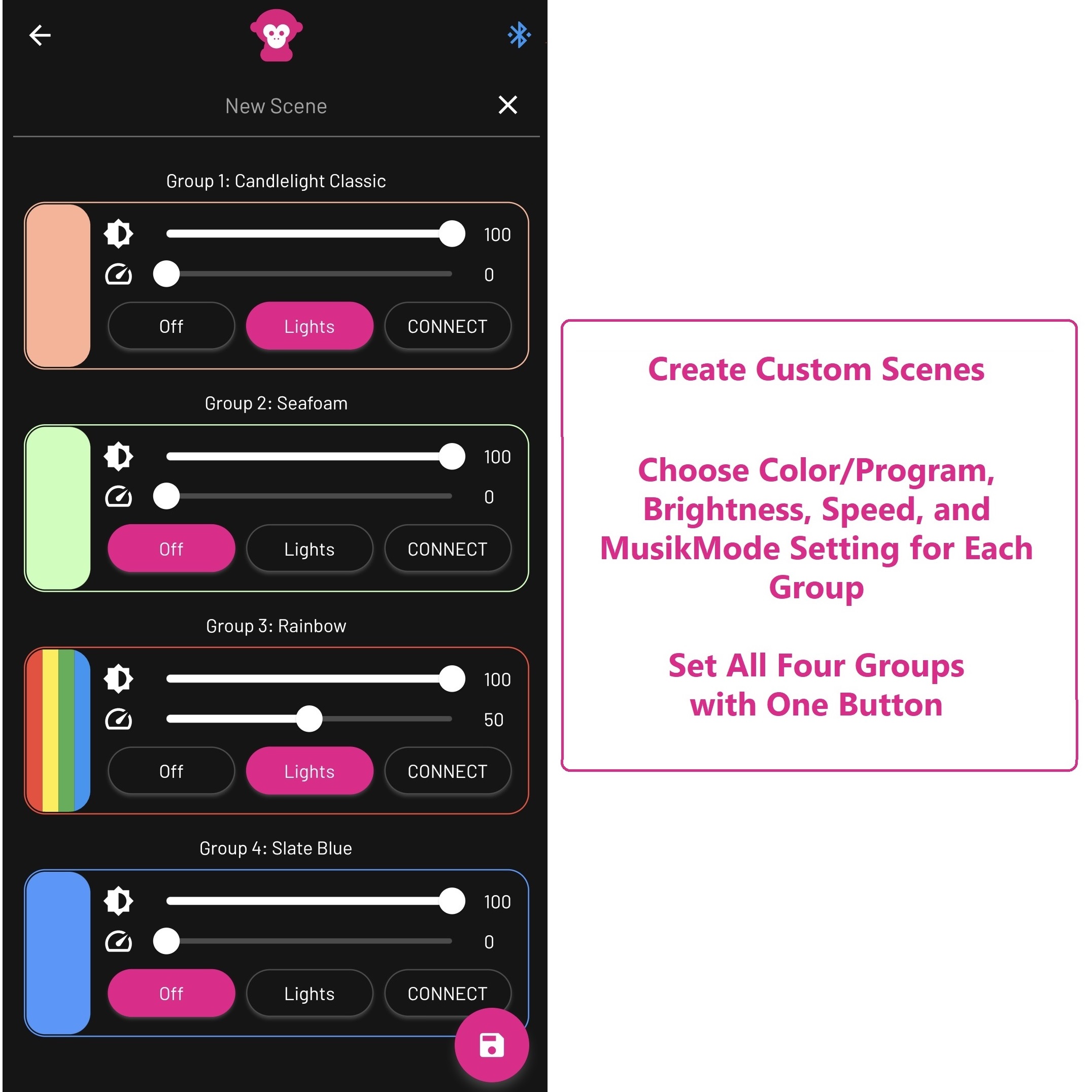

- Save and trigger custom colors and programs

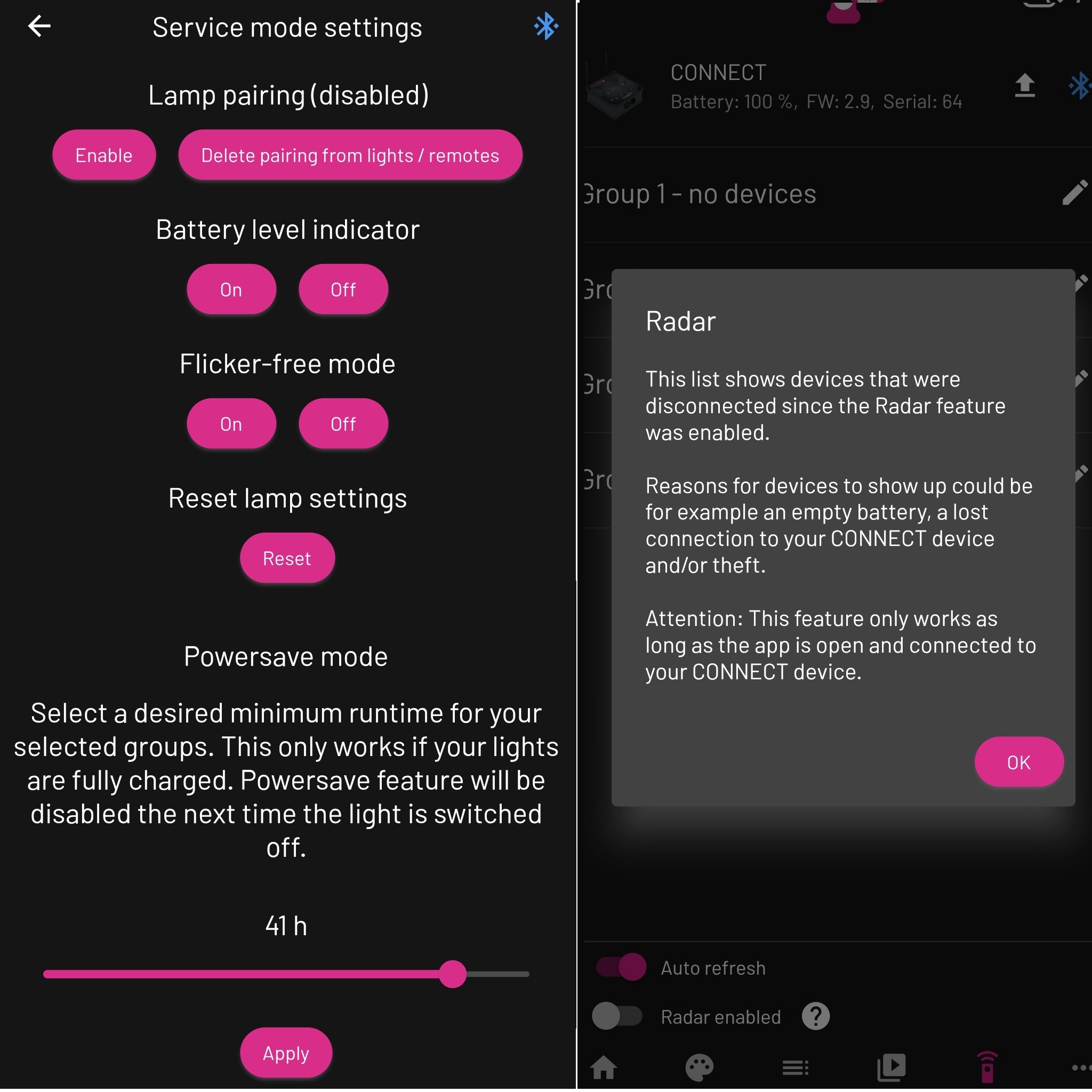

- Set battery run-time to auto-adjust fixture brightness

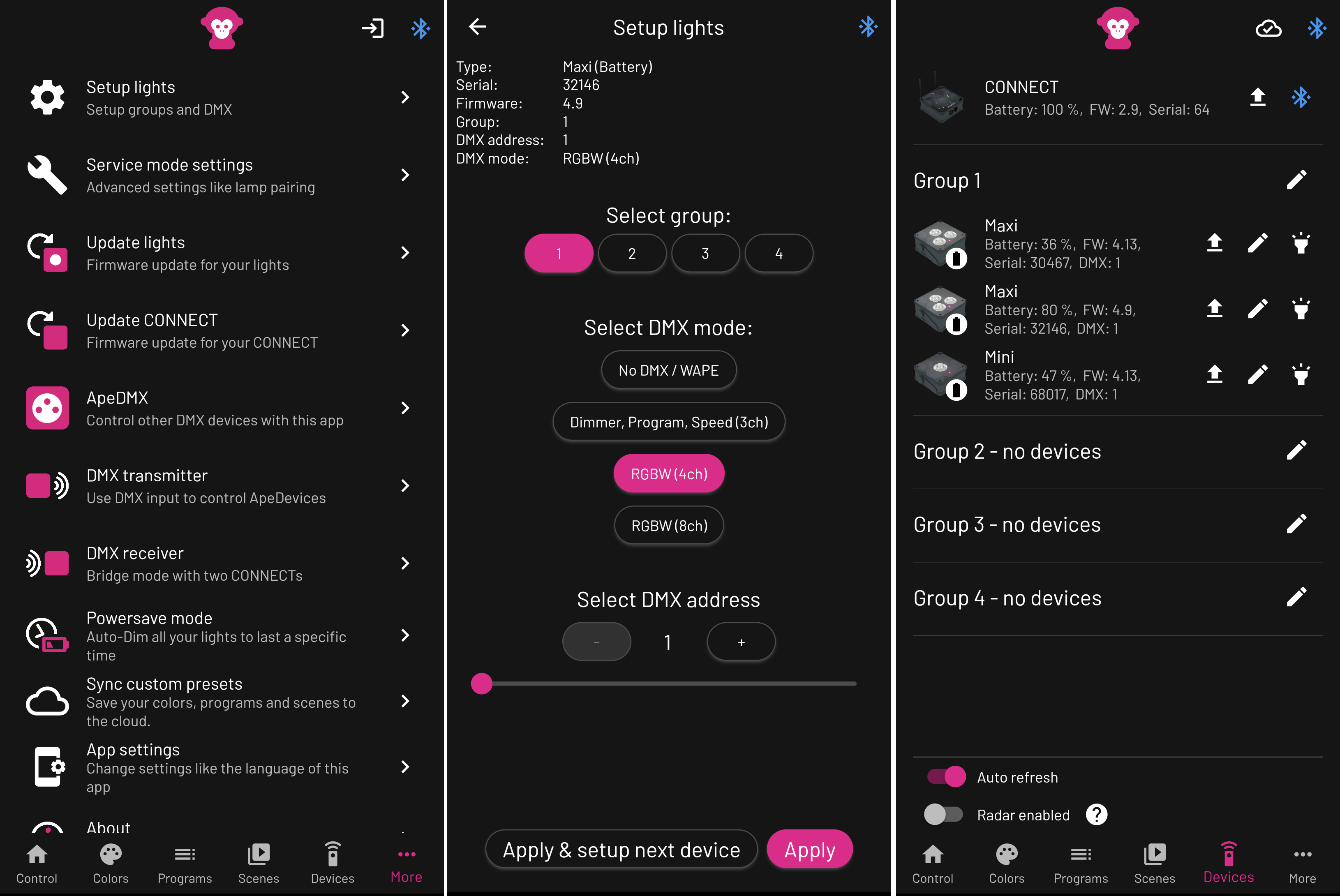

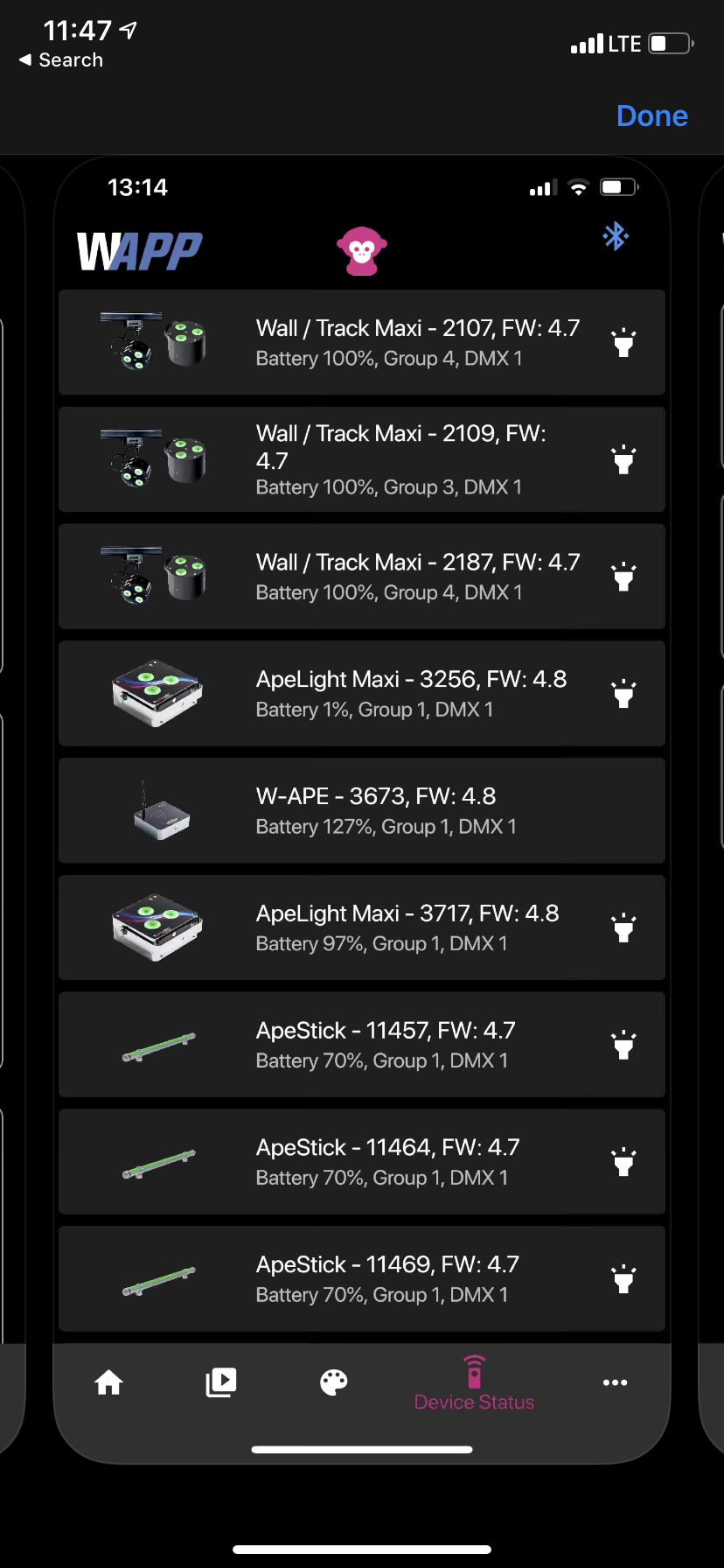

- Address and configure fixtures wirelessly
- Universal and individual Sound Active mode options
- Adjust brightness, speed, strobe, and blackout levels (0–100%)
- Transmit up to 4 DMX universes (using multiple units)
W-App Specifications
- Wireless DMX Range: 1,000ft (300m)
- Battery Runtime: Up to 50 hours per charge
- Power Supply: 100-240V / 50-60Hz
- DMX Connectors: 3-pin Neutrik in/out
- Dimensions: 6.1 x 4.7 x 2 in (15.5 x 12 x 5 cm)
- Weight: 1.54 lbs (0.7 kg)

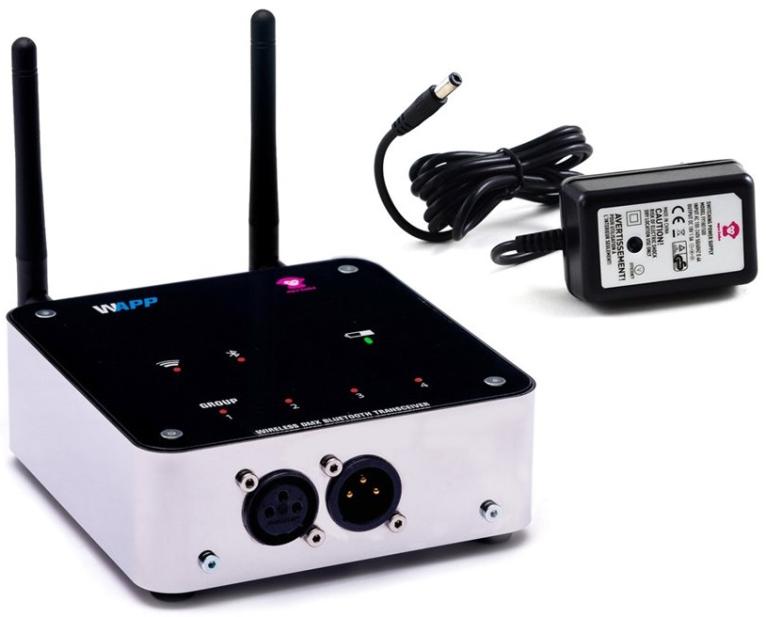

What's In The Box
- 1x W-App
- 2x Omnidirectional Antenna
- 1x Power Supply Unit (100–240V)
- Unlimited downloads of the Ape Labs iOS/Android App
