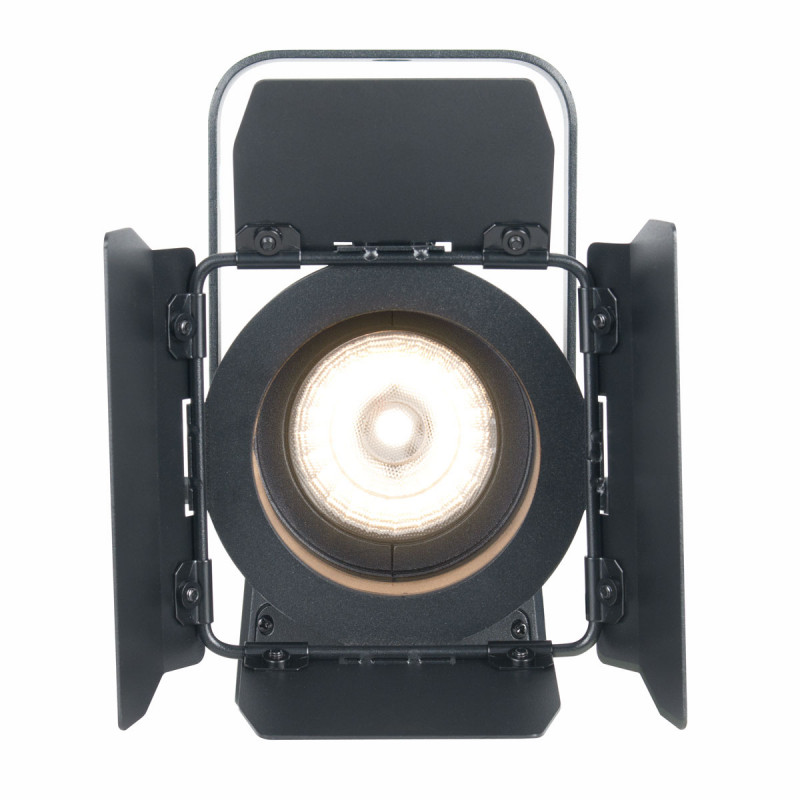

Part of the Encore stage lighting series, the Encore FR20 DTW lighting fixture is equipped with a 2-inch Fresnel lens and powered by a 17W warm white LED engine. It produces a soft-edged beam for stage, theatre and commercial use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual knob to change the dimming from 100% to 0% with a dim to warm feature. It is also Triac dimmable - compatible with ADJ dimmer packs or Lutron and Leviton wall dimmers.
The Encore FR20 DTW comes equipped with a hanging bracket, barn doors to manually shape the beam of light, a frost filter to change the beam angle from 19-degrees to 45-degrees, gel frame to add a color gel (sold separately) and a safety cable.
Specifications
• 17W warm white LED engine
• 2-inch Fresnel lens
• Dimming potentiometer: 0-100%
• Dim to warm feature
• Triac dimmable - compatible with Lutron & Leviton wall dimmers or ADJ Dimmer Packs (DP-415R, DP-DMX20L, Uni Pak II)
• CRI 92
• Color Temperature: 3000K
• Beam angle: 19-degrees
• LUX @ 3M: 600
• LED Life: 50,000 hours
• Includes hanging bracket
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 10.25” x 5.25” x 8.25” / 259x133x210mm
• Weight: 5 lbs. / 2 kg.
Inside the Box:
• Removable Barn Doors
• Safely Cable
• Gel Frame (to add a color gel - sold separately)
• Frost Filter to change beam angle to 45-degrees
• 2 Retainer Rings
• Gold Snoot
• Metal Spacer
