All-in-One Wash, Blinder, and Chase Effect Light
The

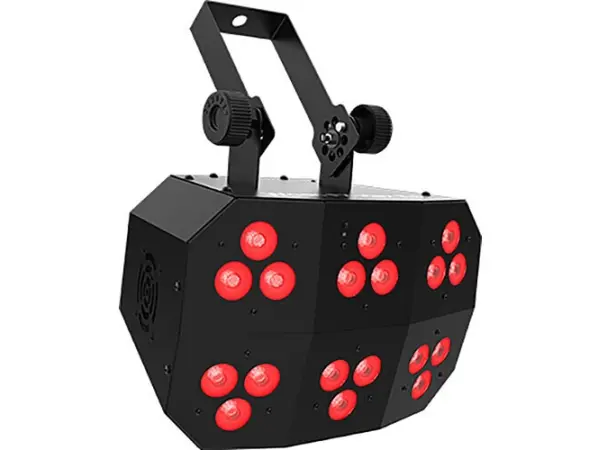

Chauvet DJ Wash FX Hex ILS is a powerhouse fixture that delivers vibrant wash lighting, dazzling chase effects, and powerful blinder bursts—all in one compact unit. With six chasing zones and high-output hex-color (RGBAW+UV) LEDs, this fixture is built to elevate your light show with bold colors, natural-looking whites, and ultraviolet flair.
Chauvet DJ Wash FX Hex ILS Competitive Differences
- Combines wash, blinder, and eye-candy effects into a single unit
- Six individually controlled zones for complex chasing and animation
- Hex-color LEDs provide an extended color palette with UV effects
Chauvet DJ Wash FX Hex ILS Description
Take your lighting rig to the next level with the versatile
Wash FX Hex ILS. This fixture is ideal for DJs, clubs, mobile entertainers, and events looking to maximize lighting flexibility with a single fixture. Whether you're using it as a wash to light up a space, a blinder to wow the crowd, or an effect light with chase zones, this unit does it all.
Its ILS (Integrated Lighting System) compatibility makes syncing with other ILS-enabled fixtures seamless, and D-Fi USB compatibility opens the door to wireless DMX or master/slave control. You also get multiple control options including DMX, stand-alone, IRC-6 remote, and master/slave mode for plug-and-play operation.
Model Features
- All-in-one fixture: blinder, chase, and wash light
- Six chasing zones for dynamic, animated effects
- RGBAW+UV LEDs generate a full spectrum of vivid colors and white tones
- ILS compatible for easy, synchronized light shows
- D-Fi USB support for wireless DMX or Master/Slave control (D-Fi USB sold separately)
- Control modes: DMX, stand-alone, IR remote, or master/slave
- Compatible with the Chauvet IRC-6 remote
- Compact, rugged build ideal for mobile setups
Model Specifications
- DMX Channels: 3, 6, 11, or 40
- DMX Connectors: 3-pin XLR
- Light Source: 18 LEDs (10W each, RGBAW+UV), 50,000-hour lifespan
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 44° / Field Angle: 77°
- Illuminance: 3,204 lux @ 2 m
- Wavelength (UV): 395–405 nm
- Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 160 W, 1.3 A @ 120 V, 60 Hz
- Power Linking: 6 units @ 120 V; 11 units @ 230 V
- Size: 11 x 9.5 x 7.1 in (280 x 240 x 180 mm)
- Weight: 6.8 lbs (3.1 kg)
- Approvals: CE, RoHS, UKCA
What's In The Box
- Wash FX Hex ILS
- Power Cable
- Quick Reference Guide
Chauvet Wash FX ILS Hex
(Chauvet DJ Wash-FX-Hex Instant Light Show)
