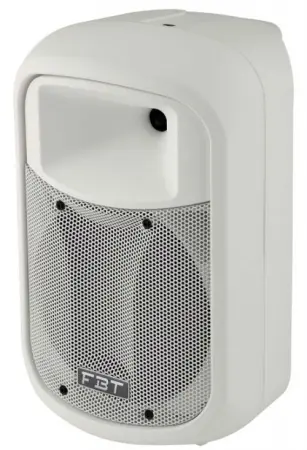

FBT J8AW
$700.00
The FBT J8AW is a two-way 8" 200W+50W RMS professional speaker with 2 DSP presets. It can be used in various environments for applications such as live stage, theater, clubs, gyms, bars, and more. It features a frequency response of 60 Hz to 20 kHz and is designed with an on-board digital signal processor to adjust the dynamic range and to protect high SPL during performance.
The built-in class D amplifier for the J 8A uses 200W RMS for the low frequency driver and 50W RMS for the 1" AF compression driver. The polypropylene enclosure houses the 2-way bass-reflex speaker and also the 90 x 60° directivity horn. The speaker is built with two M6 anchoring points for attaching to a wall and has a built-in integrated carry handle. Also, an AC power cable is included.
Features:
High efficiency switch mode power supply
Features a 8" (203 mm) woofer with improved efficiency and linearity with a 1" (25mm) HF compression driver
On-board digital signal processing with protection for high SPL and high reliability during performance
2 DSP presets for maximum acoustical flexibility
Polypropylene enclosure with integrated handles
2x M6 anchoring points
Specifications:
Configuration
2 way
Amplifier Continuous RMS
LF 150, HF 40
Max. Continuous Power RMS
LF 200, HF 50
Amplifier Max Peak
LF 400, HF 100
Frequency Response
60 Hz to 20 kHz
Low Frequency Driver
8" (203 mm) - 1.7" (43 mm) coil
High Frequency Driver
1" (25 mm) - 1" (25 mm) coil
Maximum Sound Pressure Level (SPL)
Continuous 120, peak 124
Dispersion
90 x 60°
Input Impedance
22 kOhms
Crossover Frequency
2.5 kHz
AC Power Requirements
160 VA
Input Connectors
XLR-jack with loop
Power Cord
16.4' (5.0 m)
Dimensions (W x H x D)
10.0 x 16.3 x 9.6" (255 x 415 x 245 mm)
Weight 18.7 lb (8.2 kg)
