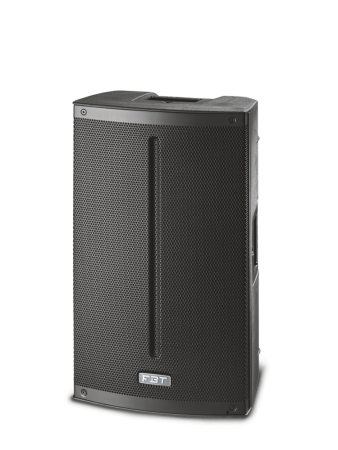

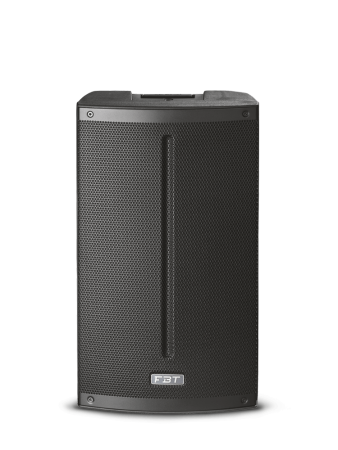

The FBT XLITE 112A series speakers with integrated 3-channels mixer feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish, the FBT XLITE 112A series speakers provide fixed installations with an elegant design that blends into any decor.
The asymmetrical shape of the FBT XLITE 112A cabinet also allows use as a powered floor stage monitor.
The FBT XLITE 112A is two way design incorporating a 12” low frequency woofer and 1” HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz - 20kHz the FBT XLITE 112A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 129dB.
The bi-amplified FBT XLITE 112A active speaker feature a 1200W low frequency amp and a 300W high frequency amp.

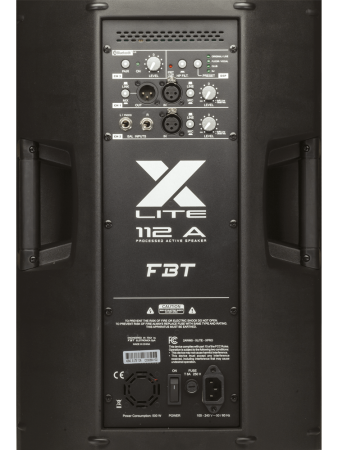

The control panel features a three-channel mixer with two micro-line inputs, a stereo input and a dedicated channel for bluetooth 5.0; two xlr inputs, stereo input, xlr output with ch1 or mix link selector, hp filter, two mic-line selectors, dsp preset selector, bluetooth 5.0 with pairing led. 4 x M10 rigging points built-in into the cabinet along with the optional mounting brackets allow the FBT XLITE 112A speaker to be surface mounted on walls or ceilings.
A standard 1.38” speaker stand socket allows the FBT XLITE 112A to be mounted on speaker stand.
FEATURES:
2-way bi-amplified system in bass reflex
Polypropylene molded enclosure
Woofer custom 12” (LF) / 2,5” voice coil
1” throat / 1,4” voice coil HF compression driver
1200/300W built-in amplifier (LF/HF)
Bluetooth 5.0
3-channels mixer
4 DSP presets
30° / 45° monitor taper
Universal switching mode power supply 100-240 VAC
M10 rigging points
4 DSP presets
SPECIFICATIONS:
CODE:
43543
CONFIGURATION:
2 way
BUILT-IN AMPLIFIER LF/HF:
1200/300
FREQUENCY RESPONSE:
50Hz - 20kHz
LOW FREQUENCY WOOFER:
12 - 2.5 coil
HIGH FREQUENCY DRIVER:
1 - 1.4 coil
MAXIMUM SPL CONT/PEAK:
124/129
DISPERSION:
90°x60°
INPUT IMPEDANCE:
22
INPUT CONNECTOR:
XLR IN/OUT, Jack ST
POWER CORD:
9.8ft / 3mt
NET DIMENSION (WXHXD):
14.01x24.37x14.05 / 356x619x357
NET WEIGHT:
35.93/16.3
TRANSPORT DIMENSION (WXHXD):
17.32x27.55x17.51 / 440x700x445
TRANSPORT WEIGHT:
41.66/18.9
