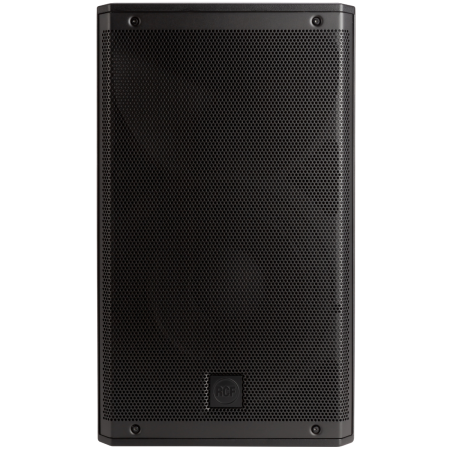

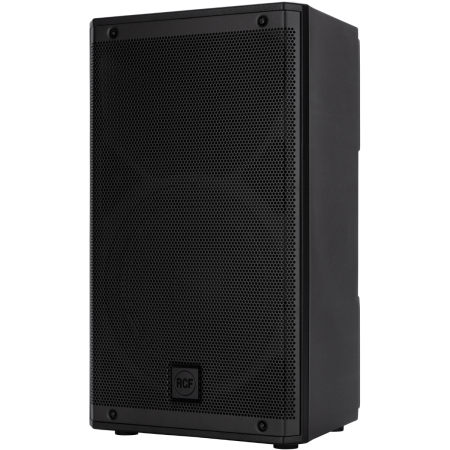

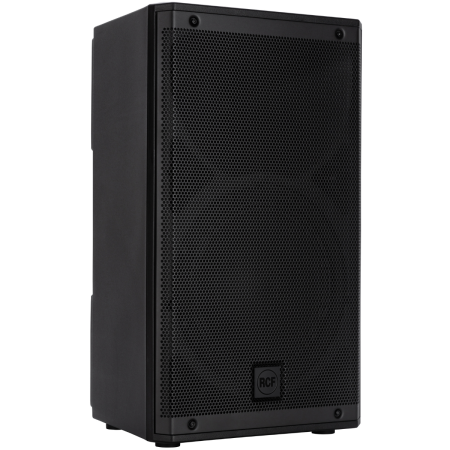

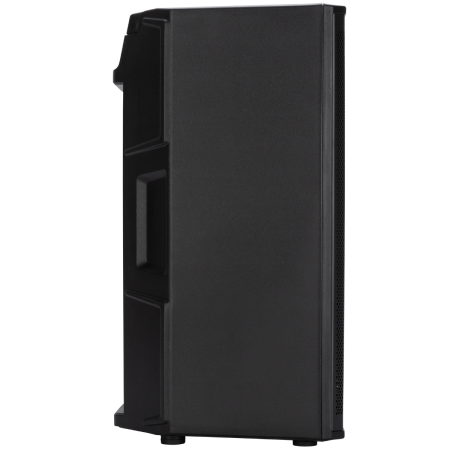

RCF ART 810A

Powered PA Speaker

RCF ART 810-A is a compact 10-inch powered PA speaker designed for DJs, musicians, live sound, portable systems, venues, and installed applications. With 1400W peak Class D bi-amplification, FiRPHASE processing, XBOOST low-frequency enhancement, and a True Resistive Waveguide, it delivers clear, high-output sound with consistent 100° x 60° coverage.

RCF ART 810-A Competitive Differences

• 10-inch powered speaker with 129dB max SPL in a compact enclosure
• 1400W peak Class D bi-amplification with 1000W peak LF and 400W peak HF power
• FiRPHASE technology supports phase-coherent sound, clarity, and imaging
• XBOOST low-frequency enhancement adds extra bass depth when more impact is needed
• True Resistive Waveguide provides consistent 100° x 60° coverage across the listening area

RCF ART 810-A Description

The RCF ART 810-A is a portable 2-way active speaker built for users who need professional sound, strong output, and everyday versatility in a smaller footprint. Its 10-inch woofer and 1-inch compression driver with 1.75-inch voice coil provide clear vocal reproduction, controlled projection, and full-range performance for mobile DJs, musicians, venues, and installed audio systems.

The 1400W peak two-channel Class D amplifier delivers 1000W peak power to the low frequencies and 400W peak power to the high frequencies. With a maximum SPL of 129dB and a frequency response of 50Hz - 20kHz, the ART 810-A is suitable for music playback, vocal reinforcement, compact PA systems, stage monitoring, and installations where size and output both matter.

RCF FiRPHASE processing is designed to improve sound coherence, clarity, and imaging while maintaining low system latency. The rear-panel XBOOST control adds extra depth and impact to the low-frequency response, making it easy to adapt the speaker to the room, performance, or listening level.

The reinforced polypropylene composite enclosure uses internal M-Brace reinforcement to increase rigidity and reduce unwanted vibration at high volume. With a heavy-duty steel grille, top handle, 35 mm pole mount, and M10 mounting points, the RCF ART 810-A is ready for portable deployment, pole mounting, wall or truss installation, and flown setups.

ART 810-A Features

• 10-inch 2-way powered PA speaker
• 129dB maximum SPL at 1 meter
• 1400W peak Class D bi-amplification
• 1000W peak low-frequency amplifier power
• 400W peak high-frequency amplifier power
• 1-inch compression driver with 1.75-inch voice coil
• 10-inch woofer with 2.5-inch voice coil
• FiRPHASE digital processing for phase-coherent sound
• XBOOST low-frequency enhancement
• True Resistive Waveguide for consistent coverage
• 100° x 60° coverage pattern

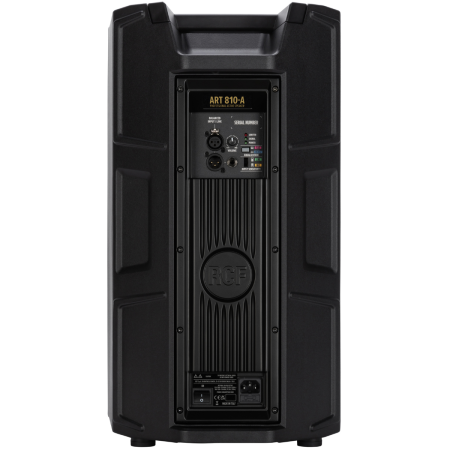

• Volume, Boost, and MIC/Line controls
• Balanced and unbalanced input support
• XLR and jack input connectors
• XLR output connector
• Thermal and RMS protection
• Soft limiter processing
• Convection cooling
• Reinforced polypropylene composite cabinet
• Internal M-Brace reinforcement
• Heavy-duty steel grille

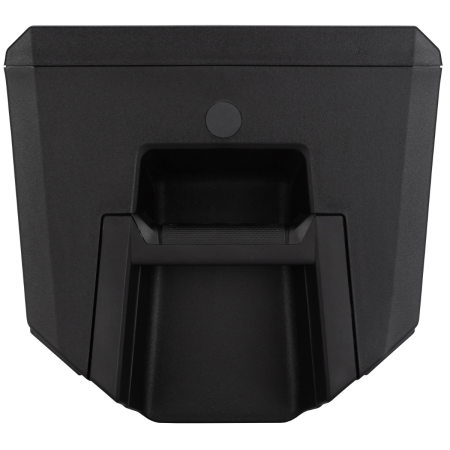

• Top handle for transport

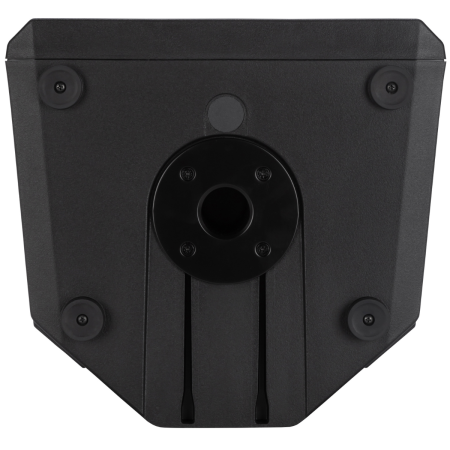

• 35 mm pole mount insert
• 2 x M10 mounting points on top and bottom side

ART 810-A Specifications

• System Type: Powered PA Speaker
• Configuration: 2-way active
• Frequency Response: 50Hz - 20kHz
• Max SPL: 129dB @ 1m
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 60°
• Compression Driver: 1 x 1.0 in, 1.75 in voice coil
• Woofer: 10 in, 2.5 in voice coil
• Input Signal: Balanced / unbalanced
• Input Connectors: XLR, jack
• Output Connector: XLR
• Input Sensitivity: -2dBu / +4dBu
• Microphone Input Sensitivity: -32dBu
• Crossover Frequency: 1600Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, Boost, MIC/Line
• Total Power: 1400W peak
• High-Frequency Power: 400W peak
• Low-Frequency Power: 1000W peak
• Cooling: Convection
• Power Connection: VDE
• RCF Technology: FiRPHASE, XBOOST
• Safety Agency: CE compliant
• Cabinet Material: Polypropylene composite
• Hardware: 2 x M10, top and bottom side
• Handles: 1 on top
• Pole Mount: 35 mm insert
• Grille: Steel
• Color: Black
• Height: 22.24 in (564.9 mm)
• Width: 12.99 in (329.9 mm)
• Depth: 12.21 in (310.2 mm)
• Weight: 35.27 lb (16 kg)
• Part Number 100-120V: 13000997
• EAN Code: 8024530025168

RCF ART 810-A (RCF ART-810-A)
