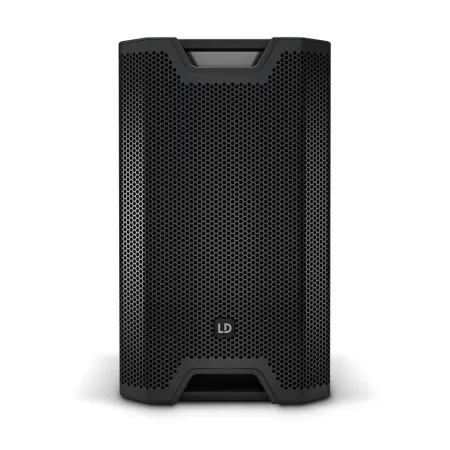

The ICOA 15 A BT with Bluetooth by LD Systems is a genuine all-rounder for full-range, satellite and monitor applications. This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this active 15" loudspeaker exceptionally flexible.
Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Features:
Bluetooth® streaming with the BT model
128 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent Pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
Shock-resistant front grille for optimal protection of the speaker
4 aluminium grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 300 W RMS performance. Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.
Specifications:
Product Type: PA Loudspeaker
Type: Actives
Low/Mid Driver Dimensions: 15 "
Woofer Size: 381 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-made
Horn: BEM optimized CD Horn
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: Custom-made
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H x V): 90 ° x 50 °
RMS: 300 W
Peak Power: 1200 W
Frequency Response: 48 - 20000 Hz
Crossover Frequency kHz: 2 kHz
Max. SPL (peak): 128 dB
Protection Circuits: Multiband limiter, over voltage, over-current, thermal overload
Controls: 2 x gain, On / off switch, Rotary/push encoder
Indicators: LC Display
Mic/ Line Inputs: 2
Mic-/ Line Input Connectors: 6.3 mm jack Combination sockets (symmetrical), XLR
Line Inputs: 1
Line Input Connectors: 3.5 mm TRS
Line Outputs: 1
Line output Connectors: XLR
Operating Voltage: SMPS
Power Consumption: 150 W
Ambient Temperature (In Operation): 0 - 40 °C
Operating Voltage: 100 V - 240 V AC / 50 - 60 Hz
Relative Humidity: < 80 %, not condensing
Fuse: T4AL 250 V
Cabinet Material: Polypropylene
Cabinet Construction: Bass Reflex
Tripod Flange: 32 °F, 36mm flange, 5°
Monitor Angle: 55 °
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24,3 kg
Accessories (Included): Power cord
