FBT X-Lite 110A

Powered PA Speaker

The FBT XLITE 110A is a 2-way powered PA speaker that combines a 10-inch woofer, 1500W peak bi-amplification, and an integrated 3-channel mixer with Bluetooth 5.0. Designed for speech and music applications, it supports portable sound reinforcement, stage monitoring, and permanent installations.

FBT XLITE 110A Competitive Differences

• Independent LF and HF amplifiers provide 1200W and 300W peak power respectively, with a maximum peak SPL of 127 dB.
• Integrated 3-channel mixer with two mic/line inputs, a stereo input, and a dedicated Bluetooth 5.0 channel accommodates wired and wireless sources.
• Four DSP presets and a high-pass filter provide onboard sound adjustment.
• Asymmetrical cabinet with 30° and 45° monitor angles supports floor stage monitor use.
• Four M10 rigging points and a 35 mm stand socket offer installation and portable mounting options.

FBT XLITE 110A Description

The FBT XLITE 110A pairs a custom 10-inch low-frequency woofer with a 2.5-inch voice coil and a 1-inch-throat HF compression driver with a 1.4-inch voice coil. A 90° horizontal by 60° vertical constant-directivity horn provides defined coverage, while the 58 Hz–20 kHz frequency response accommodates both spoken word and music.

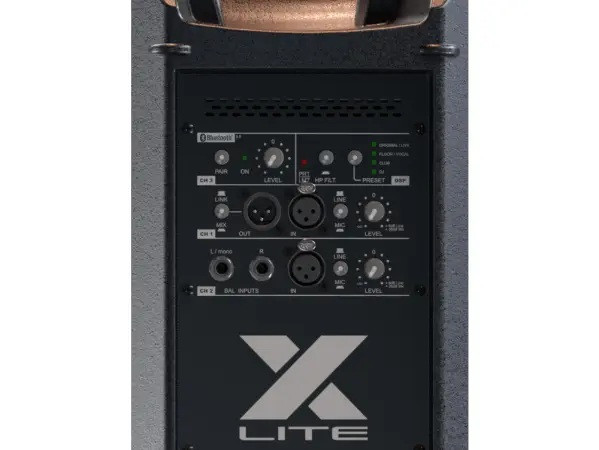

The onboard mixer simplifies source connection for performers, presenters, and installed sound systems. The control panel includes two XLR inputs, a stereo input, two mic/line selectors, and Bluetooth 5.0 with a pairing indicator. An XLR output with a channel 1 or mix link selector allows signal routing to additional equipment.

A gas-injected molded polypropylene enclosure combines lightweight construction with durability. Finished in black, the cabinet blends into fixed installations and can also serve as a powered floor monitor. Optional mounting brackets allow wall or ceiling installation using the built-in M10 rigging points, while the standard 35 mm socket accommodates speaker stands.

XLITE 110A Features

• 2-way bi-amplified bass-reflex system
• Gas-injected molded polypropylene enclosure in black
• Custom 10-inch LF woofer with 2.5-inch voice coil
• 1-inch-throat HF compression driver with 1.4-inch voice coil
• 90° H x 60° V constant-directivity horn
• Built-in LF and HF amplifiers rated at 1200W and 300W peak
• Integrated 3-channel mixer
• Bluetooth 5.0 with dedicated channel and pairing LED
• Two XLR inputs, stereo input, and two mic/line selectors
• XLR output with channel 1 or mix link selector
• High-pass filter and four selectable DSP presets
• 30° and 45° floor monitor angles
• Four M10 rigging points for use with optional mounting brackets
• Standard 35 mm speaker stand socket
• Universal 100–240 VAC switch-mode power supply

XLITE 110A Specifications

• Configuration: 2-way, bi-amplified bass reflex
• Frequency Response: 58 Hz–20 kHz
• LF Driver: 10-inch woofer; 2.5-inch voice coil
• HF Driver: 1-inch throat; 1.4-inch voice coil
• Built-In Amplifier Peak Power: 1200W LF + 300W HF; 1500W total
• Maximum SPL, Continuous/Peak: 123/127 dB
• Dispersion: 90° horizontal x 60° vertical
• Mixer: 3 channels
• Wireless Connectivity: Bluetooth 5.0
• DSP Presets: 4
• Connections: Two XLR inputs, stereo input, and XLR output
• Power Supply: 100–240 VAC
• Rigging Points: Four M10
• Stand Socket: 35 mm
• Dimensions (W x H x D): 11.81 x 21.10 x 11.87 in (300 x 536 x 301.5 mm)
• Net Weight: 28.7 lb (13 kg)
• Shipping Dimensions (W x H x D): 14.57 x 24.21 x 14.96 in (370 x 615 x 380 mm)
• Shipping Weight: 32.6 lb (14.8 kg)
• Finish: Black
