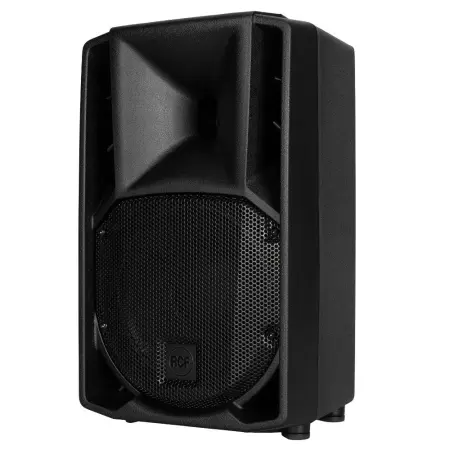

ART 708-A MK5 is a unique product in its category. The 1.4" compression driver offers unique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
FEATURES:
128 dB Max SPL
1400 WATT 2-way peak power
90° x 70°, Wide dispersion constant directivity horn
Innovative DSP Processing
1,4" Compression Driver.
8" Woofer
FiRPHASE Technology
XBOOST Low Frequencies Enhancer
SPECIFICATIONS:
ACOUSTICAL SPECIFICATIONS
Frequency Response
60 Hz ÷ 20000 Hz
Max SPL @ 1m
128 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
TRANSDUCERS
Compression Driver
1 x 1.0'', 1.4'' v.c
Woofer
1 x 8'', 2.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
PROCESSOR SECTION
Crossover Frequencies
1600
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
POWER SECTION
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Hardware
2 x M10
Handles
1 on top
Pole mount/Cap
Yes
Color
Black
SIZE
Height
480 mm / 18.9 inches
Width
291 mm / 11.46 inches
Depth
276 mm / 10.87 inches
Weight
10.4 kg / 22.93 lbs
SHIPPING INFORMATION
Package Height
520 mm / 20.47 inches
Package Width
331 mm / 13.03 inches
Package Depth
346 mm / 13.62 inches
Package Weight
12.2 kg / 26.9 lbs
