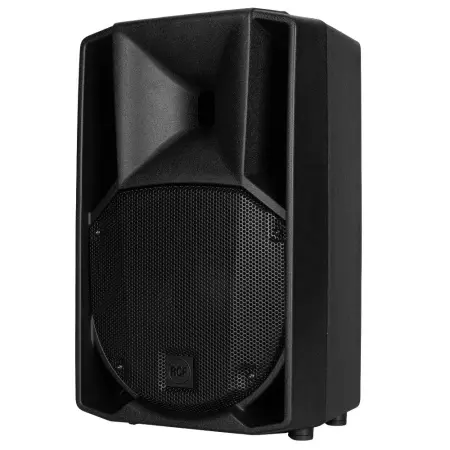

ART 710-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 10” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
FEATURES:
129 dB Max SPL
1400 WATT 2-way peak power
90° x 70°, Wide dispersion constant directivity horn
Innovative DSP Processing
1,75" Compression Driver
10" Woofer
FiRPHASE Technology
XBOOST Low Frequencies Enhancer
SPECIFICATIONS:
ACOUSTICAL SPECIFICATIONS
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
129 dB
Horizontal coverage angle
90°
Vertical coverage angle
70°
TRANSDUCERS
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 10'', 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Mic. Input Sensitivity
-32 dBu
PROCESSOR SECTION
Crossover Frequencies
1600
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, Boost, MIC/Line
POWER SECTION
Total Power
1400 W Peak
High frequencies
400 W Peak
Low frequencies
1000 W Peak
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Hardware
2 x M10
Handles
1 on top
Pole mount/Cap
Yes
Color
Black
SIZE
Height
548 mm / 21.57 inches
Width
340 mm / 13.39 inches
Depth
305 mm / 12.01 inches
Weight
14.2 kg / 31.31 lbs
SHIPPING INFORMATION
Package Height
585 mm / 23.03 inches
Package Width
425 mm / 16.73 inches
Package Depth
405 mm / 15.94 inches
Package Weight
16.8 kg / 37.04 lbs
