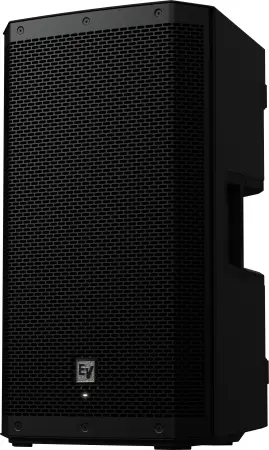

Electro-Voice ZLX12P G2

ZLX-G2 loudspeakers are offered in 8, 12, and 15-inch
woofer sizes.

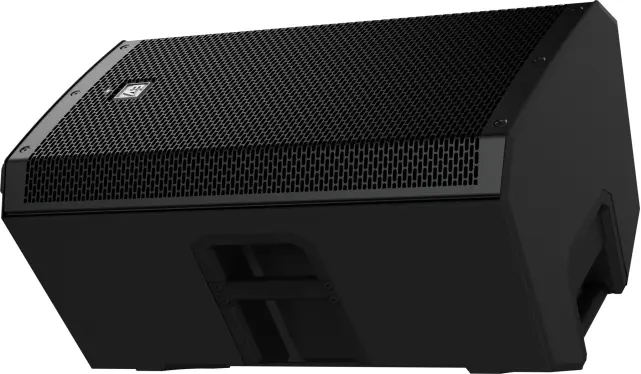

Building on the tried and tested ZLX series, ZLX-G2
loudspeakers feature an improved angled cabinet
design allowing for a 55-degree monitor angle. 12 and
15-inch models additionally include a “kickback” 25-
degree monitor angle.
ZLX-G2 loudspeakers offer the best-in-class acoustic
output. Electro-Voice patented SST baffle design
ensures improved bass, small size, and even coverage
across all frequencies.
ZLX-12-G2 uses industry standard NL4 connections. The
two NL4 connectors are in parallel and pass through all
pins.
For optimal acoustics and performance, ZLX-12-G2 is
recommended to be used with a Dynacord DSP power
amplifier programmed with the appropriate speaker
settings included in the ZLX-G2 Database for SONICUE.

ZLX-G2 family accessories such as padded covers, a U-
bracket for wall mounting 12- and 15-inch models, and

short and long wall mount brackets for use with the
speaker pole mounts are available.

FEATURES:

High Quality Stereo Bluetooth® 5.0 streaming.
Easy to use with QuickSmart Mobile app and
Electro-Voice's Intuitive User Interface.
POWERED BY DYNACORD with built-in digital
4-channel mixer.
Large full color LCD display.
Controls and connections easily accessible even
in monitor position.

SPECIFICATIONS:

Frequency response (-3 dB) (Hz) 1

54 Hz – 18,500 Hz
Frequency range (-10 dB) (Hz) 1,2 48 Hz – 20,000 Hz
Maximum sound pressure level at a
distance of 1 m (dB) 3

127 dB
Coverage angle HxV (°) 90° x 60°
Crossover frequency (kHz) 1.40 kHz
Power rating (W) 1000 W
Power consumption (V, Hz) 4

100 - 240 V~, 50 - 60 Hz
LF transducer WECA2128
LF transducer size (in) 12 in
LF transducer magnet material Ferrite
HF transducer DECA2516
HF transducer type Compression driver
HF transducer size (in) 1.40 in
Hf transducer magnet material Ferrite
HF transducer diaphragm material Titanium
Connector type (2) XLR/TRS combo, (1) 1/4-inch TS

Hi-Z
Material Polypropylene
Grille material Powder coated steel
Dimensions (H x W x D) (mm) 621.1 mm x 356.2 mm x 356 mm
Dimensions (H x W x D) (in) 24.45 in x 14.02 in x 14.01 in
Shipping dimensions (H x W x D)
(mm)

670 mm x 420 mm x 405 mm
Shipping dimensions (H x W x D) (in) 26.38 in x 16.54 in x 15.94 in

EV ZLX-12P G2 (Electro-Voice ZLX-12P-G2 Powered)
