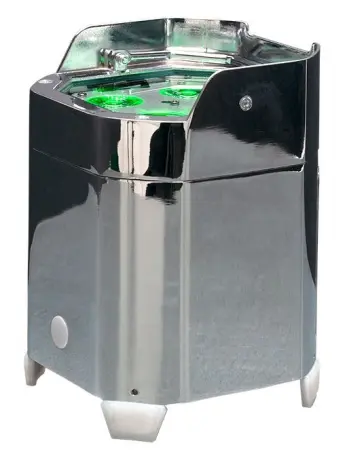

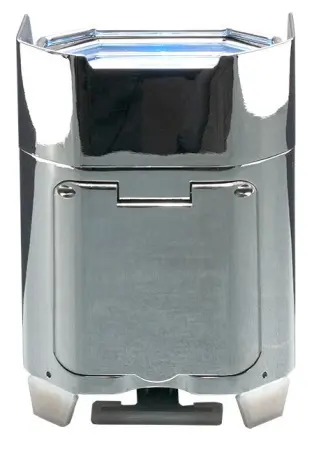

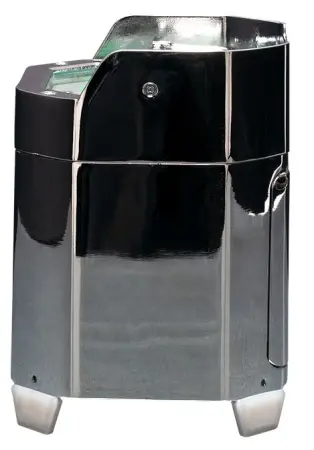

The Element HEX IP Chrome is a battery powered, WiFLY wireless DMX LED Par Series from ADJ. The Element HEX IP Chrome features a chrome housing, four 10W RGBAW+UV (6-IN-1) LEDs and is IP54, outdoor rated, intended for indoor or outdoor use.
From the Element Par Series, the Element HEX IP Chrome is an IP54 outdoor rated battery powered LED Par with ADJ’s WiFLY EXR wireless DMX for indoor or outdoor use. It has a chrome housing and is powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are light-weight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!
Features:
• IP54 Outdoor Rated
• All chrome housing

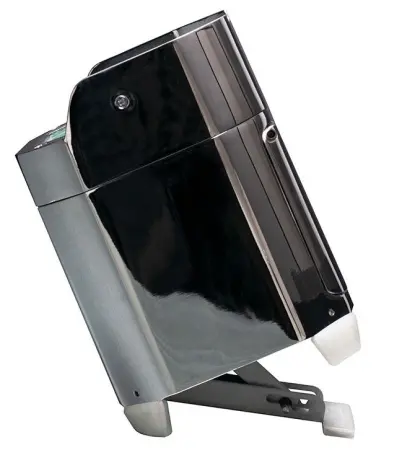

• Built-in kickstand to angle figure while it’s on the floor

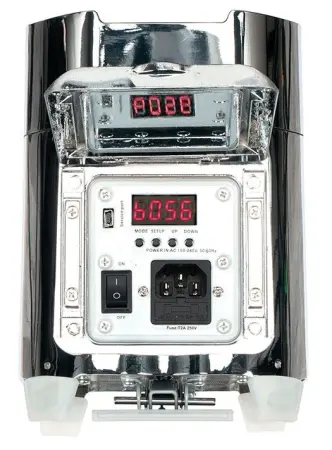

• 4-button DMX menu display on rear panel with water resistant hatch
• USB firmware update port
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR Battery Transceiver
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night – No duty cycle
• Energy Saving Mode
Specifications:
Optical:
• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684 @ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz
Connection:
• DMX: WiFLY EXR Wireless DMX
• With Wired Digital Communication Network
• IEC connection to power/charge fixture
Control:
• Control protocol: WiFLY EXR DMX
• 5 DMX Channel modes: 6, 7, 8, 11, or 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled
Battery:
• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 16 hours ( Full charge, single color, Battery Saving mode ON)
Electrical:
• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz
Dimensions / Weight:
• Dimensions (LxWxH): 5.5” x 5.5” x 7.5” / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.
Certifications:
• cETLus Approved (Control #4002034)
• CE Approved
• IP54 Outdoor rated
