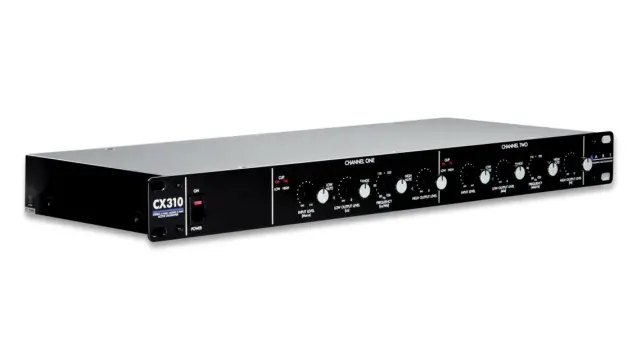

The ART CX310 is a perfect addition to any sound reinforcement system. Designed for PA and fixed-installation applications, the CX310 employs 24dB/ octave state-variable, fourth-order, Linkwitz-Riley filters. These filters guarantee in-phase outputs at all frequencies. This ensures the proper acoustic summing of common signals from adjacent drivers in the crossover region. Housed in a rugged all-steel chassis, the model CX310 will provide years of reliable and continuous service.
The CX310 may be used as either a stereo 2-way crossover network, splitting the signal in each channel into two separate frequency ranges (Lo and Hi), or as a mono 3-way crossover network, splitting one signal into three separate frequency ranges (Lo, Mid and Hi).
FEATURES:

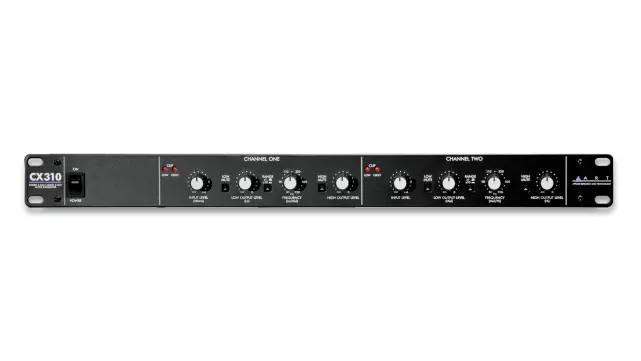

Each channel features input level, high and low output level and crossover frequency rotary controls
Frequency x10 switch provided for varying the crossover frequency from the standard 80Hz -920Hz to 800Hz – 9200Hz.
Front-panel output mute switches for each individual output to ease system setup.

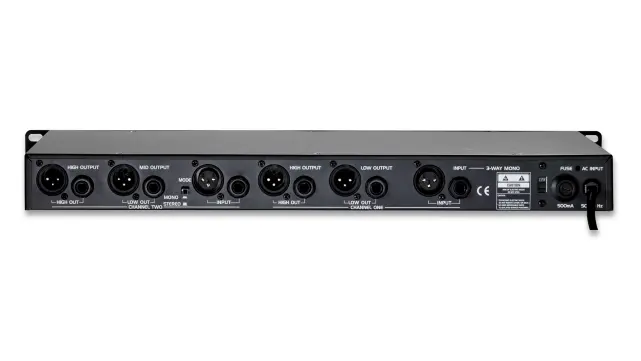

Rear panel features balanced XLR and 1/4” TRS input and output connectors as well as a 2- way/ 3-way mode selector switch.
Power for the CX310 is internal
SPECIFICATIONS:
Input Connections XLR, 1/4” TRS, balanced
Output Connections XLR, 1/4” TRS, balanced
Frequency Response 10Hz to 20kHz, +0/-1.5dB
Crossover Frequency Range
x1 80Hz to 920Hz
x10 800Hz to 9.2kHz
Crossover Filter Type Fourth-order Linkwitz-Riley, 24dB/octave
Dynamic Range 118dB
Signal to Noise Ratio >85dB
Input Impedance 20k Ohms
Output Impedance 150 Ohms
Maximum Input Level +13dBu
Maximum Output Level +21dBu
Total Harmonic Distortion (THD) <0.05% (20Hz-20kHz)
Maximum Gain +4dB
Power Requirements 105-120V AC, 50-60hz, 3VA (USA)
Export units configured for country of destination
Dimensions (HWD) 1.75” x 19” x 6.5”
44mm x 483mm x 165mm
Weight 7.1 lbs. (3.2 kg)
