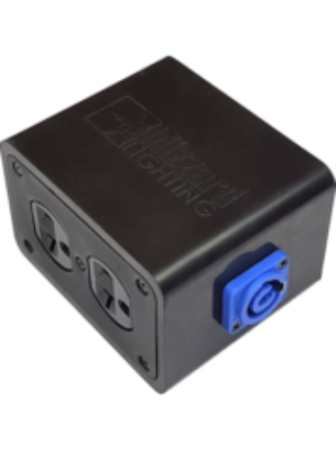

Power Thru + 4 Outlet Stage Drop Boxes
Drop power drop boxes are designed to give you safe and reliable power connections anywhere you need it, quickly and easily. Like all magnificent things, it’s simple!
These stage power drop boxes come in your choice of either the PC (powerCON compatible), or TRUE (powerCON TRUE1 compatible.) Each model gives you In/Out power thru connections on either end, plus a total of 4x 20A Edison power outlets (two per side.)
They feature 12ga internal wiring with fully soldered connections, and an extremely tough molded rubber outer casing. Users can power link as many drop boxes as needed for any given application. They are great for any type of stage work, truss work, or any place you need portable, expandable power.
There is also a convenient blue LED power indicator on the face of each unit that illuminates when power is being received, so at a glance you will know there is power!
So, trim down those bulky extension cords and power strips today with Drop™ power boxes!
Models:
Drop-PC (powerCON compatible in/out)
Drop-True (powerCON TRUE1 compatible in/out)
Main Features:
Extremely tough molded rubber enclosure
4x 20A Edison power outlets
Compact and convenient
12ga internal wiring with fully soldered connections
Blue LED power indicator
Insulated and resistant to shock, impact, and corrosion
Feed thru allows multiple boxes to be linked together
Connectors
(1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, PowerCON/True1 (compatible) input connection
(4) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC receptacles
(1) 20 Amp, 2 Pole, 3 Wire, 120 VAC, PowerCON/True1 (compatible) output connection
Weight & Dimensions:
4.2” L x 3.5” W x 2.75” H (105 x 88 x 70mm)
Approximate Weight: 1.5 lbs
