Nady U-2100 GT Instrument Bodypack

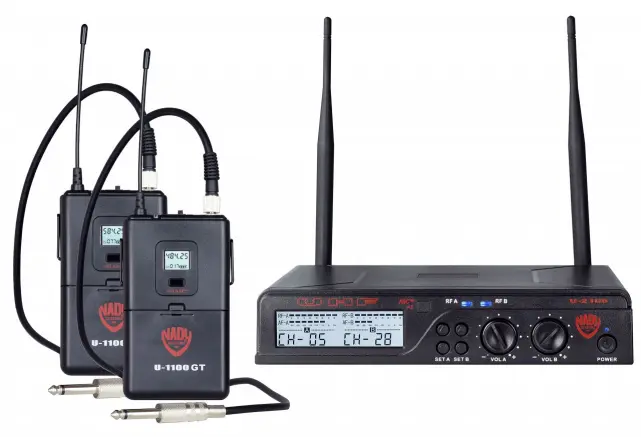

The U-2100 GT Instrument Bodypack from Nady Systems includes a 100-channel U-2100 dual receiver, an power supply, two U-1100GT bodypack transmitters, and two IC-U2 cables. The U-2100 has 100 selectable UHF frequencies to provide clear and transparent audio with full frequency response. The rugged ABS housing doesn't give away for a long time. The system offers uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight.

The IC-U2 Instrument Cable is for use with the GT-1100 bodypack transmitter microphones. It features a 1/4" to 1/8" locking plug.

U-2100 Wireless Receiver:
Uninterrupted PLL UHF performance with 120 dB dynamic range and operation, up to 500' line-of-sight

100 UHF frequencies per band

Frequency Auto-Scan for quickly, conveniently finding a clear channel or user selectable preset channel, with selected channel stored in memory for subsequent use

ASC (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization

Sophisticated IF filtering for optimal simultaneous operation of multiple systems in the same location

Rear panel removable swivel BNC antennas

Front panel touch control buttons for ease of channel selection and ASC operation

Full front panel LCD display (with back lighting) including Channel Selected, RF/AF bar graph, Scan and IR, LEDs TX-ON for A and B channel, Up/Down SET buttons, Power On/Off switch, and volume controls

Back panel, balanced XLR fixed Mic Level and adjustable unbalanced 1/4" jack audio Line Level SUM outputs; squelch (RF mute) adjust; DC input jack, Antenna Jacks

Externally powered with included universal voltages 110 to 220 VAC / 13.5 VDC 400mA adapter

Rugged all ABS plastic housing for long-term durability

Includes two U-1100GT bodypack microphones


U-1100GT Bodypack Transmitter:
Sliding power switch off/ mute/on allows convenient audio muting with the transmitter on

LCD display (with back lighting) including channel and frequency selected, battery level status

Manual selectable channel with up/down recess buttons or ASC sync with RX selected channel and frequency

Convenient, economical operation with two AA alkaline or NiMH batteries

Compact housing, durable external attached antenna and unique locking 1/8" mini plug connector for Instrument cable or mic plug


IC-U2 Instrument Cable:
The IC-U2 Instrument Cable is for use with the GT-1100 bodypack transmitter. It features a 1/4” to 1/8" locking plug


Specifications:
System Performance
Operating Frequency Range A: 480 to 504.75 MHz
B: 505 to 529.75 MHz
Frequency Synthesized: PLL (100 channels selectable) 250 kHz/step
Frequency Stability PII System: <0.005%
Frequency Response 50 Hz to 18 kHz +/-3 dB
Dynamic Range 120 dB
Harmonic Distortion < 0.5%
Modulation FM (F3E) +/-25 kHz normal, +/-75 kHz maximum
Operating Range Typical: 150 to 250' (45.7 to 76.2 m)
Maximum Line of Sight: 500' (152.4 m)
Receiver
System Dual conversion Super Heterodyne
Selectivity Normal: 60 dB
Offset: +/-75 kHz offset
Image Rejection -70 dB, minimum sensitivity, -107 dBm, normal spurious rejection 65 dB, normal
Mute Threshold Adjustable (-65 to -95 dBm)
Controls Group/channel/autoscan, IR ASC sync buttons, power on/off, switch, mute level pot, volume level pot
Display LCD/LED: Two Digits LCD panel indicating selected Channel; RF/AF bar graph indicator, Battery levels, TX Channel A and B LED indicators
Audio Outputs Line-out unbalanced, adjustable line audio output; mic-out balanced, fixed mic level audio output
Output Impedance Unbalanced: 1 kOhm
Balanced: 600 Ohms loads
Power Requirement 13.5 VDC/0.4 A
Antennas Dual removable swivel BNC antenna
Construction Housing: ABS plastic
Dimensions (W x D x H) 8.0 x 6.0 x 1.2" (20.4 x 15.3 x 3.2 cm)
Weight 15.1 oz (428.1 g)
Bodypack Transmitter
RF Output Power 14 dBm (25 mW typical)/50 Ohms
Emission Harmonic/Spurious: -50 dBc normal
Input Impedance 500 kOhms
Controls Power off/on, mute
Input Connector Locking 3.5 mm mini-jack
Display LCD/LED: Channel/frequency, BATT status, mute LED
Antenna Type External
Battery Type 2 x AA alkaline or NiMH
Battery Life 8 to 10 hours typical, alkaline
Construction Housing: ABS plastic
Dimensions (W x H x D) 2.5 x 0.7 x 4.2" (6.3 x 1.9 x 10.7 cm)
Weight 2.6 oz (80.8 g) without batteries
Cable
Plug 1/4" (6.3 mm) to 1/8" (3.5 mm) locking plug

Nady U-2100 GT (Nady U-2100GT)
