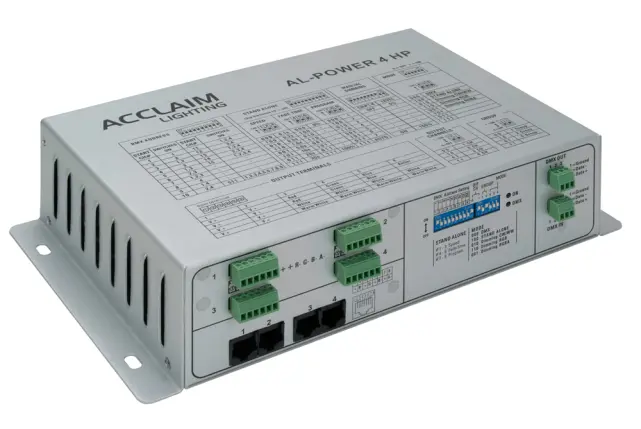

Acclaim AL Power 4 HP
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Model : DCC.111.MADU
The AL Power 4HP is a high performance driver & power supply for high output led fixtures. It offers four RJ-45 ports to connect directly to fixtures such as the Color Ray MR, as well as terminal connectors for others.
Features
• Power Input: 88-132VAC, 176-264VAC
• Control Protocol: DMX-512
• Output Modes: 16 CH (RGBW or RGBA), 12 CH (RGB), 4 CH (SC or White)
• Output PowerP: 200W, 8.3A, 24VDC - Constant Current (Terminal / RJ-45)
• Housing: Anodized Aluminum
• Rating: IP20, Dry Location
• Operation Temp.: 14º F to 122º F (-10ºC to 50ºC)
• Flicker Free Operation: For use with HD Video or Film
• Connectors: 3 Pin Terminals (Data), 6 Pin Terminals + RJ45 to fixture
• Warranty: 3 Years
• Weight: 4.2 lbs. (1.95Kg)
• Dimensions: 12" (W) x 2.9" (H) x 7.3" (D)
• Certifications: CE
