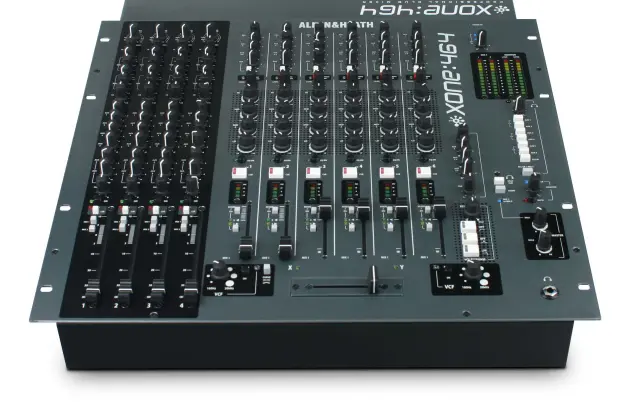

Allen and Heath Xone:464

Here’s where it all started. As the first model in the range, the Xone:464 paved the way with superior sound and build quality never seen before in a DJ mixer. A dedicated club mixer, designed to please both club technicians and the performing DJ, its combination of versatility and fine craftsmanship mean it is still the first choice for venues where DJ’s and engineers are serious about their music.

It shares the same solid construction as Allen & Heath’s pro touring desks, so venues can depend on it for outstanding audio and reliability, whilst the renowned Xone analogue filters and 4-band asymmetric EQ make it an incredibly creative tool for DJ’s to enjoy. The 4 fully-featured mic/line inputs mean live performers can join the mix, adding a new dimension to the stunning feature set.

Features:

4 fully-featured mono/mic performance channels with 100mm faders
6 dual stereo channels with RCA and TRS sources on each channel
2 independent outputs on XLR or TRS, with full metering
6 aux sends from every channel for monitors or FX sends
4 stereo, 2 mono zone outputs with rotary control
VCF system – 2 independent stereo filters with frequency and resonance control
4-band EQ with +6dB and -26dB cut
2 headphone outputs, split cue, mono sum button, booth output
P&G easy change professional VCA crossfader
Comprehensive booth monitor system
Sys-Link option to connect to other A&H mixers
Desk or 19” rack mount

Input Connections
Balanced XLR x4
Balanced TRS mono x4
RCA pair RIAA x4
RCA pair x4
Balanced TRS stereo pair x4
EXT In, Balanced TRS pair x1

Phantom Power
+48V individually switchable, channels 1-4

Input Pad Switch
-30 dB

Input Impedance
XLR: 2k ohm
XLR pad in: > 10k ohm
TRS mono: > 10k ohm
RCA pair RIAA: 47k ohm / 330 pF
RCA pair: > 10k ohm
TRS stereo pair: > 10k ohm
EXT In, Balanced TRS pair: > 10k ohm

Input Level Range
XLR: -60 to -20 dBu
XLR pad in: -30 to +10 dBu
TRS mono: -30 to +10 dBu
RCA pair RIAA: 2 to 100 mV
RCA pair: -10 to +10 dBu
TRS stereo pair: -10 to +10 dBu
EXT In, Balanced TRS pair: -10 dBV (+4 dBu option)

Inserts
Mono Channels: Unbalanced TRS
Send: < 75 ohm; Return: 3k ohm @ 0 dBu

MIX Inserts: Unbalanced TRS
Send: < 75 ohm; Return: 3k ohm @ -2 dBu

Outputs
Output Connections DIR out 1-4: Balanced TRS mono
MIX out 1,2: Balanced XLR stereo pairs
MIX out 1,2: RCA stereo pairs
MONO MIX out: Balanced XLR
MONO MIX out: Balanced TRS
AUX out 1-6: Balanced TRS
LOCAL MON out: Balanced TRS

Output Level and Impedance
DIR out TRS 1-4: < 75 ohm; 0 dBu
MIX out XLR 1,2: < 75 ohm; +4 dBu
MIX out RCA 1,2: < 75 ohm; -10 dBV
MONO MIX out XLR: < 75 ohm; +4 dBu
MONO MIX out TRS: < 75 ohm; -2 dBu
AUX out TRS 1-6: < 75 ohm; -2 dBu
LOCAL MON out TRS: < 75 ohm; -2 dBu

Headphone Connectors
1/4" Stereo Jack x2
30 to 600 ohm recommended

Performance
Maximum Output Level XLR: +26 dBu into > 2k ohm load
TRS: +21 dBu into > 2k ohm load
RCA: +15 dBu into > 10k ohm load

Headroom
Channels: +21 dB
Mix to output: +23 dB

Clip LED Threshold
9dB before clipping

Metering Type
MIX1 / MONITOR
Peak reading, 12 LED, 3 color
Frequency Response
20 Hz to 40 kHz, +0/-1 dB

THD + Noise
< 0.006%; +14 dBu @ 1 kHz

Crosstalk
< 90 dB @ 1kHz

EIN
-128 dB, referred to 150 ohm source

Residual Output Noise
XLR: -90 dBu (-94 dB S/N)
TRS: -84 dBu (-84 dB S/N)
RCA: -92 dBu (-84 dB S/N)

Mix Output Noise
XLR: -86 dBu (-90 dB S/N)
TRS: -83 dBu (-83 dB S/N)
RCA: -91 dBu (-83 dB S/N)

Power Supply
Type
Internal switch mode power unit with auto sensing mains input

AC Power Supply Input Socket
IEC 3 pin
Power lead country dependent

AC Voltage Input Range
100 to 240V AC @ 50/60 Hz

Power Consumption
30W max
Fuse Rating
100 - 240 VAC, T500 mA, 20 mm


Dimensions (WxDxH)

Desktop:
19 x 20.9 x 7.6" (483 x 530 x 192 mm)
10U Rackmounted:
19 x 17.5 x 5.3" (483 x 444 x 135 mm)

Weight 22 lbs (10 kg)

Allen & Heath Xone 464 (Allen & Heath Xone464)
