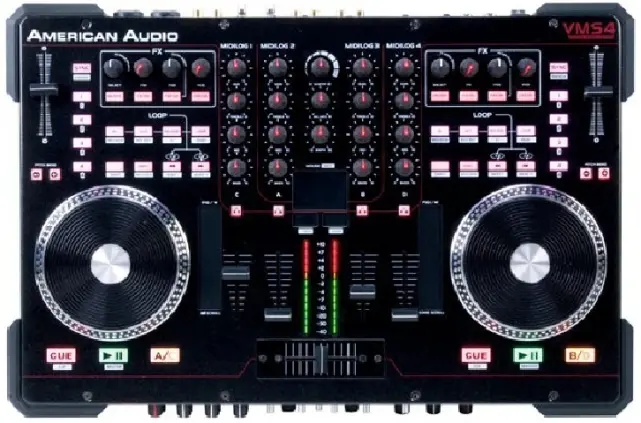

American Audio VMS4.1 Traktor

American Audio VMS 4.1 (American DJ VMS-4.1)

VMS4.1 Traktor
General Features:
• Traktor Ready - Special Edition with Buttons and Face Plate Designed for TRAKTOR Users
• Bundled with TRAKTOR American Audio VMS Edition 2 Software
• Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• All audio control faders, knobs, switches, and buttons smoothed - eliminates popping,
wiper noise, and zipper noise
• On/off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOGTM channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOGTM channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter
• Dimensions (LxWxH): 19”x12.75”x1.5” / 482x325x40mm
• Weight: 13 lbs. / 6 kg.

Midi Features:
• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers

Audio Features:
• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency

For each audio channel, both line and phono modes
Specifications subject to change without notice
