Blizzard Blockhead Big Eye

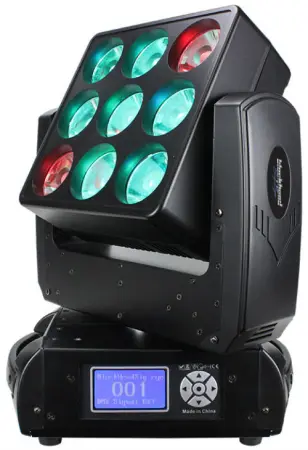

Give your light show a major boost with the Blockhead Big Eye! It is a super cool 3x3 LED moving head fixture with 9* pixel controllable OSRAM RGBW 15W multi-chip LEDs. That, along with its infinite pan and tilt movements can create some serious eye-candy, and bring a ton of excitement to any lightshow.

BlockHead Big Eye fixtures are packed with lots of other goodies like ultra-fast three-phase motors, automatic pan/tilt position correction, 16-bit movement resolution, 5-degree LED beam angle, RGBW color mixing + CTC, pixel mapping, 2 DMX modes (24/51 control channels), fast or slow auto modes, plus 2 sound active modes.

It also comes equipped with an easy-to-use LCD 5-button control panel, industry standard PowerCON compatible power In/Out connections, 3-pin DMX In/Out jacks, and dual quarter-turn "Omega" quick connect type clamp brackets, making this one highly engineered, superior moving head wash fixture.

Features:

3x3 pixel matrix moving head w/9x CREE multi-chip 15W RGBW LEDs
Built-in automated programs via master/slave
Built-in sound activated programs via master/slave
15/51-channel DMX modes
Optional reverse Pan/Tilt
Defeatable pan/tilt correction with trim adjustment
Internal fan cooling system
3-pin male input and 3-pin female output
Dual quarter-turn "Omega" quick connect type clamp brackets
PowerCon compatible AC power In/Out connectors
Specifications:
Operating voltage: 90-250V, 50/60Hz
Power Consumption: 150W
Light Source: 9x CREE multi-chip 15W RGBW LEDs, 100,000 hours
Optical: 5 degrees beam angle
Dimmer: Smooth dimmer from 0-100%
RGBW color mixing + CTC
Individual color control of each LED
Motors: Infinate Pan and Tilt
16-bit movement resolution
Pan movement: 0 degrees-450 degrees at max speed: 2.2 sec.
Tilt movement: 0 degrees-300 degrees at max speed: 1.2 sec.
Thermal:104 degrees F (40 degrees C) ambient
Control Protocol: USITT DMX-512
DMX Channels: 15/51
Input: 3-pin XLR Male
Output: 3-pin XLR Female
5-button LCD control panel
Operating Modes: Standalone, Master/Slave, Auto, Sound Active
Weight: 21 lbs (9.5kg)
