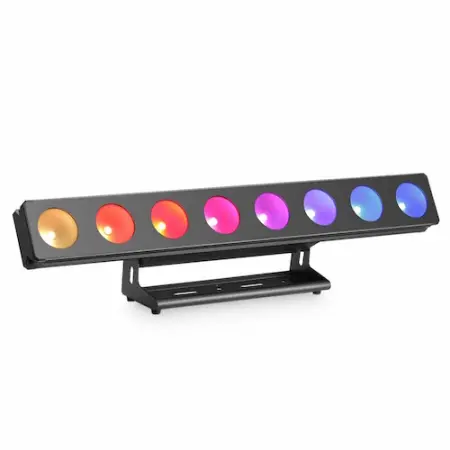

Cameo Lighting Pixbar 650 CPro
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Professional 8 x 30 W COB LED bar
The Cameo PixBar 650C PRO is a 53° beam width professional LED bar with 8 ultra bright 30 watt COB-LEDs for solid colour mixing with seamless transition. Highly efficient convection cooling and a 3,000 Hz refresh rate ensure absolutely noiseless operation and flicker free performance.
The PixBar 650C PRO is fully RDM compatible for bi-directional communication with a dedicated controller providing addressing, configuration and status reporting of the fixture. It is capable of standard DMX control in 5 modes and standalone, master or slave operation. The PixBar 450C PRO also features autorun software, a built-in microphone for sound control and a backlit display with Mode, Enter, Up and Down keys for manual control.
In addition to rich RGB colours and macros calibrated to the LEE filters standard the PixBar 650C PRO provides colour temperature correction, 4 selectable dimming curves and single pixel control for impressive chase effects.
The fixture's rugged aluminium enclosure features 3 and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and an adjustable stand that doubles as mounting bracket.
Features:
8 ultra bright 30W COB LEDs
LED single pixel control for stunning chase and pixel mapping effects
Absolutely silent operation due to efficient convection cooling
Flicker free
Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O
RDM enabled
5-mode DMX control plus standalone operation with master and slave modes
4 selectable dimming curves
Colour temperature correction
3 temperatures of white: warm white, white, cool white
Rugged die-cast aluminium housing
Specifications:
Product number: CLPIXBAR650CPRO
Product type: LED Bars
Type: Indoor
Colour spectrum: RGB
Number of LEDs: 8
LED type: 30 W COB
Dispersion: 53°
Refresh rate: 3000Hz
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 5-pin female, XLR 3-pin female
DMX mode: 2-channel, 30-channel, 3-channel 2, 3-channel 1, 26-channel, 9-channel
DMX Functions: Colour temperature correction, auto programs, Dimmer, colour macro, strobe, sound programs, Single Pixel Control
Standalone modes: auto programs, Auto run, strobe, static colour, sound programs
Controls: mode, Value Down, Value Up, Enter
Indicators: LC display
Operating voltage: 110 V AC - 240 V AC / 50 – 60 Hz
Power consumption: 250W
Power connector: Neutrik PowerCon
Housing material: die-cast aluminium
Cooling: Convection
Cabinet colour: Black
Illuminance: 5200lx @ 1m, 700lx @ 1m
Dimensions without mounting bracket
Width: 880mm
Height: 110mm
Depth: 130mm
Dimensions of the mounting bracket (incl. rubber feet): 495 x 140 x 100mm
Weight: 7.6kg
