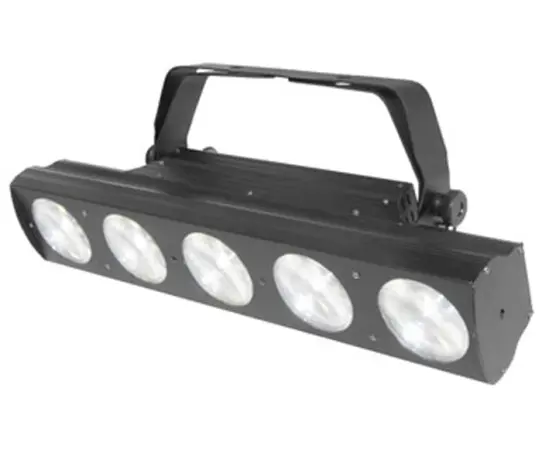

Chauvet DJ Beam Bar

Chauvet BEAMbar (Chauvet Lighting Beam Bar)

The Chauvet BEAMbar projects razor-sharp beams of white light for stunning visual effects. Easily program the fixture to emit intense runway effects, or build a massive matrix by combining several units using the CBB-6 mounting bracket. Take command with full pixel control using ShowXpress Pixels and create eye-catching sweeps and animations in DMX mode; or for complete ease, activate exciting built-in, automated programs.

• Linear aerial effect light with full pixel control
• Produce banks of light with narrow, razor-sharp beams
• Enhance any gig with built-in, eye-catching effects
• Create light shows using built in, sound-active auto programs
• Build impressive matrixes or runway effects with multiple fixtures
• Easily generate complex looks using ShowXpress™ Pixels
• Simulate halogen lighting and achieve smooth LED fading with built-in dimming curves
• Combat harsh, on-the-road conditions with a robust casing
• Save time running cables and extension cords by power linking multiple units
• Trigger built-in automated programs using master/slave or DMX mode
• Sound-activated programs move to the beat of the music
• Easily transport up to two units in the CHS-60 VIP Gear Bag
• Works with the CBB-6 to attach multiple units together

• DMX Channels: 4 or 5
• DMX Connectors: 3-pin
• Light Source: 5 (white) 6W (1.9A) LEDs 50,000hrs
• Strobe Rate: 0 - 24Hz
• Beam Angle: 4°
• Illuminance: 17,300 lux @ 2m (per pod)
• Power Linking: 21 units @ 120V; 39 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 44W, 0.6A @ 120V 60Hz
• Power and Current: 43W, 0.3A @ 230V 50Hz
• Weight: 6.6lbs (3.1kg)
• Size: 19.7 x 3.9 x 8.5in (500 x 98 x 217mm)
• Approvals: CE
