Chauvet Pro Nexus 2x2
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

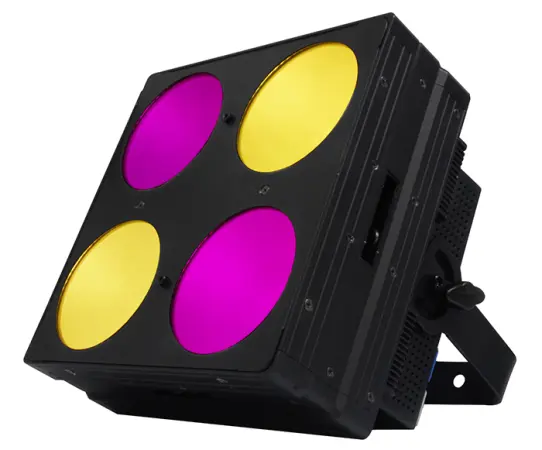

Chauvet Nexus 2x2 (Chauvet Nexus-2x2)
Nexusâ„¢ 2x2 is a 4-cell COB RGB LED fixture designed for building scalable pixel mapping displays. Combine with Nexusâ„¢ 4x4 and Nexusâ„¢ 4x1 for larger geometric displays that aptly demonstrate its pixel-mapping capability and diffused yet richly saturated colored light.
Features:
• Achieve vibrant colors with bright COB LEDs
• Increase pixel mapping options by controlling pixels individually
• Build large arrays by linking multiple panels together with integrated locks
• Works seamlessly with Nexus™ 4x4 and Nexus™ 4x1
• Design with flexible control options: Kling-Net, Art-Net, or DMX
• Use universal power connectors: Neutrik powerCON®, Neutrik etherCON®, 3- and 5-pin DMX
Specifications:
• DMX Channels: 3, 5, 9, 12 or 17
• DMX Connectors: 3- and 5-pin
• Light Source: 4 (Tri-color RGB) 25W (700mA) LEDs 50,000hrs
• Strobe Rate: 0 - 20Hz
• Beam Angle: 45°
• Field Angle: 75°
• Illuminance: 135 lux @ 5m
• Color Temperature Range: 2,800~ 10,000K
• IP Rating: IP20
• Cable Length: 5ft (1.5m)
• Power Input: powerCON®
• Power Linking: 15 units @ 120V; 25 units @ 208V; 28 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 108W, 0.90A @ 120V 60Hz
• Power and Current: 112W, 0.53A @ 208V 60Hz
• Power and Current: 111W, 0.48A @ 230V 50Hz
• Weight: 10lbs (4.6kg)
• Size: 9 x 9 x 6in (228 x 228 x 152.4mm)
• Approvals: CE, MET
