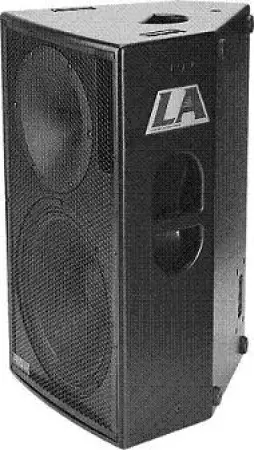

The EAW LA215 is a 2-way full range system (passive LF/HF crossover) in a vented dual purpose (main/stage monitor) enclosure. Includes a 15" woofer and a 2" exit/3" voice coil compression driver on a Wave Guide Plate. It functions either as main or monitor and can be mounted on pole stand. Handles and 3-position fly track with integrated mounting points are also included.
EAW LA215 Main/Monitor Speaker Specifications:
- Physical:
- Sysem Configuration: 2-way, full range
- Product Group: G
- LF Subsystem & Loading: One 15 in woofer, vented
- HF Subsystem & Loading: One 2 in exit/3 in voice coil compression driver on WGP
- Operating Mode: Passive only
- Enclosure Material: Exterior grade Baltic birch plywood
- Finish: Wear resistant textured black paint
- Connector: Two Neutrik NL4 Speakon
- Suspension Hardware: Three 3-position fly track with integral 3/8-16 mounting/suspension points, Five 3/8-16 mounting/suspension points
- Grille: Powder coated perforated steel
- Companion Subbass: LA118z, LA128z, or LA400
Dimensions (+/-0.13 in / 3 mm): - Height: 29.75 / 756
- Width: 18.50 / 470
- Depth: 19.50 / 495
- Minimum Stage Height: 18.42 / 468
- Floor Angle: 45 degrees
Weights (pounds / kilograms): - Net Weight: 80.0 / 36.4
- Shipping Weight: 87.0 / 39.5
Frequency Response - ±3 db: 69 Hz to 18 kHz
- -10 dB: 44 Hz
- Recommended High-Pass Frequency: 40 Hz, 24 dB / octave
Axial Sensitivity (dB SPL, 1 watt @ 1 m) - Full Range Passive: 97
- Nominal Input Impedance (ohms)
- Full Range Passive: 8
- Power Handling (watts, continuous)
- Full Range Passive: 600
- Calculated SPL Limit (referenced to 1 m)
- Full Range Passive Peak: 130.8
- Full Range Long Term: 124.8
- Nominal Dispersion (degrees @ - 6 dB)
- Conical: 90 degrees
EAW LA215 Main/Monitor Speaker Features:
- Dual use main/monitor 2-way system
- 15" LFwoofer and HF compression driver on 90 degrees conical Wave Guide Plate
- Internal passive crossover/filter network
- For portable use or permanent installation
- Integrated flytrack, suspension points and pole mount cup
