EAW MW12

- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

VIP Image

Get $239 back. Or Join VIP for up-front discounts.

*Discontinued

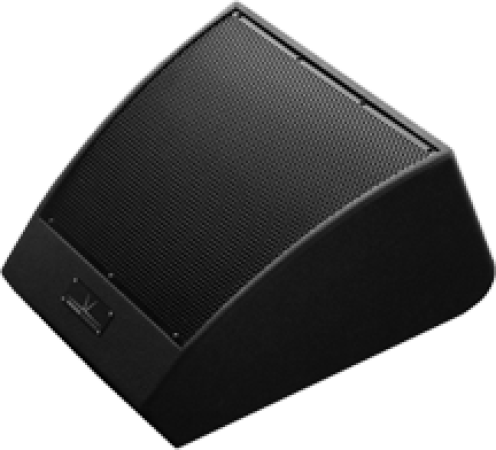

EAW MW 12 (EAW MW-12)

A switchable (biamplified or full range) two-way system in a stage monitor enclosure. 12-in LF cone, vented, coaxial with HF; 1.4-in exit HF compression driver, horn-loaded. 90 degree (conical) coverage pattern.

Operating Range (-10 dB, Hz)

64 - 20k
Axial Sensitivity (1W @ 1m, dB SPL)

LF: 95
HF: 106
Full Range: 94
Power Handling / Impedance (Watts @ Ohms)

LF: 600 @ 8
HF: 150 @ 8
Full Range: 600 @ 8
Calculated Maximum Output Peak (dB SPL)

LF: 129
HF: 134
Full Range: 128
Calculated Maximum Output Long Term (dB SPL)

LF: 123
HF: 128
Full Range: 122
Nominal Coverage (degrees)

Horizontal: 90
Vertical: 90
Subsystems

LF: 12-in cone, vented, coaxial with HF
HF: 1.4-in exit compression driver, horn-loaded
Powering

Switchable: full range or biamplified
Versions

MW 12 Black 0011736-90
Accessories

Part Number
Microleg 4in, ACC-ML4
0031453
Pole adapter MW [ACC-PAMW]
2034971
Dimensions (inches/millimeters)

Height (min. stage): 13.14/334
Width (front): 12.0/305
Width (rear): 17.27/439
Depth: 22.80/579
Trap. Angle (degrees per side): 6.5
Floor (degrees up): 27
Weights (pounds/kilograms)

Net: 47/21.3
Shipping: 60/27.4
