Elation DiGidot C4 Live 4 Universe (DDL001)
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

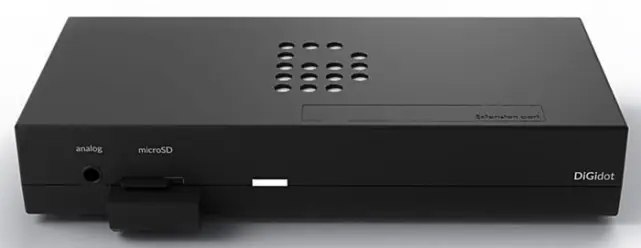

DiGidot C4 Live
SKU# DDL001
The DiGidot C4 is a small powerful LED controller, that suits all kinds of situations. One DiGidot C4 drives more than 6000 single LEDs. Furthermore, it supports 40+ IC types and various industry standards. This is all you need in LED and show control!
Features
Amazing Output Volume
The DiGidot C4 Live can output to a maximum of 6000 individual LEDs and 2,000 RGB LEDs. The LEDs are spread over 4 Outputs, where each can have 3 Universes. Lights can be directly connected to the LED driver. The digital Ouputs of the DiGidot C4 Live can all have various settings. You can output both the SPi and DMX signal. Being able to directly connect to LED lights allows the creation of more cost efficient lighting installations. Ethernet nodes and switches are no longer a neccessity, since the DiGidot C4 combines those features. Several DiGidot C4s can be connected together and run the lighting installation as one.
12 Universes 2,000 RGB Pixels 6,000 Channels
Compatibility
The DiGidot C4 is compatible with more than 40 ICs. DiGidot has been active in professional lighting for more 10 years and assures compatibility with 80% of LED lights used in professional lighting. Even if the IC is not yet in the list below, we can always make it available.
40+ Supported IC's
APA102 MY9221 TM1814 WS2801
APA104 MY9231 TM1914A WS2803
APA106 PC5XS301V0500 UCS1903 WS2811
BS0901 SK6812 UCS1904 WS2812
DM412 SK6822 UCS2903 WS2812B
DMX SM16703 UCS2904 WS2812S
DMX TTL SM16716 UCS2912 WS2813
GW6205 SM16726 UCS512B3 WS2818
INK1003 TM1803 UCS8904
LD1510 TM1804 UCS9812
LPD6803 TM1809 WES9412
MBI6024 TM1812 WES943
Can’t find your IC type? Please send an e-mail to info@digidot.eu. We will do our best to add it to the next firmware release.
User Interface
Full device control from its web-based interface.
Whether you use Mac or Windows, the responsive HTML5 interface works on all well known platforms, such as Chrome and Safari. With its clean look and clear explanations at every button it has a minimal learning curve. By typing the standard IP address 10.254.254.254 in your web browser the built-in user interface will help you setup the DiGidot C4 according to your project requirements. You can adjust the number of universes, the type of LED (the LED light IC chip) and route them to a preferred output. Are you using multiple DiGidot C4’s daisy-chained or in a network? Name them the way you want and give them a unique IP address to easily recognize them in your project!
Software
Works well with all professional lighting control systems.
The DiGidot C4 Controller works well with most common LED software used in professional event lighting. The device was thoroughly tested with MADRIX, but we can assure it works well with other software, such as: ArKaos, Chromateq, Pharos and Resolume. Nonetheless, the DiGidot C4 was used numerous times with grandMA consoles.
Specifications
SIZE / WEIGHT:
Length: 6.02" (153MM)
Width: 2.91" (74MM)
Height: 1.10" (28MM)
ELECTRICAL SPECIFICATIONS
Working Voltage: 5 – 24V
Maximum Power Consumption: 5W
CAPACITY
6000 Individual pixels (at 30 fps)
2000 RGB pixels
CONNECTORS
2 x RJ45 Connectors
3.5 mm TRRS Analog Jack
6-pin Input/Output Connector
40-pin Extension Port
SIGNAL INPUTS
Articstic License Art-Net 3
DMX 512
1-10V Analog Input (can be used for switches/triggers)
DiGidot C4 IOS/Google Play App
SIGNAL OUTPUTS
Artistic License Art-Net 3
DMX 512 (2 Outputs)
DMX TTL (4 Outputs)
Various LED IC Types: WS2812, WS2812B, TM1803, UCS8904, WS2811, APA102, WS2801, TM1809 (see the digidot.eu site for a complete list of IC types. A new IC type can be added on request)
LIGHT OUTPUTS
LED Strips
LED Wall Washers
LED Downlights
LED Video Screens
Any type of Dynamic LED light
PROGRAMMING & CONTROL
User Interface (accessible through Google Chrome Internet browser)
Any type of Art-Net Software/Device (contact us for a complete list of supported software)
MOUNTING OPTIONS: din-rail (clip not included), tie-strap, screws.
