Electro-Voice P3000
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

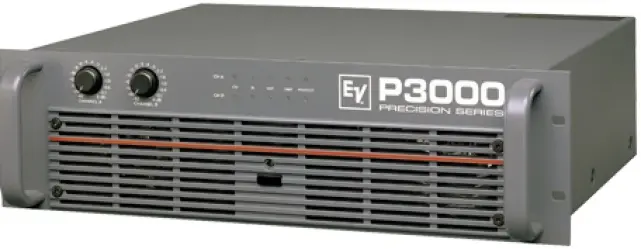

EV P3000 (Electro-Voice P-3000)
Precision Series Power Amplifiers
The P3000 delivers 1,800 watts per channel at two ohms. Neutrik Speakon output connectors allow use of heavy-gauge speaker wire for low-loss connections. Extremely low dynamic distortion ensures excellent sound quality. Three-rack spaces.
Designed for Cinema, Club Sound, Concert Sound, House of Worship, Performance
& Sports Venues, Stadium Systems, and other applications.
Classic EV flagship performance amplifier
Up to 2 x 1800 W into 2 ohms
Extremely high sonic performance and quality
Class-AB design
Dual power supply
Three-stage front-to-rear fans
Complete protection package
Classic EV amplifier dynamic headroom for real-world music and applications
Built-in dynamic limiters
|
Continuous Rated Power (1 kHz,&n THD 1%) 2Ω |
1800 Watts |
|
Continuous Rated Power (1 kHz, THD 1%) 4Ω |
1300 Watts |
|
Continuous Rated Power (1 kHz, THD 1%) 8Ω |
850 Watts |
|
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω |
1200 Watts |
|
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω |
750 Watts |
| DIM 30 | 0.01 % |
| Electronics Type | Amplifier |
| Input Impedance (Balanced) | 20 kΩ |
| Input Sensitivity | 0 dBu / +6 dBu / +26 dB |
| Intermodulation Distortion (SMPTE) | 0.01 %td> |
| Maximum Bridged Output 4Ω | 3600 Watts |
| Maximum Bridged Output 8Ω | 2600 Watts |
| Network Control (IRIS-Net) | No |
| Signal-to-Noise Ratio (A-weighted) | 105 dB |
| Slew Rate | 40 V/µs |
| Total Harmonic Distortion | 0.05 % |
| Height | 3RU 133 mm (5.24") |
| Width | 483 mm (19.02") |
| Depth | 390 mm (15.35") |
| Weight Net | 29 kg (63.93 lbs) |
