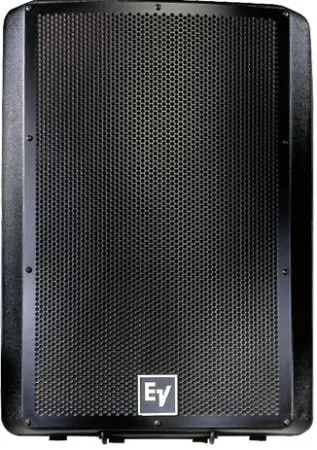

Electro-Voice SX300PI
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
EV SX300 PI (Electro-Voice SX-300PI)
Weatherized permanent installation version of the SX300E, a 12“ composite two-way considered to be the world‘s best lightweight, high power speaker system.
Designed for House of Worship, Performance & Sports Venues, Stadium Systems,
and other applications.
2-Way Full-range
High Sensitivity
Ultra-linear frequency response
Vented LF enclosure
1.25” voice coil (titanium diaphragm)
PRO™ Driver protection circuit
HF-horn features Varipath
Trapezoidal (25° per side)
4 x M8x1.25 attachment inserts
Overview of variants see right spread sheet
Sx300 PI outdoor version
Sx300 PIX for 70V/100V
Chassis Size 304.8 mm (12")
Color Black
Color White
Directivity Index 11.1 dB
Input Connections Four-pin Speakon (2)
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Frequency Response (-10 dB) 50 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc) 131 dB
Coverage
(Nominal -6 dB) H° 65 °
Coverage
(Nominal -6 dB) V° 65 °
System Power Handling (Continuous/Program/Peak) 300 Watts
LF Transducer DL12BFH
HF Transducer DH2010
Crossover Frequency 1500 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 6 Ω
Flying Yes
Outdoor Yes
Height 586 mm (23.07")
Width 429 mm (16.89")
Depth 312 mm (12.28")
Weight Net 14.5 kg (31.97 lbs)
