Galaxy Audio ECDR/HH38L
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

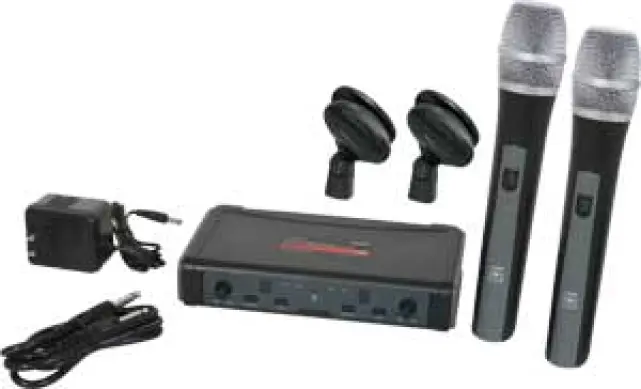

Galaxy ECDR-HH38 (Galaxy Audio ECDR HH38)
DESCRIPTION
The ECD Series is a dual channel wireless system. The ECD features 2 internal
antennas (1 for each receiver), 16 selectable channels on each receiver, and IR
Sync from receiver to transmitter. The ECD has one ¼" output on the back of the
unit. The output is controlled by a volume control for each receiver, located on
the front of the unit.
Receiver (ECMR)
16 Selectable Channels
Output Volume Control
AF Level Indicator
IR Sync
Squelch Adjustment
XLR / ¼" Outputs
Rugged Plastic Casing
2 x Hand Helds (HH38)
Dynamic Cardioid
On/Off Switch
Plastic Casing
IR Sync w/ receiver
Runs on 2 AA Batteries (8 hours)
10.9" x 1.85" (277mm x 47mm)
System
Available Channels: 16
Frequency Range: CODE D 584-607 MHz
CODE L 655-679 MHz
Transmitter Output Level: 10dBm
Band: UHF
Operating Range: Under Typical Conditions 150' (50m)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response: (+/-3dB) 60Hz~16KHz
Total Harmonic Distortion: (+/-30KHz deviation 1KHz tone): <1%
Dynamic Range: >90dB A-weighted
Operating Temperature Range: 14ºF to 122ºF (-10 Cº to +50 Cº)
Note: battery characteristics may limit this range
FREQUENCY CODES:
CODE D 584~607MHz
CODE L 655~679MHz
