Galaxy Audio VSCR/318
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Galaxy VSCR-318 (Galaxy Audio VSCR318)
Available in v54, v59, v60 and v61.

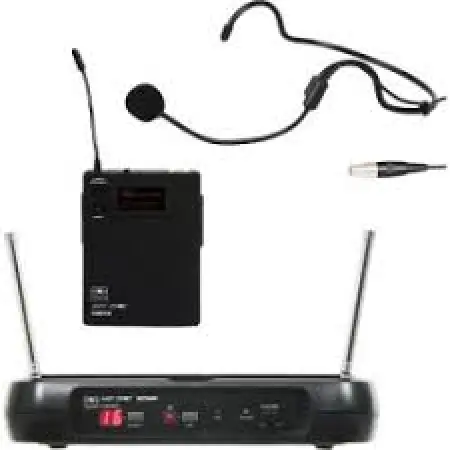

The VSC Triple Play system includes the VSCR receiver, the MBP18 body pack, a headset, lavaliere, and a guitar cable. The VSC handheld system includes the VSCR receiver and the HH18 handheld.
Receiver (VSCR)
RF & Audio Indicators
Unbalanced ¼" Output
Diversity Telescopic Antennas
Durable Plastic Housing
Body Pack (MBP18)
VHF
Mic/Line Switch
On/Off/Standby Switch
Runs on 2-AA Batteries (about 8 hours)
Dimensions: 4.14" x 2.6" x 0.91"
(105mm H x 65mm W x 23mm D)
Weight: 2.7oz (77grams)
Headset Mic (HS13-UBK)
Cardioid Polar Pattern
9.68mm Condenser Element
37" (94cm) Cable with 3.5mm threaded cable
Windscreen
Lavalier Mic (LV13-UBK)
Cardioid Polar Pattern
9.68mm Condenser Element
37" (99cm) Cable with 3.5mm threaded cable
Tie Clip
Windscreen
Guitar Cable (GTR13)
39" (1m) Cable with 3.5mm threaded and 1/4"
System
Band: VHF
Antennas: Diversity Telescopic
Indicators: Low battery
Frequency Responce: 60Hz - 16kHz
Frequency Range: CODE V54 173.8 MHz, CODE V59 174.1MHz, CODE V60 174.5MHz, CODE
V61 174.8MHz
Output: Unbalanced ¼"
Operating Range: 100' (30.48m)
Note: actual range depends on RF signal absorption, reflection, and interference
Dimensions: 1.73" x 9.25" x 4.6"
(44mm H x 235mm W x 118mm D)
Weight:11.2oz (318grams)
Power Requirements: 12-18 V dc at 300mA, supplied by external power supply.
FREQUENCY CODES:
CODE V54 173.8 MHz
CODE V59 174.1MHz
CODE V60 174.5MHz
CODE V61 174.8MHz
