Allen and Heath IP-1B

Programmable Remote Controller with LCD for Non-Technical Users

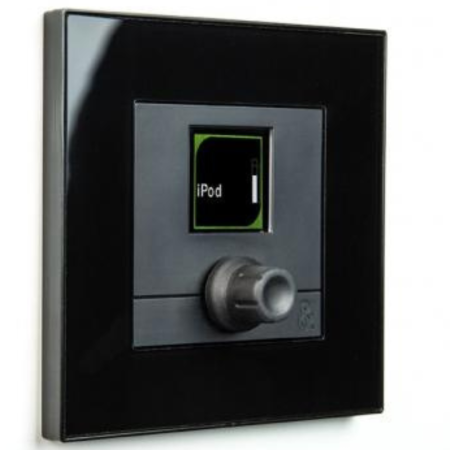

The Allen & Heath IP1 Wallplate Programmable Remote Controller is designed with simplicity and ease of use in mind, making it ideal for non-technical users who need to control music source selection, zone level, and scene/preset recall. The IP1 features a single rotary control with a push-and-turn function, complemented by a color LCD screen that provides clear feedback on the parameters being adjusted.

Compatible with AHM processors, Avantis mixers, and dLive S Class and C Class surfaces, as well as MixRacks, the IP1 integrates seamlessly into any installation. The controller is designed to fit standard Decora faceplates, offering a sleek and professional appearance in any setting. With the ability to connect multiple IP controllers (up to 32) to a single system, the IP1 ensures control is available exactly where it’s needed, providing a flexible and scalable solution for audio management.

Allen & Heath IP1 Competitive Differences

• Simple push-and-turn rotary encoder for intuitive control of music source selection, zone level, and scene/preset recall.
• Color LCD screen for clear indication of control parameters.
• Compatible with AHM processors, Avantis mixers, and dLive S/C Class surfaces and MixRacks.
• Fits standard Decora faceplates, ensuring a clean and professional installation.
• Supports up to 32 IP controllers in a single network, offering extensive control options.
• Automatic firmware matching with connected devices for low maintenance and easy system updates.

Allen & Heath IP1 Features

• Designed for use with AHM processors, Avantis mixers, and dLive S/C Class surfaces and MixRacks
• Compatible with Decora faceplates for a sleek installation
• Push-and-turn rotary encoder for music source selection, level control, and preset recall
• Color LCD screen for clear visual feedback
• Ethernet L3-based remote controller, allowing for networking with other controllers and devices
• Supports up to 32 IP controllers per system
• Power over Ethernet (PoE) for simple power and data connection

Allen & Heath IP1 Specifications

• Compatibility: AHM Processors, Avantis Mixers, dLive S Class and C Class Surfaces, dLive MixRacks
• Style: Decora Faceplates
• Control: Dual-function rotary encoder (push-and-turn)
• Display: Color LCD
• Color: Black
• Power: PoE

Packaging Information

• Package Weight: 0.615 lb
• Box Dimensions (LxWxH): 7.8 x 5 x 4.8"

Allen & Heath IP-1 Black (Allen & Heath IP1B)
