High-Powered Outdoor LED Wash and Strobe Light
The

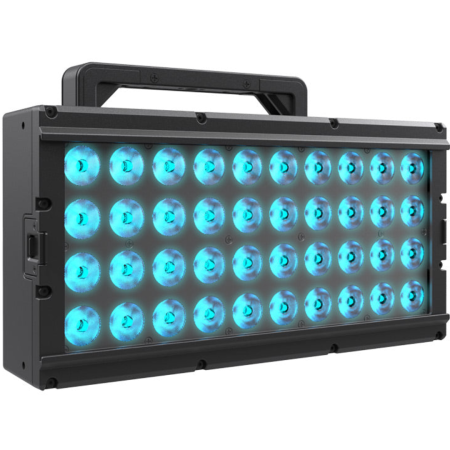

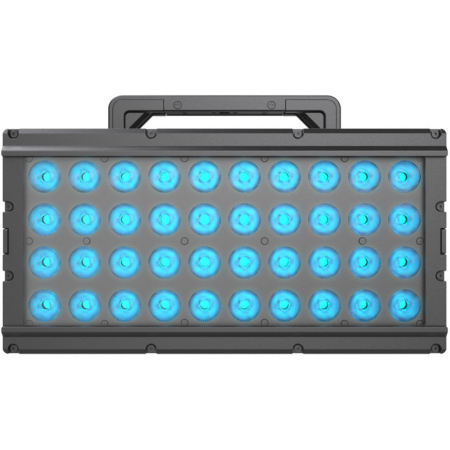

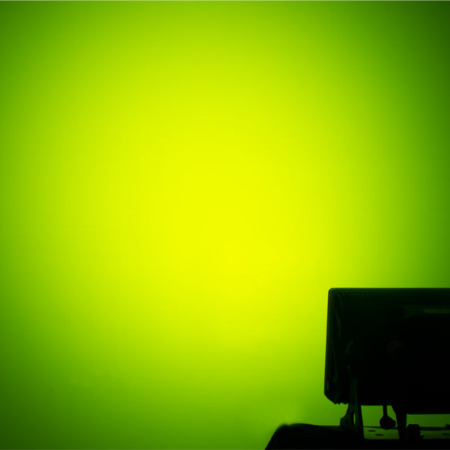

American DJ 40 HEX Panel IP is a professional-grade, IP65-rated fixture engineered for demanding outdoor and indoor environments. Ideal as a color wash, audience blinder, or strobe effect light, this unit features 40x 20W HEX LEDs (RGBAL+UV) with pixel zone control and an output of 19,590 lumens. Its rugged, all-metal enclosure ensures maximum durability in challenging weather conditions.
American DJ 40 HEX Panel IP Competitive Differences
- IP65-rated construction protects against dust, sand, moisture, and water
- Equipped with 40x 20W HEX RGBAL+UV LEDs for full-spectrum color mixing
- 10-zone pixel control with 24 DMX channel modes up to 132 channels
- OLED display with touch-sensitive controls for easy configuration
- Aria X2 wireless system for OTA firmware/software updates
- Flicker-free output for film and broadcast applications

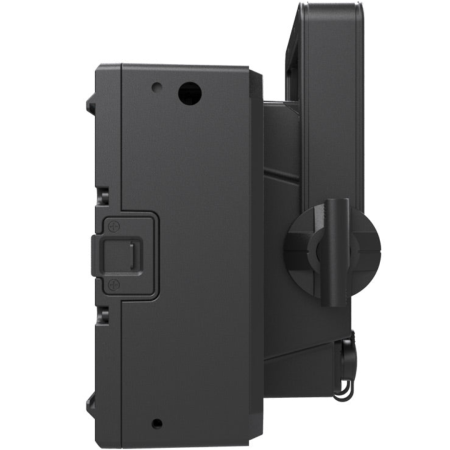

- Heavy-duty bracket included for secure installation
American DJ 40 HEX Panel IP Description
Built for versatility and performance, the

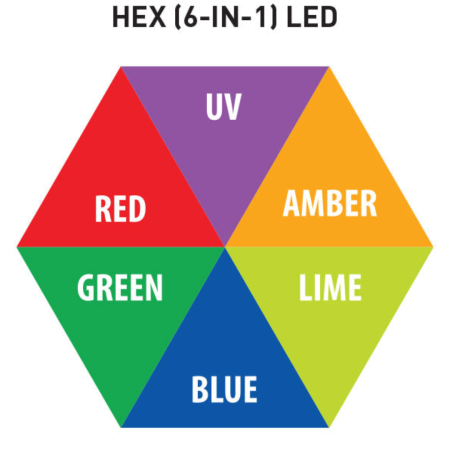

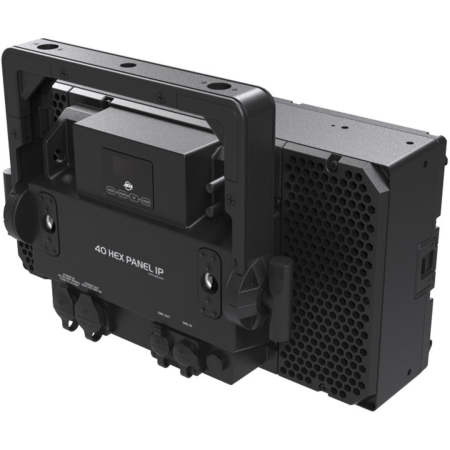

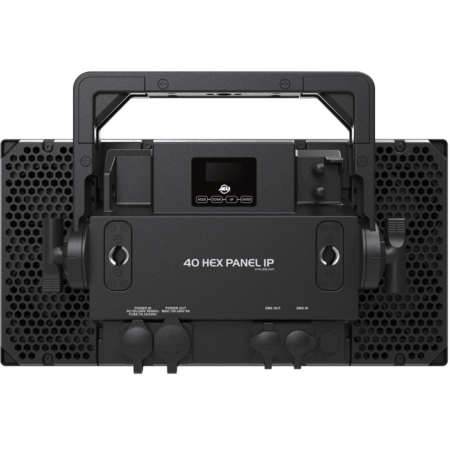

American DJ 40 HEX Panel IP delivers high-output color mixing with 6-in-1 HEX LED technology (Red, Green, Blue, Amber, Lime, UV). Designed for professionals needing robust performance indoors and out, it offers flicker-free dimming, advanced zone control, and smooth 16-bit dimming. Its rear panel includes IP65-rated 5-pin DMX and powerCON locking connections, all covered with rubber caps for added protection.

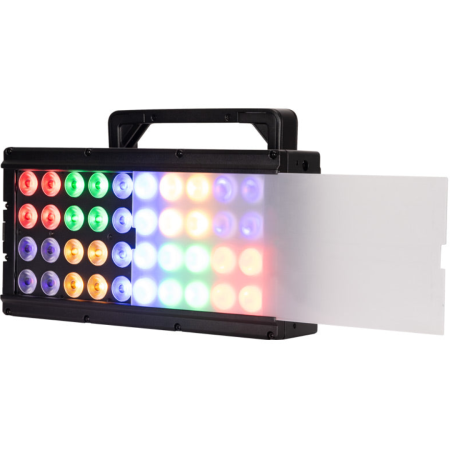

A user-friendly OLED display allows easy configuration, while the internal Aria X2 system enables wireless firmware updates, making maintenance seamless. Light shaping filters are easily attached via the front-mounted channel system, enhancing its flexibility for both live production and film sets.
40 HEX Panel IP Features
- 40x 20W HEX (RGBAL+UV) LEDs rated at 50,000 hours
- 10-zone pixel control
- Flicker-free operation
- IP65-rated for outdoor use
- All-metal black housing
- OLED display with function buttons
- Linear variable white temperature control
- Aria X2 wireless firmware management
- Includes heavy-duty mounting bracket
40 HEX Panel IP Specifications
- Beam Angle: 28.61° (X), 23.72° (Y)
- Field Angle: 50.82° (X), 44.95° (Y)
- Lumens: 19,590
- DMX Modes: 24 total (up to 132 channels)
- Dimming: 0–100% with 16-bit resolution
- Dimming Curves: 5 selectable options
- Power: 513W @ 120V / 492W @ 220V
- Power Linking: 1 fixture @ 120V / 4 fixtures @ 230V
- Voltage: Auto sensing 100–240V, 50/60Hz
- Fuse: T4A/250V
- Data Connections: IP65-rated 5-pin DMX In/Out
- Power Connections: IP65 locking power In/Out
- Dimensions: 16.42" x 11.7" x 8.35" (417 x 296.8 x 212mm)
- Weight: 24.58 lbs (11.15 kg)
What's In The Box
- 1 x IP65 Locking Power Cable
- 1 x Frost Filter
- 1 x Safety Cable
American DJ 40 HEX Panel IP Manual
View Product Page & Documentation
ADJ 40 HEX Panel IP
(American DJ HEX444)
