High-Resolution Indoor LED Video Panel for Live Events and Temporary Installations
The

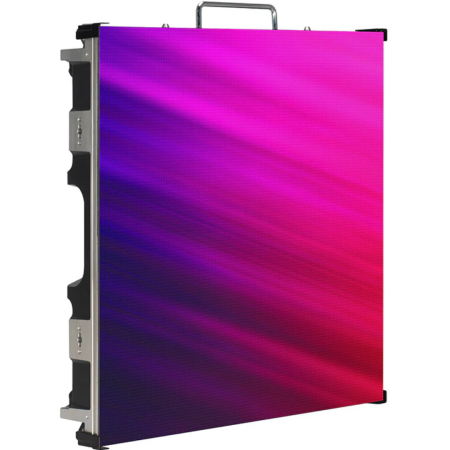

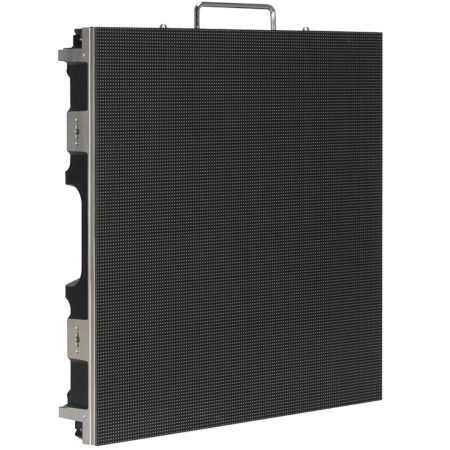

American DJ EVS3 is a 500mm x 500mm modular LED video panel engineered for temporary indoor installations that demand vibrant visuals and flexibility. With a 3.91mm pixel pitch and a high-density 3-in-1 SMD2121 LED configuration, it delivers crisp, high-contrast images ideal for stage backdrops, concert visuals, and corporate AV production.
American DJ EVS3 Competitive Differences
- High pixel density of 128x128 per panel (65,536 pixels per square meter)

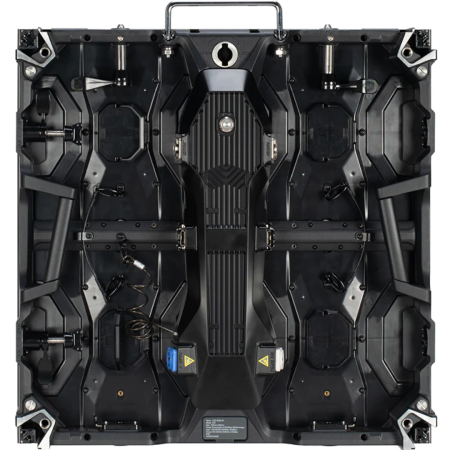

- Front and rear serviceable design for easy maintenance
- Memory on Module (MOM) technology for fast, consistent reassembly
- Ultra-lightweight at just 16.5 lbs for rapid setup and teardown
- Corner protectors for added durability during transport
- Compatible with NovaStar processors and multiple video input types
- High refresh rate of 3840Hz for flicker-free performance
American DJ EVS3 Description
Designed for touring professionals, rental companies, and production houses, the ADJ EVS3 offers a professional-grade LED video solution with advanced visual performance and easy serviceability. Each panel includes four front/rear swappable modules and supports multiple rigging configurations using accessories like the VSRB1 rigging bar and VSFC8 flight case.
Thanks to
Memory on Module (MOM) technology, each module retains brightness and color calibration even after servicing, making setup faster and more consistent. With a brightness rating of 800 NITS and a wide viewing angle of 160° horizontal / 140° vertical, the EVS3 provides a visually impactful display in a variety of lighting conditions. A full suite of input options—from VGA and HDMI to HD-SDI—makes integration with existing AV systems simple and flexible.
EVS3 Features
- 3.91mm pixel pitch with 3-in-1 SMD2121 RGB LEDs
- Memory on Module (MOM) calibration storage

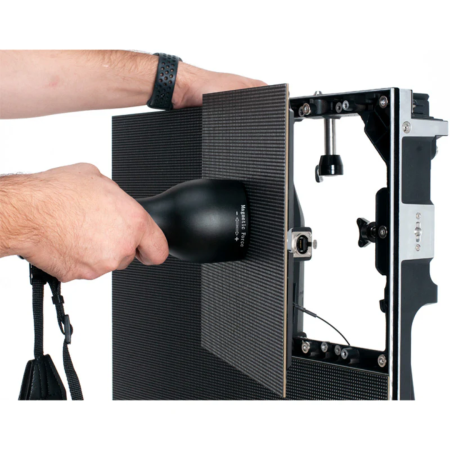

- Front and rear serviceable with 4 replaceable modules per panel

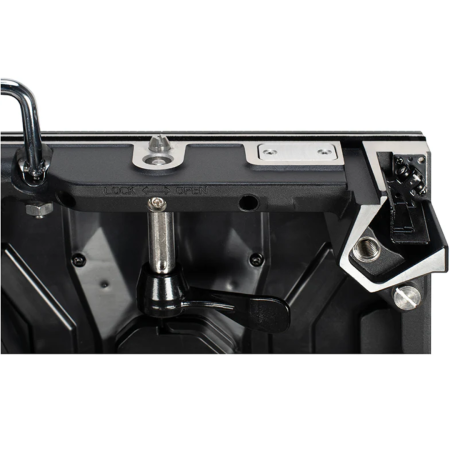

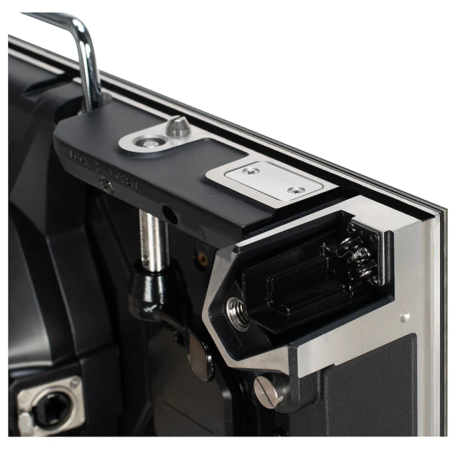

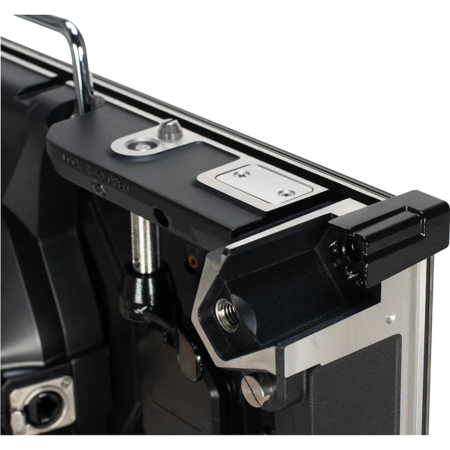

- Corner protectors to safeguard edges during transport/setup
- 800 NITS brightness and 5000:1 contrast ratio
- Wide 160° (H) / 140° (V) viewing angle
- 14-bit grayscale processing and brightness adjustment
- NovaStar control system compatible
- Supports video inputs: Composite, S-Video, VGA, DVI, HDMI, HD-SDI
EVS3 Specifications
- Pixel Pitch: 3.91mm (0.15")
- Panel Resolution: 128x128 pixels
- Pixel Density: 65,536 per square meter
- LED Type: SMD2121 (3-in-1 RGB)
- Panel Size: 19.68" x 19.68" x 2.96" (500 x 500 x 75 mm)
- Panel Weight: 16.5 lbs (7.5 kg)
- Max Power Consumption: 120W per panel
- Avg Power Consumption: 48W per panel
- Control System: Nova Star Synchronous with DVI
- Refresh Rate: 3840Hz
- Scan Mode: 1/16
- Brightness: 800 NITS
- Contrast Ratio: 5000:1
- Frame Frequency: 50–75Hz
- Operating Temperature: -4°F to +104°F (-20°C to +40°C)
- Humidity Range: 10–90% (non-condensing)
- Protection Rating: IP20 (front and rear)
- Power/Data: PowerLock In/Out, DataLock In/Out
- UPC: 810087371692
What’s In the Box
- (1) EVS3 LED video panel
- Data and power connectors (as applicable)
- Integrated corner protectors
Optional Accessories
- VSFC8: Flight Case (fits 8 panels)
- VSRB1: Rigging Bar (hang up to 20 panels)
- VSMRT: Front Module Removal Tool
- VSRQR: Quick Rig Clamp for 2" truss
- Video Processors: NovaStar VX4S, MCTRL-300, Nova Pro HD
- Software: Arkaos MediaMaster, GrandVJ 2.0
ADJ EVS3
(American DJ EVS300)
