High-Impact LED Video Wall System for Events, Installations & Production
The
American DJ EVS3-5X3 is a complete turnkey LED video wall system with everything needed to build a 5-panel wide by 3-panel tall display (approx. 100” x 60” or 8.5 ft. x 5 ft.). Designed for portable, rental, and production environments, this system delivers exceptional image quality and ease of setup with included panels, processor, rigging, cabling, and video software (computer not included).
American DJ EVS3-5X3 Competitive Differences
- Includes 15x EVS3 LED video panels with 3.91mm pixel pitch and 65,536 pixels/m²
- Comes complete with all required power and data cabling
- NovaStar VX400 video processor for seamless playback and media control
- MediaMaster Express software license included for advanced content playback
- Rugged build with front and rear serviceable panels and corner protection
- Can be flown or ground stacked using included rigging bars
American DJ EVS3-5X3 Description
The
EVS3-5X3 system is an ideal LED wall solution for medium to large indoor events, such as concerts, conferences, exhibitions, or houses of worship. The included
EVS3 panels feature a 3.91mm pixel pitch, 3-in-1 SMD2121 LEDs, and a resolution of 128x128 per panel to deliver sharp, vivid visuals. With a total of 15 panels arranged in a 5x3 grid, this system offers an expansive viewing area of approximately 8.5 ft. wide by 5 ft. tall.
Designed with convenience in mind, the EVS3 panels are lightweight, easy to handle, and feature both front and rear access for serviceability. The package also includes a NovaStar VX400 processor for high-quality video signal handling and a full license for Arkaos MediaMaster Express for real-time control and playback. All necessary cabling and five single-panel rigging bars are included for quick deployment.
Perfect for rental houses, AV integrators, or production teams, the EVS3-5X3 system provides a flexible and complete LED video wall solution that is powerful, portable, and reliable for temporary use only.
EVS3-5X3 Features
- Complete 5x3 LED video wall system (Approx. 8.5 ft. x 5 ft.)
- 3.91mm pixel pitch with 128x128 resolution per panel
- 3-in-1 RGB SMD2121 LED technology
- Front & rear serviceable with corner protectors
- Includes NovaStar VX400 processor and video software
- Includes rigging bars for vertical stacking or hanging
- Data and power cables included for quick setup
EVS3-5X3 Specifications
- Panel Count: 15x EVS3 LED Panels
- Panel Dimensions: 19.68” x 19.68” x 2.96” (500 x 500 x 75mm)
- Panel Weight: 16.5 lbs each
- Total Wall Size: Approx. 100” x 60” (8.5 ft. x 5 ft.)
- Pixel Pitch: 3.91mm
- Pixel Density: 128 x 128 per panel (65,536 pixels per sq. meter)
- Brightness: 800 NITS
- Viewing Angle: 160° horizontal / 140° vertical
- Contrast Ratio: 5000:1
- Gray Scale: ≥14-bit
- Refresh Rate: 3840Hz
- Max Power Consumption: 120W per panel
- Average Power Consumption: 48W per panel
- Service Access: Front and Rear
- IP Rating: IP20 (Front & Back)

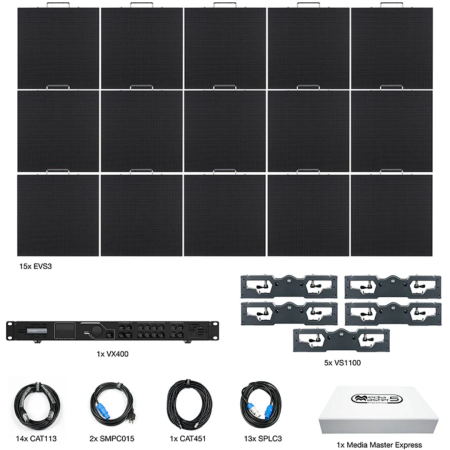

EVS3-5X3 Package Contents
- 15x EVS3 LED Video Panels
- 14x CAT6PRO3 – 3 ft. Cabinet-to-Cabinet Data Link Cables
- 1x CAT6S25FC – 25 ft. Processor-to-Cabinet Data Link Cable
- 13x SPLC3 – 3 ft. Power Link Cables
- 2x SMPC15 – 15 ft. Power to Edison Cables
- 1x NovaStar VX400 Video Processor
- 5x VSRB1 – Single Panel Rigging / Ground Stack Bars
- 1x MediaMaster Express Video Software License
Note: Computer not included. This system is intended for temporary use only and is not rated for permanent installations.
ADJ EVS3-5X3
(American DJ EVS3 5X3)
